Interpump PUMP WK8 R

SKU 3G-ITP-01792

Brand
Interpump
Item
PUMP WK8 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
80 L/min
Pressure
100 bar
Power
15.3 kW
Speed
1000 RPM
Weight
35 kg
Dimensions
405 mm
Power
20.8 HP
Flow (US)
21.1 GPM
Pressure
10 MPa
Pressure
1450 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump PUMP WK8 R delivers reliable industrial pumping performance with 15.3 kW power and 80 L/min flow capacity. Operating at 1000 RPM, this Italian-engineered pump generates 100 bar pressure, making it ideal for high-pressure applications across manufacturing, construction, and hydraulic systems. Weighing 35 kg with compact 405 mm dimensions, the unit offers efficient integration into existing equipment setups. The WK8 R's robust construction ensures consistent operation in demanding industrial environments. Available from 3G Electric Singapore, an Interpump distributor offering genuine parts and technical support.

Spare Parts & Repair Kits

Official WK8 parts list — 840 parts, 74 available in catalog

Official Parts List

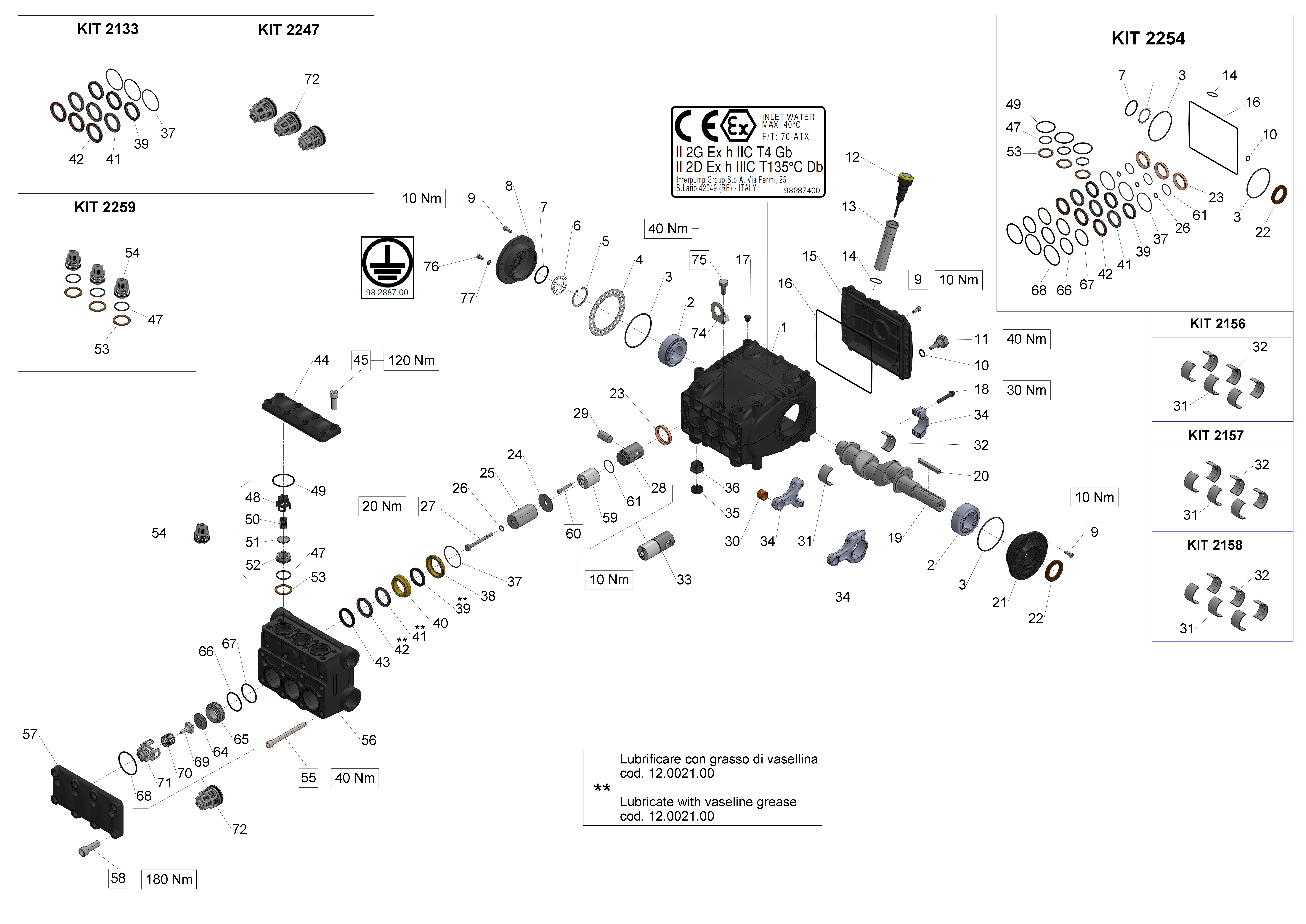

Exploded Diagram — Male shaft (key) - GASView full size
WK8 — Male shaft (key) - GAS

Repair Kits — Order These for Routine Maintenance

KIT2133
KIT 2133*PACKING D.36 (70 KEB)
34213301×1Available
View
KIT2156
KIT 2156*CONROD BUSHING
34215601×1Available
View
KIT2157
KIT 2157*CONROD BUSHINGS +0,25
34215701×1Available
View
KIT2158
KIT 2158*CONROD BUSHINGS +0,50
34215801×1Available
View
KIT2247
KIT 2247 INLET VALVE
34224701×1Available
View
KIT2254
KIT 2254 CPL.SEAL D.36
34225401×1Available
View
KIT2259
View

Individual Components

PosCodeDescriptionQty
1
CRANKCASE WK8
70010022×1Available
View
2
TAPER ROLLER BEARING 33207/Q
91847700×2Available
View
3
O-RING D. 80.6X2.62 (3318)
90391500×2Available
View
4
SHIM 0.25 MM.
70220381×1Available
View
4
SHIM 0.1 MM.
70220081×1Available
View
5
CIRCLIP D.45 (ZJ45)
90075600×1Available
View
6
OIL SIGHT GLASS
70211801×1Available
View
7
O-RING 39,34X2,62 (3156)
90387700×1Available
View
8
BEARING COVER (OIL GLASS SIDE)
70150122×1Available
View
9
SCREW M6X16 UNI 5931 8.8 Z.
99185400×20Available
View
10
O-RING 13,95X2,62 (3056)
90383300×1Available
View
11
PLUG G3/8x13 TE22
98210050×1Available
View
12
OIL DIPSTICK D.21,5X70
98211500×1Available
View
13
DIP STICK TUBE
72210695×1Available
View
14
O-RING 25,12X1,78 (2100)
90360400×1Available
View
15
CRANKCASE COVER KT
70160622×1Available
View
16
OR D.190.17X2.62 NBR 70SH
90394200×1Available
View
17
PLUG D. 15
98200500×5Available
View
18
CONN.ROD BOLT M8X1X42
99312300×6Available
View
19
CRANKSHAFT C.26
70020635×1Available
View

Need multiple parts? Request a bundled quote

74 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official WK8 parts list — Industrial Pumps (Series 70)

Recommended Spare Parts

Spare Parts

PISTON GUIDE ROD

70050266

Valves

OUTLET VALVE COVER KT

70225115

Spare Parts

OIL SEAL D.35X52X7

90166800

Spare Parts

KIT 2133*PACKING D.36 (70 KEB)

34213301

SCREW M14X40 UNI5931 12.9 DACR. WK531

Accessories

SCREW M14X40 UNI5931 12.9 DACR. WK531

99485000

Spare Parts

KIT 2259*OUTLET VALVE (70 KT LP)

34225901

Spare Parts

O-RING 25,12X1,78 (2100)

90360400

Spare Parts

MANIFOLD FOR PISTON D. 36 SERIES KT

70126115

Valves

INNER VALVE GUIDE

36208651

Spare Parts

SPRING Dm. 16.0X37.0 INOX

94745100

Valves

SPHERICAL VALVE COMPLETE

36208502

Spare Parts

ANELLO PER ALBERO D.30 H.PACK

70226771
