Interpump PUMP WK6 R

Technical Documents

(1)
1 Technical Document Available
Sign in or create an account to download

Complete Solution

Need installation, maintenance, or a bundled quote?
Our engineers can help with product selection, system design, installation, and ongoing service — all from one partner.
InterpumpPumps & Compressors
Available

Interpump PUMP WK6 R

SKU 3G-ITP-01790

Brand
Interpump
Item
PUMP WK6 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
62 L/min
Pressure
100 bar
Power
11.84 kW
Speed
1000 RPM
Weight
35 kg
Dimensions
405 mm
Power
16.1 HP
Flow (US)
16.4 GPM
Pressure
10 MPa
Pressure
1450 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

PUMP WK6 R by Interpump delivers reliable industrial pumping performance with 11.84 kW power and 62 L/min flow capacity. Operating at 1000 RPM, this Italian-engineered pump achieves 100 bar pressure, making it suitable for high-pressure applications in manufacturing, construction, and hydraulic systems. Weighing 35 kg with compact 405 mm dimensions, the WK6 R offers efficient space utilization without compromising durability. Ideal for demanding industrial environments requiring consistent pressure and flow control, this industrial pump is available from 3G Electric Singapore, your Interpump distributor.

Spare Parts & Repair Kits

Official WK6 parts list — 758 parts, 66 available in catalog

Official Parts List

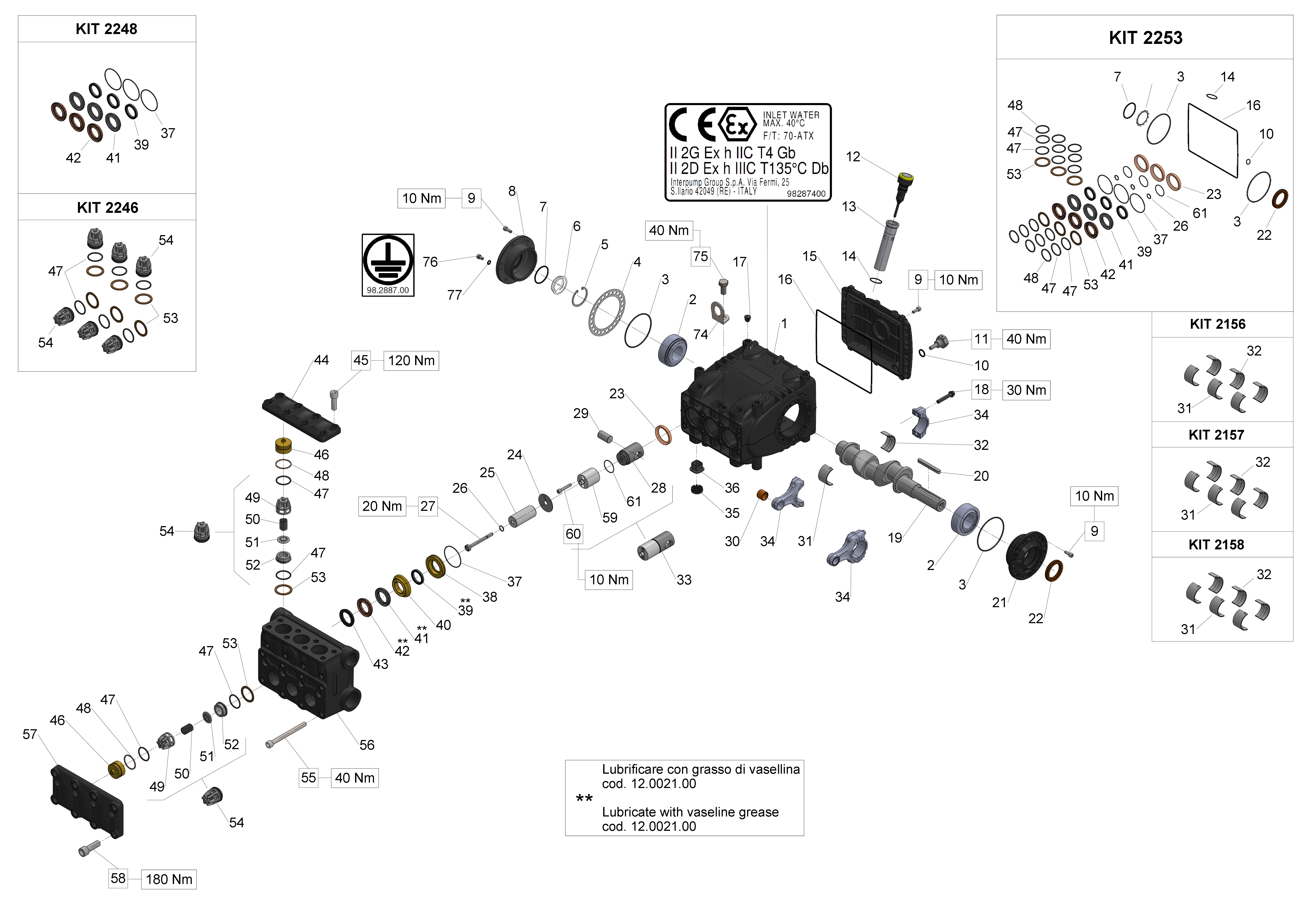

Exploded Diagram — Male shaft (key) - GASView full size
WK6 — Male shaft (key) - GAS

Repair Kits — Order These for Routine Maintenance

KIT2156
KIT 2156*CONROD BUSHING
34215601×1Available
View
KIT2157
KIT 2157*CONROD BUSHINGS +0,25
34215701×1Available
View
KIT2158
KIT 2158*CONROD BUSHINGS +0,50
34215801×1Available
View
KIT2246
KIT 2246 INTAKE/DELIVERY VALVE
34224601×1Available
View
KIT2248
KIT 2248 PACKING D. 32
34224801×1Available
View
KIT2253
KIT 2253 CPL.SEAL D.32
34225301×1Available
View

Individual Components

PosCodeDescriptionQty
1
CRANKCASE WK6
70010022×1Available
View
2
TAPER ROLLER BEARING 33207/Q
91847700×2Available
View
3
O-RING D. 80.6X2.62 (3318)
90391500×2Available
View
4
SHIM 0.25 MM.
70220381×1Available
View
4
SHIM 0.1 MM.
70220081×1Available
View
5
CIRCLIP D.45 (ZJ45)
90075600×1Available
View
6
OIL SIGHT GLASS
70211801×1Available
View
7
O-RING 39,34X2,62 (3156)
90387700×1Available
View
8
View
9
SCREW M6X16 UNI 5931 8.8 Z.
99185400×20Available
View
10
O-RING 13,95X2,62 (3056)
90383300×1Available
View
11
PLUG G3/8x13 TE22
98210050×1Available
View
12
OIL DIPSTICK D.21,5X70
98211500×1Available
View
13
DIP STICK TUBE
72210695×1Available
View
14
O-RING 25,12X1,78 (2100)
90360400×1Available
View
15
CRANKCASE COVER KT
70160622×1Available
View
16
OR D.190.17X2.62 NBR 70SH
90394200×1Available
View
17
PLUG D. 15
98200500×5Available
View
18
CONN.ROD BOLT M8X1X42
99312300×6Available
View
19
CRANKSHAFT C.26
70020635×1Available
View

Need multiple parts? Request a bundled quote

66 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official WK6 parts list — Industrial Pumps (Series 70)

Recommended Spare Parts

Spare Parts

ANELLO PER ALBERO D.30 H.PACK

70226771

Spare Parts

PISTON GUIDE ROD

70050266

Valves

OUTLET VALVE COVER KT

70225115

Spare Parts

OIL SEAL D.35X52X7

90166800

SCREW M14X40 UNI5931 12.9 DACR. WK531

Accessories

SCREW M14X40 UNI5931 12.9 DACR. WK531

99485000

Spare Parts

O-RING 25,12X1,78 (2100)

90360400

Spare Parts

KIT 2246 INTAKE/DELIVERY VALVE

34224601

Spare Parts

INTERMEDIATE RING D.32

70225270

Accessories

PLUG D. 15

98200500

Spare Parts

BEARING COVER (OIL GLASS SIDE)

70150122

Spare Parts

BEARING COVER (PTO SIDE)

70150022

Spare Parts

HEAD RING D.32

72100051
