Interpump PUMP WK159 R

SKU 3G-ITP-01807

Brand
Interpump
Item
PUMP WK159 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
106 L/min
Pressure
150 bar
Power
30.3 kW
Speed
1000 RPM
Weight
70 kg
Dimensions
526 mm
Power
41.2 HP
Flow (US)
28 GPM
Pressure
15 MPa
Pressure
2715 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

PUMP WK159 R by Interpump delivers robust performance for demanding industrial applications. This Italian-engineered industrial pump operates at 1000 rpm, generating 30.3 kW (41.2 hp) with a maximum pressure of 150 bar (15 MPa/2715 psi) and flow rate of 106 L/min. Weighing 70 kg with compact dimensions of 526mm, it suits high-pressure cleaning, hydraulic systems, and water jet cutting operations. The WK159 R provides reliable, efficient pumping solutions across manufacturing, construction, and maintenance sectors. Available from 3G Electric Singapore, your Interpump distributor.

Spare Parts & Repair Kits

Official WK159 parts list — 20 parts, 20 available in catalog

Official Parts List

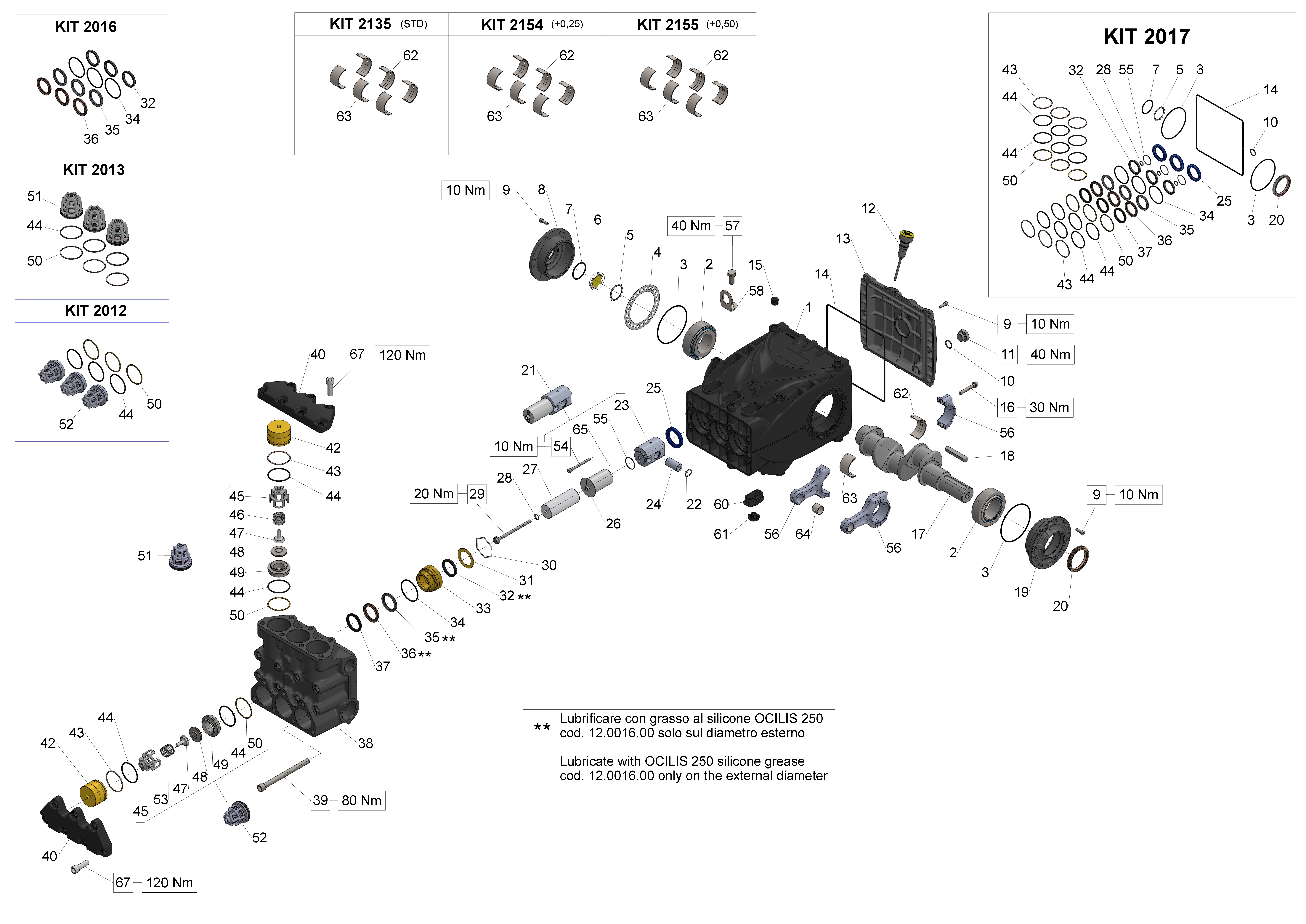

Exploded Diagram — Male shaft (key) - GASView full size
WK159 — Male shaft (key) - GAS

Individual Components

PosCodeDescriptionQty
4
SHIM 0.25 MM.
70220381×1Available
View
4
SHIM 0.1 MM.
70220081×1Available
View
5
CIRCLIP D.45 (ZJ45)
90075600×1Available
View
6
OIL SIGHT GLASS
70211801×1Available
View
7
O-RING 39,34X2,62 (3156)
90387700×1Available
View
9
SCREW M 6x18 UNI 5931
99186700×20Available
View
10
O-RING 17,12X2,62 (3068)
90384100×1Available
View
32
L.P. SEAL D.30X38X5.5
90276000×1Available
View
35
RESTOP RING D. 30
90277400×1Available
View
36
PACKING 30X45X7,5
90277000×1Available
View
37
HEAD RING D. 30
70100451×1Available
View
45
VALVE CAGE SS (71 SERIES)
36204505×6Available
View
47
INNER VALVE GUIDE
36208651×6Available
View
48
SPHERICAL VALVE COMPLETE
36208502×6Available
View
53
SPRING D.24.7X27
94754000×3Available
View
58
STAFFA DI SOLLEVAMENTO
71223074×1Available
View
61
PLUG CAP
71225951×3Available
View
67
View

Need multiple parts? Request a bundled quote

20 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official WK159 parts list — Industrial Pumps (Series 71)

Recommended Spare Parts

Spare Parts

PACKING 30X45X7,5

90277000

Valves

INNER VALVE GUIDE

36208651

Valves

SPHERICAL VALVE COMPLETE

36208502

SCREW M 6x18 UNI 5931 TT9061

Accessories

SCREW M 6x18 UNI 5931 TT9061

99186700

Spare Parts

SPRING D.24.7X27

94754000

Spare Parts

OIL SIGHT GLASS

70211801

Accessories

SCREW M12X35 UNI5931 12.31 DACR.

99429500

Accessories

PLUG CAP

71225951

Spare Parts

SHIM 0.25 MM.

70220381

Spare Parts

L.P. SEAL D.30X38X5.5

90276000

Spare Parts

O-RING 17,12X2,62 (3068)

90384100

Spare Parts

UPPER HALF CONROD BUSHING +0.25 (BIG END) S.70

90922100
