Interpump PUMP WW967C DX

Technical Documents

(1)
1 Technical Document Available
Sign in or create an account to download

Complete Solution

Need installation, maintenance, or a bundled quote?
Our engineers can help with product selection, system design, installation, and ongoing service — all from one partner.
InterpumpPumps & Compressors
Available

Interpump PUMP WW967C DX

SKU 3G-ITP-02255

Brand
Interpump
Item
PUMP WW967C DX
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
13 L/min
Pressure
250 bar
Power
6.25 kW
Speed
3400 RPM
Weight
8.7 kg
Dimensions
225 mm
Power
8.5 HP
Flow (US)
3.43 GPM
Pressure
25 MPa
Pressure
3600 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

POMPA WW967C DX by Interpump represents a reliable industrial pump solution engineered in Italy for demanding applications. Delivering 6.25 kW of power with a maximum pressure rating of 250 bar, this pump operates efficiently at 3,400 RPM and produces a flow rate of 13 L/min. Weighing just 8.7 kg with compact dimensions of 225 mm, the WW967C DX suits high-pressure cleaning systems, hydraulic applications, and industrial processing equipment. Its robust construction and consistent performance make it ideal for manufacturing facilities, automotive services, and agricultural operations. Available from 3G Electric Singapore, an Interpump distributor.

Spare Parts & Repair Kits

Official WW967 parts list — 264 parts, 67 available in catalog

Official Parts List

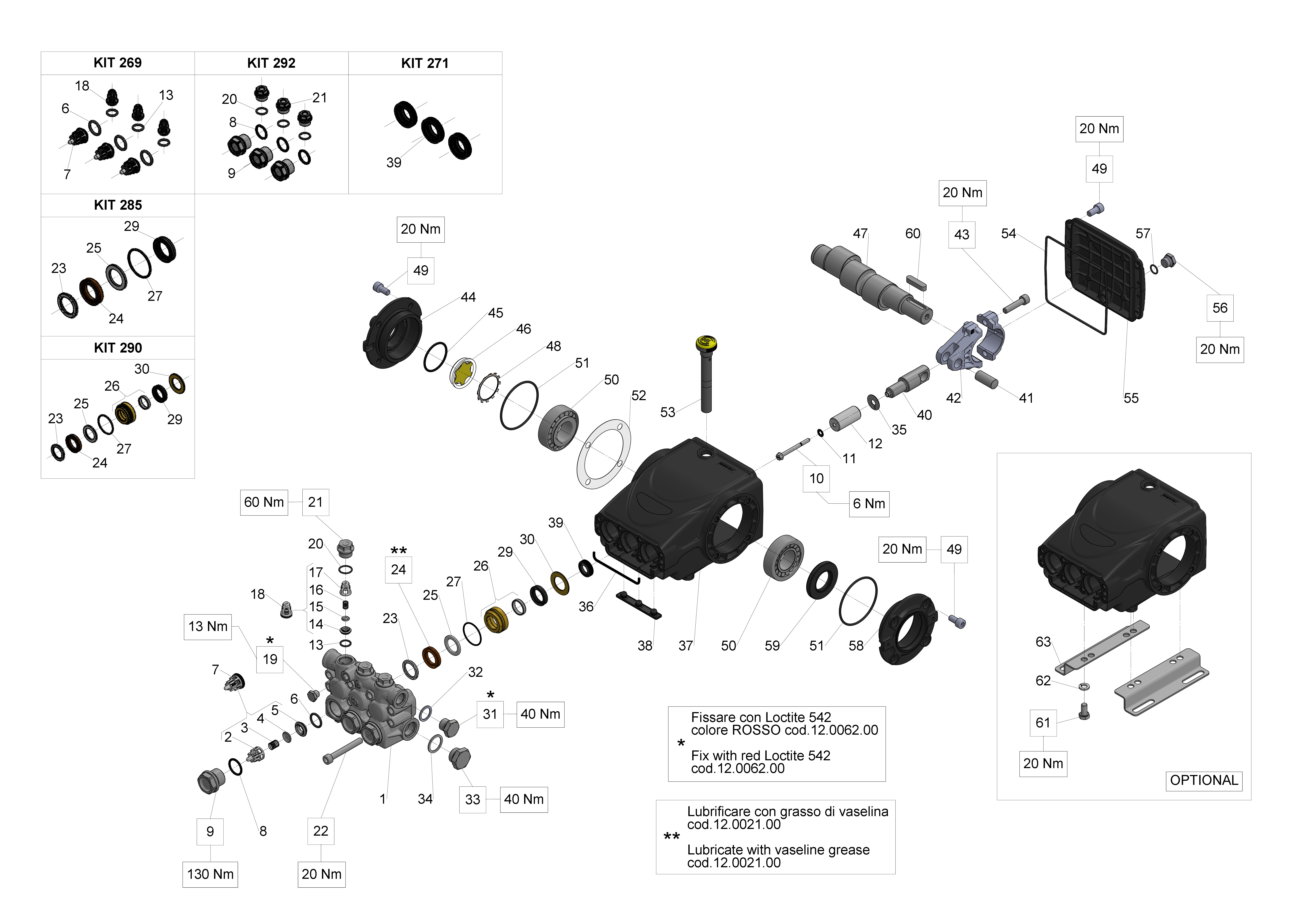

Exploded Diagram — Male shaft (key)View full size
WW967 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT269
KIT 269 INTAKE/DELIVERY VALVES
34026901×1Available
View
KIT271
View
KIT285
KIT 285 PACKING D.20 59 SERIES
34028501×1Available
View
KIT290
KIT 290 CPL.SEAL D.20 59 SER.
34029001×1Available
View
KIT292
View

Individual Components

PosCodeDescriptionQty
1
View
2
VALVE CAGE
36202551×3Available
View
3
SPRING D. 9,4X14,8
94737600×3Available
View
4
VALVE PLATE
36200176×3Available
View
5
VALVE SEAT
36200366×3Available
View
6
O-RING 17,12X2,62 (3068)
90384100×3Available
View
7
INTAKE/DELIVERY VALVE
36711501×3Available
View
8
O-RING 20,29X2,62(3081)
90384700×3Available
View
9
VALVE CAP M24X1,5X17 NICKEL
98222500×3Available
View
10
SCREW M05X55 SPEC. A2-70
99169000×3Available
View
12
PISTON D. 20X42
59040009×3Available
View
13
O-RING D. 12X2 (120-20)
90367400×3Available
View
14
VALVE SEAT
36211366×3Available
View
15
SPHERICAL VALVE
36211276×3Available
View
16
SPRING D.6.2x10.5 S.S.
94733300×3Available
View
17
VALVE CAGE
36211151×3Available
View
18
OUTLET VALVE
36719301×3Available
View
19
PLUG G 1/8 X 8 NICKEL
98196700×1Available
View
20
O-RING 15,60X1,78 (2062)
90359300×3Available
View

Need multiple parts? Request a bundled quote

67 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official WW967 parts list — Industrial Pumps (Series 44)

Recommended Spare Parts

Valves

VALVE PLATE

36200176

Spare Parts

CONNECTING ROD COMPLETE

59030001

Accessories

WASHER 21,5X27X1,5

96751400

Spare Parts

INLET NIPPLE G 3/4

36318251

Spare Parts

SPRING D.6.4X12.5

94733400

Spare Parts

NIPPLE D.3 G3/8F

36348970

Accessories

KEY 8(h9)X7X35 UNI 6604/A

91489200

Spare Parts

SHUTTER WITH HOSE FITTING

36334270

Accessories

SLIDE WASHER

36348651

Valves

VALVE CAP M24X1,5X17 NICKEL

98222500

Spare Parts

DETERGENT KNOB

36348451

Spare Parts

O-RING 8,73X1,78 - (108)

90358100
