Interpump PUMP WK155 R

SKU 3G-ITP-01805

Brand
Interpump
Item
PUMP WK155 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
55 L/min
Pressure
150 bar
Power
15.74 kW
Speed
1000 RPM
Weight
35 kg
Dimensions
405 mm
Power
21.4 HP
Flow (US)
14.5 GPM
Pressure
15 MPa
Pressure
2175 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump's PUMP WK155 R delivers reliable industrial pumping performance with 15.74 kW power output and 55 L/min flow capacity at 150 bar pressure. Built to withstand demanding applications in manufacturing, construction, and hydraulic systems, this Italian-engineered pump operates efficiently at 1000 RPM with robust construction weighing 35 kg. The compact 405 mm footprint makes integration straightforward in space-constrained installations. Ideal for medium-duty industrial operations requiring consistent pressure and flow delivery, the WK155 R combines durability with practical engineering. Available from 3G Electric Singapore, an Interpump distributor offering complete technical support and genuine spare parts for industrial pump solutions.

Spare Parts & Repair Kits

Official WK155 parts list — 617 parts, 66 available in catalog

Official Parts List

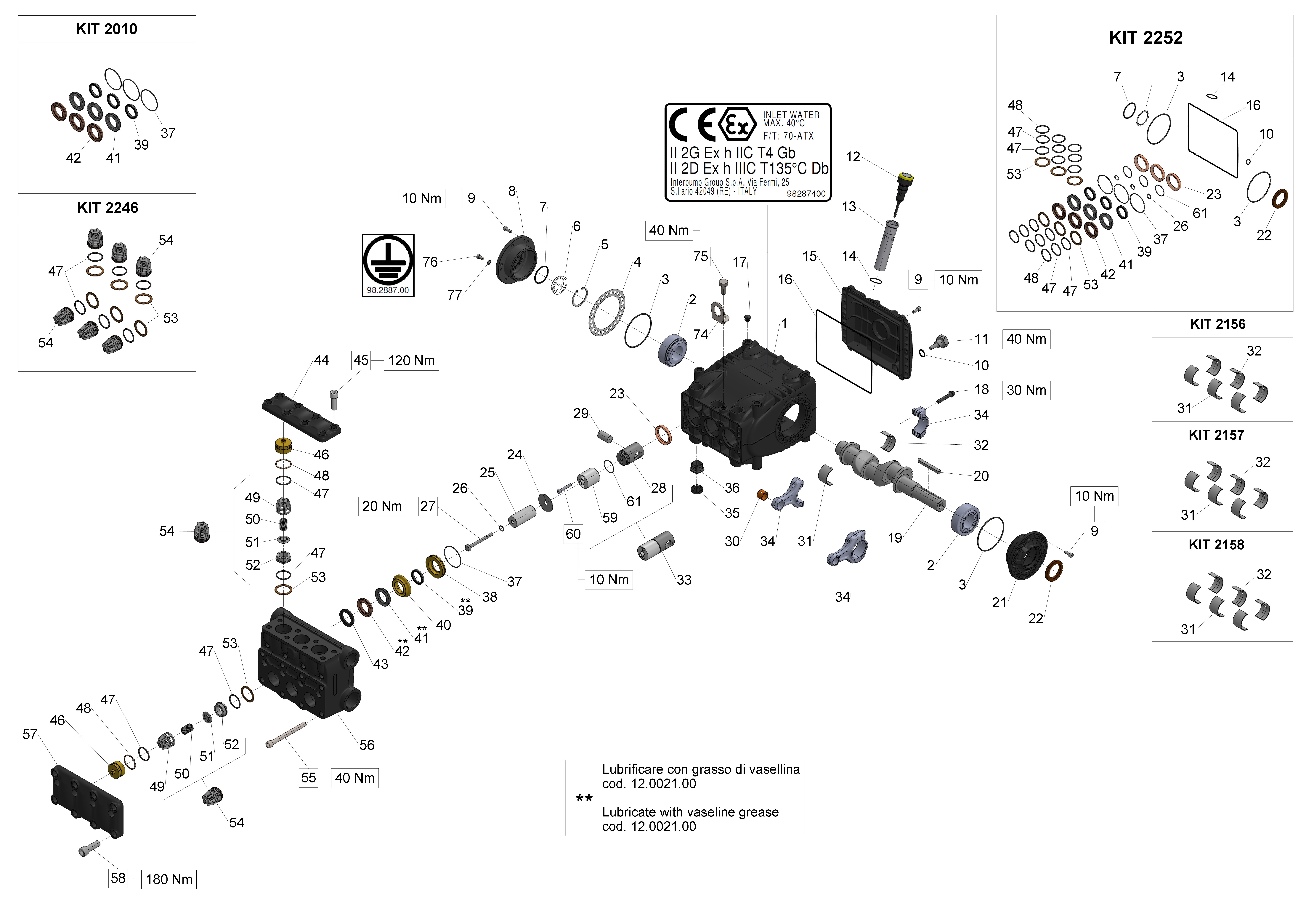

Exploded Diagram — Male shaft (key) - GASView full size
WK155 — Male shaft (key) - GAS

Repair Kits — Order These for Routine Maintenance

KIT2010
KIT 2010 SEALS D.30 (70KE)
34201001×1Available
View
KIT2156
KIT 2156*CONROD BUSHING
34215601×1Available
View
KIT2157
KIT 2157*CONROD BUSHINGS +0,25
34215701×1Available
View
KIT2158
KIT 2158*CONROD BUSHINGS +0,50
34215801×1Available
View
KIT2246
KIT 2246 INTAKE/DELIVERY VALVE
34224601×1Available
View
KIT2252
KIT 2252 PACKING D.30
34225201×1Available
View

Individual Components

PosCodeDescriptionQty
1
CRANKCASE WK155
70010022×1Available
View
2
TAPER ROLLER BEARING 33207/Q
91847700×2Available
View
3
O-RING D. 80.6X2.62 (3318)
90391500×2Available
View
4
SHIM 0.25 MM.
70220381×1Available
View
4
SHIM 0.1 MM.
70220081×1Available
View
5
CIRCLIP D.45 (ZJ45)
90075600×1Available
View
6
OIL SIGHT GLASS
70211801×1Available
View
7
O-RING 39,34X2,62 (3156)
90387700×1Available
View
8
BEARING COVER (OIL GLASS SIDE)
70150122×1Available
View
9
SCREW M6X16 UNI 5931 8.8 Z.
99185400×20Available
View
10
O-RING 13,95X2,62 (3056) WK155
90383300×1Available
View
11
PLUG G3/8x13 TE22
98210050×1Available
View
12
OIL DIPSTICK D.21,5X70
98211500×1Available
View
13
DIP STICK TUBE
72210695×1Available
View
14
O-RING 25,12X1,78 (2100)
90360400×1Available
View
15
CRANKCASE COVER KT
70160622×1Available
View
16
OR D.190.17X2.62 NBR 70SH
90394200×1Available
View
17
PLUG D. 15
98200500×5Available
View
18
CONN.ROD BOLT M8X1X42
99312300×6Available
View
19
CRANKSHAFT C.26
70020635×1Available
View

Need multiple parts? Request a bundled quote

66 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official WK155 parts list — Industrial Pumps (Series 70)

Recommended Spare Parts

Spare Parts

ANELLO PER ALBERO D.30 H.PACK

70226771

Spare Parts

PISTON GUIDE ROD

70050266

Valves

OUTLET VALVE COVER KT

70225115

Spare Parts

OIL SEAL D.35X52X7

90166800

Spare Parts

INTERMEDIATE RING D.30

70216470

SCREW M14X40 UNI5931 12.9 DACR. WK531

Accessories

SCREW M14X40 UNI5931 12.9 DACR. WK531

99485000

Spare Parts

O-RING 25,12X1,78 (2100)

90360400

Spare Parts

KIT 2246 INTAKE/DELIVERY VALVE

34224601

Spare Parts

MANIFOLD FOR PIST.D.28-30 NPT

70126815

Accessories

PLUG D. 15

98200500

Spare Parts

BEARING COVER (OIL GLASS SIDE)

70150122

Spare Parts

PACKING 30X45X7,5

90277000
