Interpump PUMP WK15 R

SKU 3G-ITP-01802

Brand
Interpump
Item
PUMP WK15 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
153 L/min
Pressure
120 bar
Power
35 kW
Speed
1000 RPM
Weight
70 kg
Dimensions
526 mm
Power
47.6 HP
Flow (US)
40 GPM
Pressure
12 MPa
Pressure
1740 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump's PUMP WK15 R delivers robust performance for demanding industrial applications. This Italian-engineered centrifugal pump operates at 1000 rpm, generating 35 kW (47.6 hp) with a flow rate of 153 L/min and maximum pressure of 120 bar (1740 psi). Weighing 70 kg, the compact unit measures 526 mm in overall length, making it suitable for manufacturing, food processing, and chemical industries. The WK15 R handles continuous duty cycles with reliable pressure delivery and efficient flow management. Available from 3G Electric Singapore, this industrial pump offers dependable solution for high-pressure applications requiring consistent performance and durability.

Spare Parts & Repair Kits

Official WK15 parts list — 20 parts, 20 available in catalog

Official Parts List

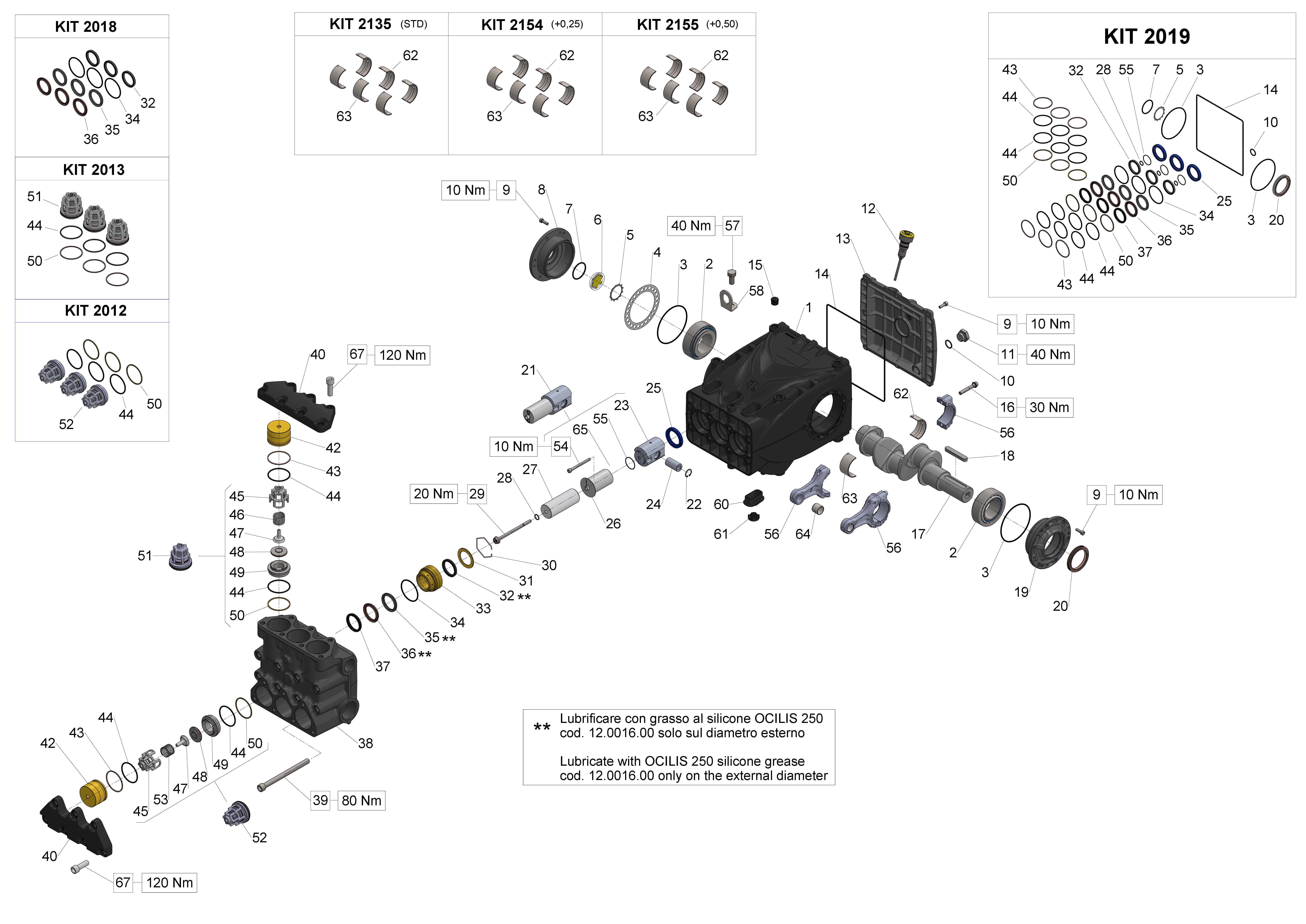

Exploded Diagram — Male shaft (key) - GASView full size
WK15 — Male shaft (key) - GAS

Individual Components

PosCodeDescriptionQty
4
SHIM 0.25 MM.
70220381×1Available
View
4
SHIM 0.1 MM.
70220081×1Available
View
5
CIRCLIP D.45 (ZJ45)
90075600×1Available
View
6
OIL SIGHT GLASS
70211801×1Available
View
7
O-RING 39,34X2,62 (3156)
90387700×1Available
View
9
SCREW M 6x18 UNI 5931
99186700×20Available
View
10
O-RING 17,12X2,62 (3068)
90384100×1Available
View
32
PACKING D.36X44X5,5 L.P.
90279800×1Available
View
35
RESTOP RING D.36X48X3/6
90281800×1Available
View
36
PACKING 36X48X6
90282000×1Available
View
37
HEAD RING D.36
71100251×1Available
View
45
VALVE CAGE SS (71 SERIES)
36204505×6Available
View
47
INNER VALVE GUIDE
36208651×6Available
View
48
SPHERICAL VALVE COMPLETE
36208502×6Available
View
53
SPRING D.24.7X27
94754000×3Available
View
58
STAFFA DI SOLLEVAMENTO
71223074×1Available
View
61
PLUG CAP
71225951×3Available
View
67
View

Need multiple parts? Request a bundled quote

20 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official WK15 parts list — Industrial Pumps (Series 71)

Recommended Spare Parts

Valves

INNER VALVE GUIDE

36208651

Valves

SPHERICAL VALVE COMPLETE

36208502

SCREW M 6x18 UNI 5931 TT9061

Accessories

SCREW M 6x18 UNI 5931 TT9061

99186700

Spare Parts

SPRING D.24.7X27

94754000

Spare Parts

OIL SIGHT GLASS

70211801

Accessories

SCREW M12X35 UNI5931 12.31 DACR.

99429500

Spare Parts

RESTOP RING D.36X48X3/6

90281800

Accessories

PLUG CAP

71225951

Spare Parts

SHIM 0.25 MM.

70220381

Spare Parts

O-RING 17,12X2,62 (3068)

90384100

Spare Parts

UPPER HALF CONROD BUSHING +0.25 (BIG END) S.70

90922100

Valves

VALVE CAGE SS (71 SERIES)

36204505
