Interpump PUMP E3C2513 L

SKU 3G-ITP-00705

Brand
Interpump
Item
PUMP E3C2513 L
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
13 L/min
Pressure
250 bar
Power
6.18 kW
Speed
1750 RPM
Weight
9.5 kg
Dimensions
265 mm
Power
8.4 HP
Flow (US)
3.43 GPM
Pressure
25 MPa
Pressure
3625 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump PUMP E3C2513 L is a robust Italian-engineered industrial pump designed for high-pressure applications. Operating at 1750 RPM, this unit delivers 13 liters per minute at 250 bar (3625 psi), making it ideal for hydraulic systems, cleaning equipment, and industrial machinery requiring consistent performance. With 6.18 kW (8.4 hp) power output and compact dimensions of 265mm, the E3C2513 L weighs just 9.5 kg, ensuring efficient installation in space-constrained environments. Widely used in construction, manufacturing, and pressure-washing industries, this reliable pump meets stringent operational demands. Available from 3G Electric Singapore, an Interpump distributor.

Spare Parts & Repair Kits

Official E3C2513 parts list — 112 parts, 67 available in catalog

Official Parts List

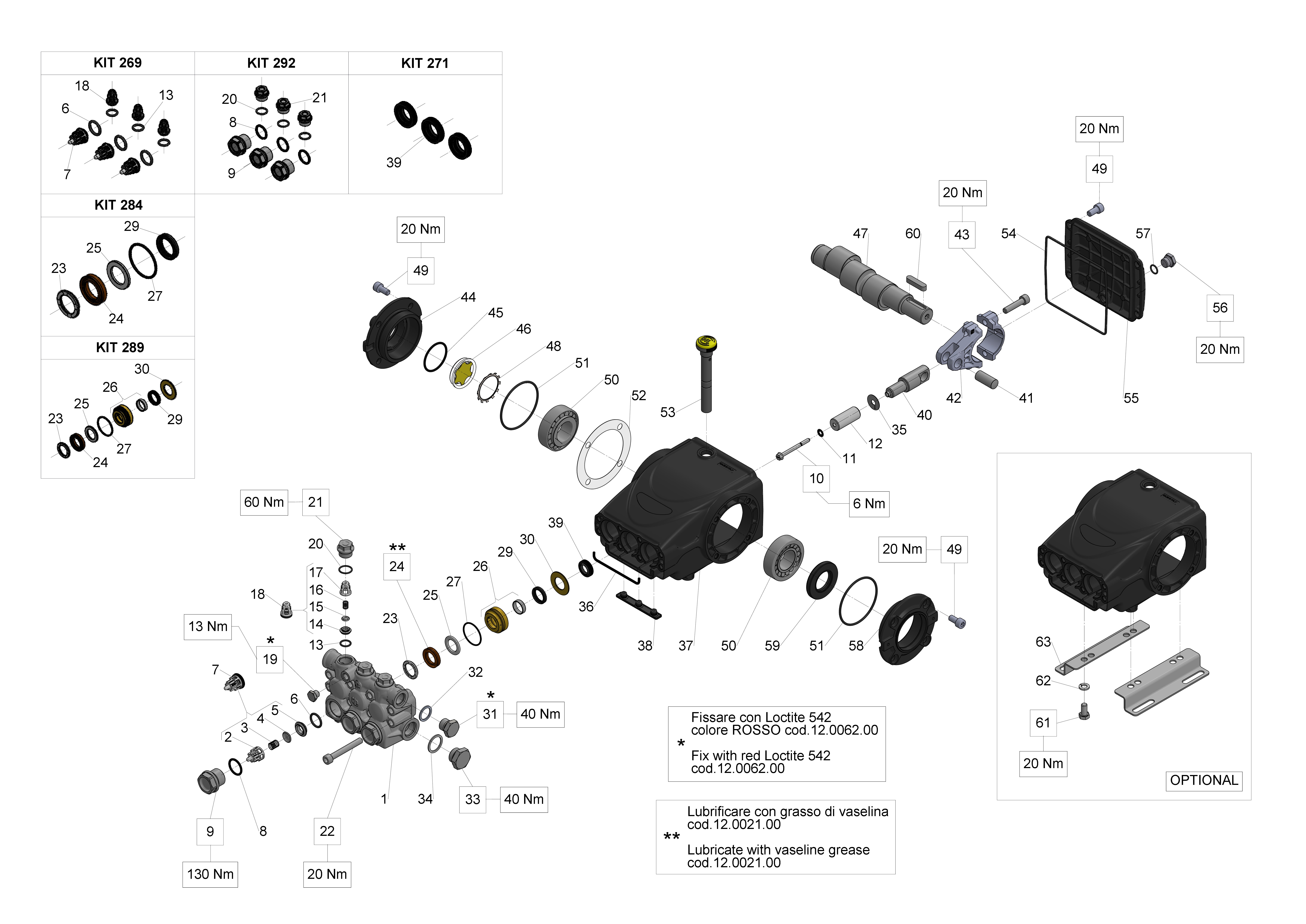

Exploded Diagram — Male shaft (key)View full size
E3C2513 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT269
KIT 269 INTAKE/DELIVERY VALVES
34026901×1Available
View
KIT271
View
KIT284
KIT 284 PACKING D.18 59 SERIES
34028401×1Available
View
KIT289
KIT 289 CPL.SEAL D.18 59 SER.
34028901×1Available
View
KIT292
View

Individual Components

PosCodeDescriptionQty
1
View
2
VALVE CAGE
36202551×3Available
View
3
SPRING D. 9,4X14,8
94737600×3Available
View
4
VALVE PLATE
36200176×3Available
View
5
VALVE SEAT
36200366×3Available
View
6
O-RING 17,12X2,62 (3068)
90384100×3Available
View
7
INTAKE/DELIVERY VALVE
36711501×3Available
View
8
O-RING 20,29X2,62(3081)
90384700×3Available
View
9
VALVE CAP M24X1,5X17 NICKEL
98222500×3Available
View
10
SCREW M05X55 SPEC. A2-70
99169000×3Available
View
12
PISTON D.18X42
58040209×3Available
View
13
O-RING D. 12X2 (120-20)
90367400×3Available
View
14
VALVE SEAT
36211366×3Available
View
15
SPHERICAL VALVE
36211276×3Available
View
16
SPRING D.6.2x10.5 S.S.
94733300×3Available
View
17
VALVE CAGE
36211151×3Available
View
18
OUTLET VALVE
36719301×3Available
View
19
PLUG G 1/8 X 8 NICKEL
98196700×1Available
View
20
O-RING 15,60X1,78 (2062)
90359300×3Available
View

Need multiple parts? Request a bundled quote

67 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official E3C2513 parts list — Industrial Pumps (Series 59 E3)

Recommended Spare Parts

Valves

VALVE PLATE

36200176

Spare Parts

SEAL D. 18X24X5 L.P.

90265000

Spare Parts

CONNECTING ROD COMPLETE

59030001

Accessories

WASHER 21,5X27X1,5

96751400

Spare Parts

INLET NIPPLE G 3/4

36318251

Spare Parts

SPRING D.6.4X12.5

94733400

Spare Parts

NIPPLE D.3 G3/8F

36348970

Accessories

KEY 8(h9)X7X35 UNI 6604/A

91489200

Spare Parts

SHUTTER WITH HOSE FITTING

36334270

Spare Parts

RING FOR SEAL D.18

59210770

Accessories

SLIDE WASHER

36348651

Spare Parts

O-RING 8,73X1,78 - (108)

90358100
