Interpump PUMP E1D1811 R

Technical Documents

(1)
1 Technical Document Available
Sign in or create an account to download

Complete Solution

Need installation, maintenance, or a bundled quote?
Our engineers can help with product selection, system design, installation, and ongoing service — all from one partner.
InterpumpPumps & Compressors
Available

Interpump PUMP E1D1811 R

SKU 3G-ITP-00296

Brand
Interpump
Item
PUMP E1D1811 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
11 L/min
Pressure
180 bar
Power
3.75 kW
Speed
2800 RPM
Weight
5 kg
Dimensions
194.5 mm
Power
5.1 HP
Flow (US)
2.91 GPM
Pressure
18 MPa
Pressure
2610 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

PUMP E1D1811 R by Interpump is a robust industrial pump engineered for demanding applications requiring high-pressure performance. Delivering 3.75 kW at 2800 RPM, this Italian-manufactured unit achieves 180 bar (18 MPA) pressure with 11 L/min flow capacity, making it ideal for cleaning systems, hydraulic applications, and industrial processing equipment. Weighing just 5 kg with compact dimensions, the E1D1811 R offers efficient space utilization without compromising durability. Available from 3G Electric Singapore, an Interpump distributor, this pump delivers reliable performance for manufacturing facilities and service operations across Southeast Asia.

Spare Parts & Repair Kits

Official E1D1811 parts list — 112 parts, 67 available in catalog

Official Parts List

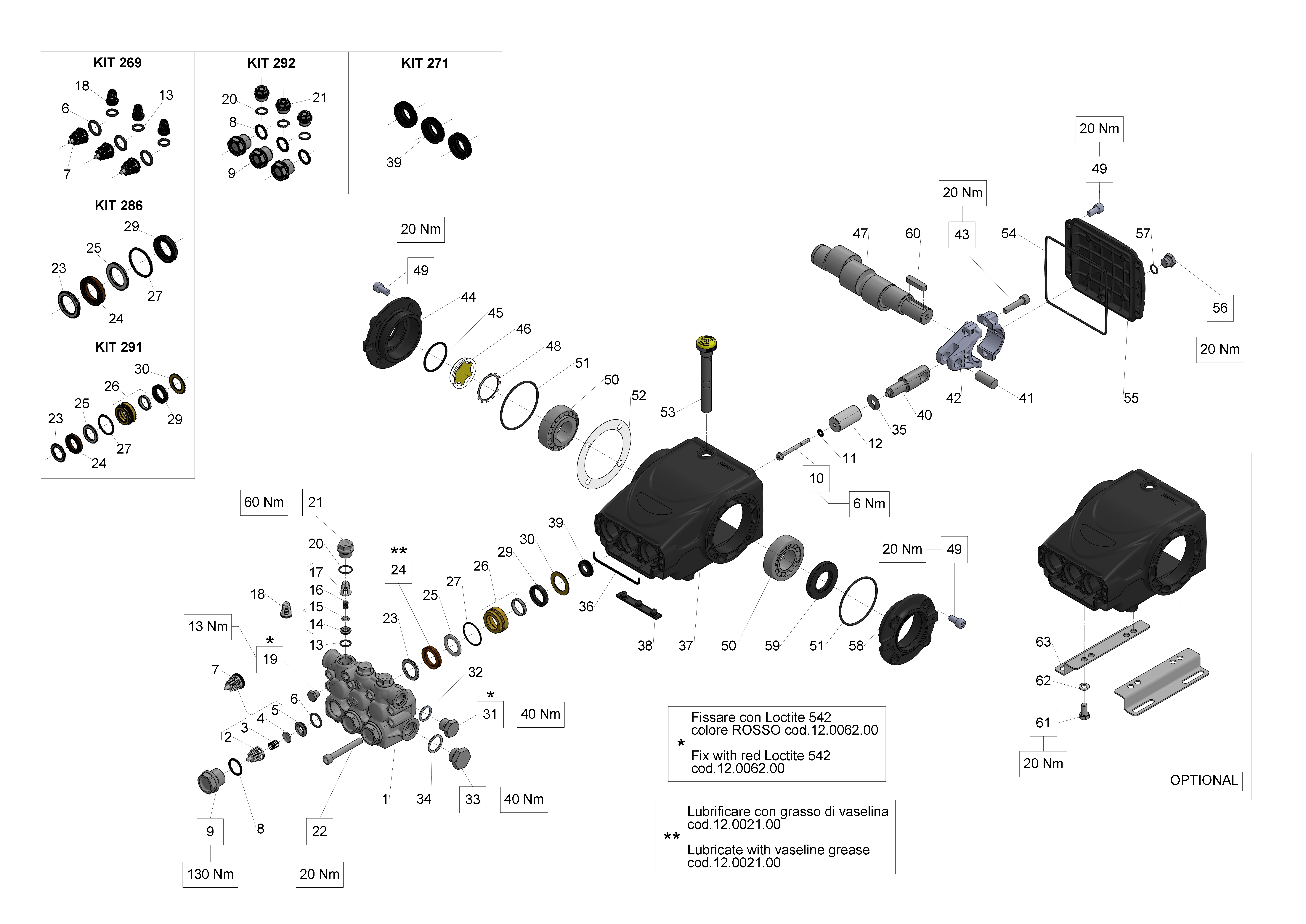

Exploded Diagram — Male shaft (key)View full size
E1D1811 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT269
KIT 269 INTAKE/DELIVERY VALVES
34026901×1Available
View
KIT271
View
KIT286
KIT 286 PACKING D.22 58 SERIES
34028601×1Available
View
KIT291
View
KIT292
View

Individual Components

PosCodeDescriptionQty
1
View
2
VALVE CAGE
36202551×3Available
View
3
SPRING D. 9,4X14,8
94737600×3Available
View
4
VALVE PLATE
36200176×3Available
View
5
VALVE SEAT
36200366×3Available
View
6
O-RING 17,12X2,62 (3068)
90384100×3Available
View
7
INTAKE/DELIVERY VALVE
36711501×3Available
View
8
O-RING 20,29X2,62(3081)
90384700×3Available
View
9
VALVE CAP M24X1,5X17 NICKEL
98222500×3Available
View
10
SCREW M05X55 SPEC. A2-70
99169000×3Available
View
12
PISTON D.22X42
59040109×3Available
View
13
O-RING D. 12X2 (120-20)
90367400×3Available
View
14
VALVE SEAT
36211366×3Available
View
15
SPHERICAL VALVE
36211276×3Available
View
16
SPRING D.6.2x10.5 S.S.
94733300×3Available
View
17
VALVE CAGE
36211151×3Available
View
18
OUTLET VALVE
36719301×3Available
View
19
PLUG G 1/8 X 8 NICKEL
98196700×1Available
View
20
O-RING 15,60X1,78 (2062)
90359300×3Available
View

Need multiple parts? Request a bundled quote

67 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official E1D1811 parts list — Industrial Pumps (Series 53 E1)

Recommended Spare Parts

Valves

VALVE PLATE

36200176

Spare Parts

CONNECTING ROD COMPLETE

59030001

Accessories

WASHER 21,5X27X1,5

96751400

Spare Parts

INLET NIPPLE G 3/4

36318251

Spare Parts

SPRING D.6.4X12.5

94733400

Spare Parts

NIPPLE D.3 G3/8F

36348970

Accessories

KEY 8(h9)X7X35 UNI 6604/A

91489200

Spare Parts

SHUTTER WITH HOSE FITTING

36334270

Accessories

SLIDE WASHER

36348651

Valves

VALVE CAP M24X1,5X17 NICKEL

98222500

Spare Parts

DETERGENT KNOB

36348451

Spare Parts

O-RING 8,73X1,78 - (108)

90358100
