Interpump PUMP WW909 R BR.+P.E.FL.+VALVE

SKU 3G-ITP-02208

Brand
Interpump
Item
PUMP WW909 R BR.+P.E.FL.+VALVE
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
13 L/min
Pressure
100 bar
Power
2.57 kW
Speed
3400 RPM
Weight
5.2 kg
Dimensions
177 mm
Power
3.5 HP
Flow (US)
3.43 GPM
Pressure
10 MPa
Pressure
1450 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump's WW909 R BR.+P.E.FL.+VALVE is a compact industrial pump delivering 2.57 kW of power at 3400 RPM, ideal for high-pressure applications requiring up to 100 bar (1450 PSI). With a flow rate of 13 L/min, this Italian-engineered pump excels in cleaning systems, agricultural equipment, and manufacturing operations. Weighing just 5.2 kg, it offers efficient performance in confined spaces. Available from 3G Electric Singapore, an Interpump distributor, this reliable industrial pump meets demanding operational requirements across various sectors.

Spare Parts & Repair Kits

Official WW909 parts list — 97 parts, 30 available in catalog

Official Parts List

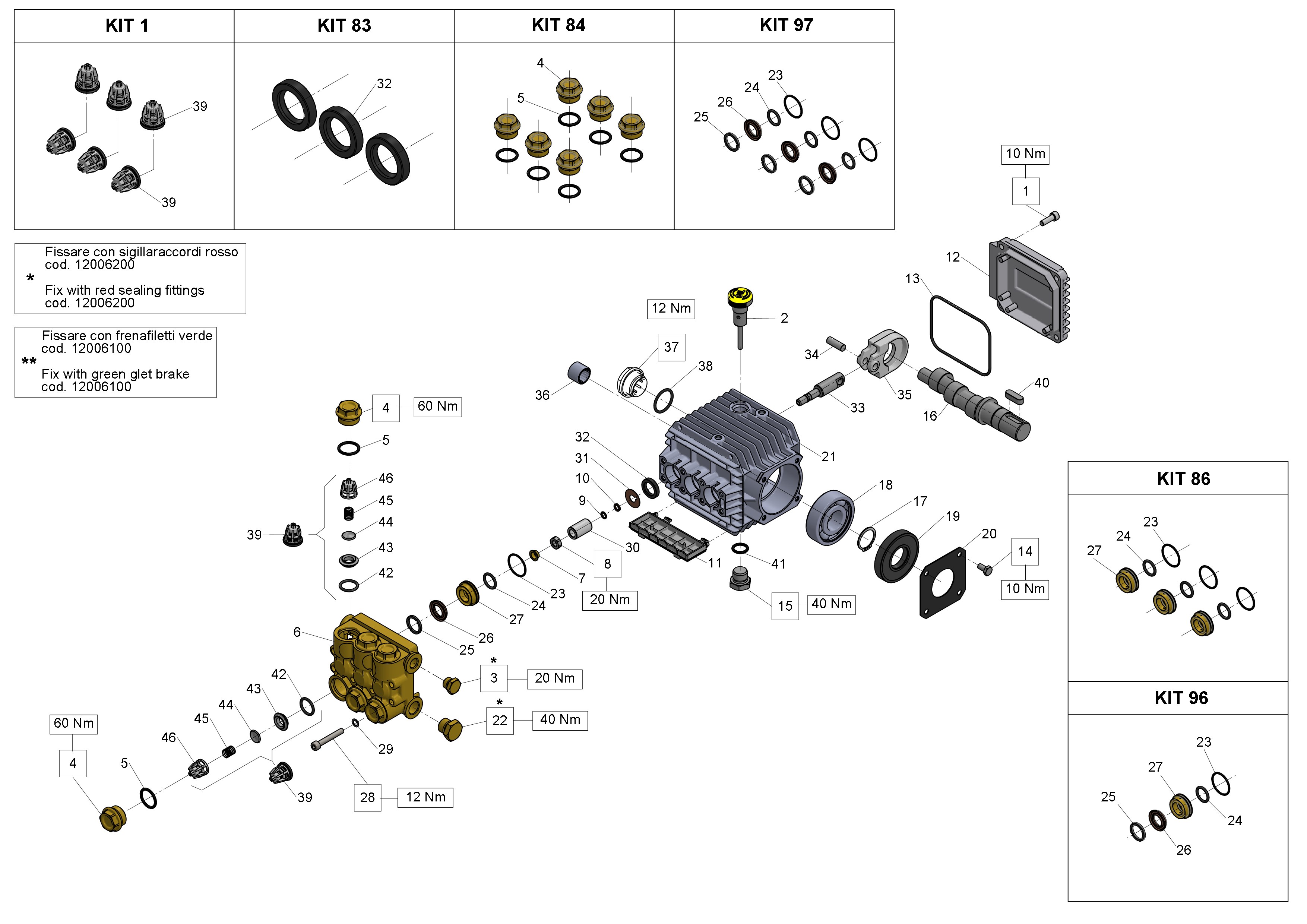

Exploded Diagram — Male shaft (key) - GASView full size
WW909 — Male shaft (key) - GAS

Repair Kits — Order These for Routine Maintenance

KIT1
KIT 1 INTAKE/DELIVERY VALVE
34000101×1Available
View

Individual Components

PosCodeDescriptionQty
1
SCREW M 6x18 UNI 5931 WW909
99186700×4Available
View
2
OIL DIP-STICK G3/8X51
98210300×1Available
View
3
PLUG G1/4X9
98204100×1Available
View
5
O-RING 20,29X2,62(3081)
90384700×6Available
View
7
WASHER D. 8
44211570×3Available
View
8
NUT M8X13X5
92221600×3Available
View
9
O-RING D. 5,28X1,78 (2021)
90357300×3Available
View
10
ANTI-EXTRUSION RING
90502200×3Available
View
14
SCREW M 6x12 UNI 5739 WW909
99180700×4Available
View
15
PLUG G3/8x13 TE22
98210050×1Available
View
17
CIRCLIP D. 25 UNI 7435
90063500×1Available
View
19
OIL SEAL D.25X62X10
90164100×1Available
View
20
CRANKCASE COVER
50150074×1Available
View
22
PLUG G3/8X13
98210000×1Available
View
23
O-RING 25,12X1,78 (2100)
90360400×3Available
View
24
O-RING 15,08X2,62 (119)
90383500×3Available
View
25
HEAD RING D. 15
51100051×3Available
View
26
PACKING D. 15X25X5/3,1
90262000×3Available
View
29
WASHER 6,4X10X0,7
96693800×8Available
View
37
OIL SIGHT GLASS ASSY G3/4
47221301×1Available
View

Need multiple parts? Request a bundled quote

30 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official WW909 parts list — Industrial Pumps (Series 51)
