Interpump PUMP WW1511 R

Technical Documents

(1)
1 Technical Document Available
Sign in or create an account to download

Complete Solution

Need installation, maintenance, or a bundled quote?
Our engineers can help with product selection, system design, installation, and ongoing service — all from one partner.
InterpumpPumps & Compressors
Available

Interpump PUMP WW1511 R

SKU 3G-ITP-02284

Brand
Interpump
Item
PUMP WW1511 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
11 L/min
Pressure
150 bar
Power
3.3 kW
Speed
2800 RPM
Weight
5.2 kg
Dimensions
177 mm
Power
4.5 HP
Flow (US)
2.9 GPM
Pressure
15 MPa
Pressure
2175 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump's PUMP WW1511 R industrial pump delivers reliable performance across demanding applications. Engineered in Italy, this compact unit generates 3.3 kW of power while maintaining a 150 bar operating pressure, making it ideal for high-pressure cleaning, agricultural spraying, and industrial washing systems. With a flow rate of 11 L/min and robust construction weighing just 5.2 kg, the WW1511 R combines efficiency with portability. Operating at 2800 RPM, this industrial pump meets rigorous performance standards. Available from 3G Electric Singapore, an Interpump distributor, ensuring genuine products and comprehensive technical support for businesses throughout Singapore.

Spare Parts & Repair Kits

Official WW1511 parts list — 97 parts, 30 available in catalog

Official Parts List

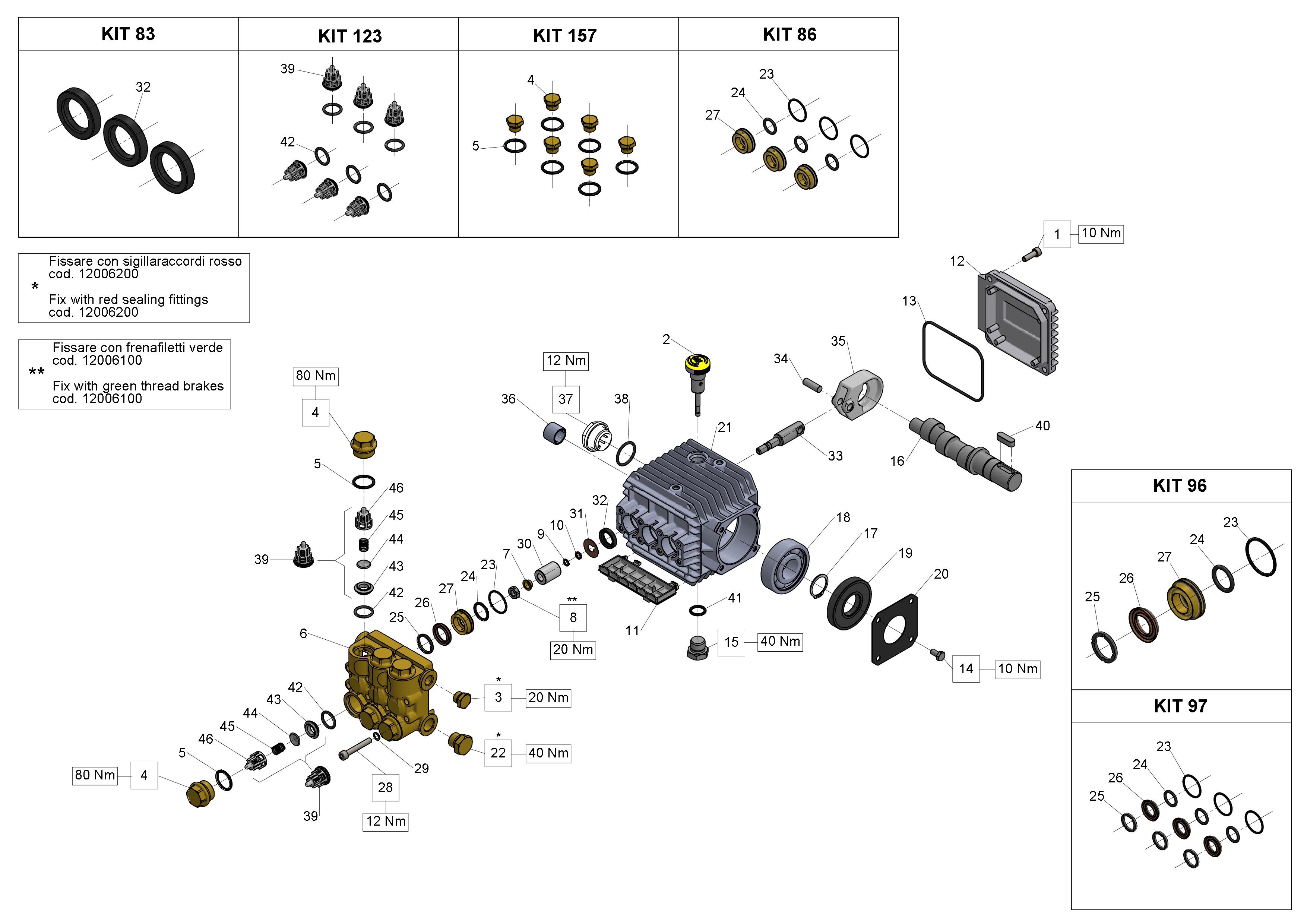

Exploded Diagram — Male shaft (key) - GASView full size
WW1511 — Male shaft (key) - GAS

Repair Kits — Order These for Routine Maintenance

KIT123
KIT 123 INTAKE/DELIVERY VALVE
34012301×1Available
View

Individual Components

PosCodeDescriptionQty
1
SCREW M 6x18 UNI 5931 WW1511
99186700×4Available
View
2
OIL DIP-STICK G3/8X51
98210300×1Available
View
3
PLUG G1/4X9
98204100×1Available
View
5
O-RING 20,29X2,62(3081)
90384700×6Available
View
7
WASHER D. 8
44211570×3Available
View
8
NUT M8X13X5
92221600×3Available
View
9
O-RING D. 5,28X1,78 (2021)
90357300×3Available
View
10
ANTI-EXTRUSION RING
90502200×3Available
View
14
SCREW M 6x12 UNI 5739 WW1511
99180700×4Available
View
15
PLUG G3/8x13 TE22
98210050×1Available
View
17
CIRCLIP D. 25 UNI 7435
90063500×1Available
View
19
OIL SEAL D.25X62X10
90164100×1Available
View
20
CRANKCASE COVER
50150074×1Available
View
22
PLUG G3/8X13
98210000×1Available
View
23
O-RING 25,12X1,78 (2100)
90360400×3Available
View
24
O-RING 15,08X2,62 (119)
90383500×3Available
View
25
HEAD RING D. 15
51100051×3Available
View
26
PACKING D. 15X25X5/3,1
90262000×3Available
View
29
WASHER 6,4X10X0,7
96693800×8Available
View
37
OIL SIGHT GLASS ASSY G3/4
47221301×1Available
View

Need multiple parts? Request a bundled quote

30 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official WW1511 parts list — Industrial Pumps (Series 53 E1)

Recommended Spare Parts

Accessories

NUT M8X13X5

92221600

Spare Parts

ANTI-EXTRUSION RING

90502200

Spare Parts

CRANKCASE COVER

50150074

Accessories

WASHER 6,4X10X0,7

96693800

Accessories

CIRCLIP D. 25 UNI 7435

90063500

Spare Parts

O-RING 17,12X2,62 (3068)

90384100

Valves

VALVE CAGE

36202551

Spare Parts

O-RING 25,12X1,78 (2100)

90360400

Spare Parts

OIL SIGHT GLASS ASSY G3/4

47221301

Spare Parts

OIL SEAL D.25X62X10

90164100

Spare Parts

PACKING D. 15X25X5/3,1

90262000

Spare Parts

O-RING D. 5,28X1,78 (2021)

90357300
