Interpump PUMP WS 162 R

SKU 3G-ITP-01886

Brand
Interpump
Item
PUMP WS 162 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
18 L/min
Pressure
160 bar
Power
5.51 kW
Speed
1450 RPM
Weight
14.5 kg
Dimensions
317.5 mm
Power
7.35 HP
Flow (US)
4.75 GPM
Pressure
16 MPa
Pressure
2320 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump's PUMP WS 162 R delivers reliable performance for demanding industrial applications. This Italian-engineered pump generates 5.51 kW of power, producing 18 L/min flow at an impressive 160 bar pressure rating. Built for durability, the unit weighs just 14.5 kg and operates at 1450 RPM, making it suitable for cleaning systems, pressure washing equipment, and manufacturing processes requiring consistent high-pressure output. Available from 3G Electric Singapore, the WS 162 R combines compact dimensions with robust engineering to meet industrial pump requirements across various sectors.

Spare Parts & Repair Kits

Official WS162 parts list — 186 parts, 67 available in catalog

Official Parts List

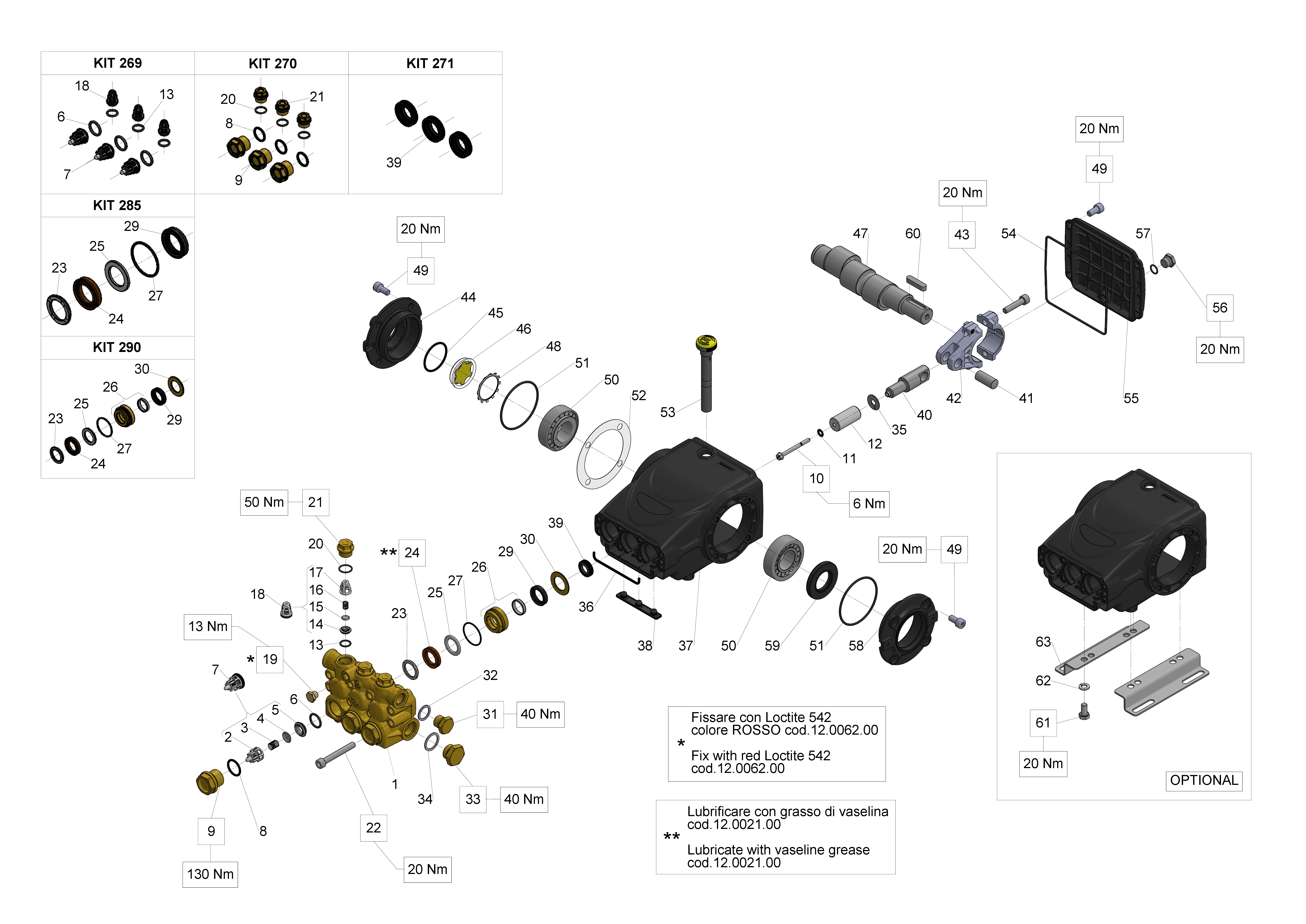

Exploded Diagram — Male shaft (key)View full size
WS162 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT269
KIT 269 INTAKE/DELIVERY VALVES
34026901×1Available
View
KIT270
KIT 270 VALVE PLUGS 58 SERIES
34027001×1Available
View
KIT271
View
KIT285
KIT 285 PACKING D.20 59 SERIES
34028501×1Available
View
KIT290
KIT 290 CPL.SEAL D.20 59 SER.
34029001×1Available
View

Individual Components

PosCodeDescriptionQty
1
View
2
VALVE CAGE
36202551×3Available
View
3
SPRING D. 9,4X14,8
94737600×3Available
View
4
VALVE PLATE
36200176×3Available
View
5
VALVE SEAT
36200366×3Available
View
6
O-RING 17,12X2,62 (3068)
90384100×3Available
View
7
INTAKE/DELIVERY VALVE
36711501×3Available
View
8
O-RING 20,29X2,62(3081)
90384700×3Available
View
9
VALVE CAP M24X1,5X17
98222600×3Available
View
10
SCREW M05X55 SPEC. A2-70
99169000×3Available
View
12
PISTON D. 20X42
59040009×3Available
View
13
O-RING D. 12X2 (120-20)
90367400×3Available
View
14
VALVE SEAT
36211366×3Available
View
15
SPHERICAL VALVE
36211276×3Available
View
16
SPRING D.6.2x10.5 S.S.
94733300×3Available
View
17
VALVE CAGE
36211151×3Available
View
18
OUTLET VALVE
36719301×3Available
View
19
PLUG G1/8X8
98196600×1Available
View
20
O-RING 15,60X1,78 (2062)
90359300×3Available
View

Need multiple parts? Request a bundled quote

67 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official WS162 parts list — Industrial Pumps (Series 47)

Recommended Spare Parts

Accessories

CIRCLIP D. 62 UNI 7437

90085000

Valves

VALVE PLATE

36200176

Accessories

PLUG G3/8X13

98210000

Spare Parts

CONNECTING ROD COMPLETE

59030001

Accessories

WASHER 21,5X27X1,5

96751400

Spare Parts

INLET NIPPLE G 3/4

36318251

Spare Parts

SPRING D.6.4X12.5

94733400

Valves

VALVE CAP M18X1,5X10

98213700

Spare Parts

NIPPLE D.3 G3/8F

36348970

Accessories

KEY 8(h9)X7X35 UNI 6604/A

91489200

Spare Parts

SHUTTER WITH HOSE FITTING

36334270

Spare Parts

O-RING 8,73X1,78 - (108)

90358100
