Interpump PUMP WS 102 R

SKU 3G-ITP-01821

Brand
Interpump
Item
PUMP WS 102 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
21 L/min
Pressure
100 bar
Power
4.04 kW
Speed
1450 RPM
Weight
14.5 kg
Dimensions
317.5 mm
Power
5.5 HP
Flow (US)
5.55 GPM
Pressure
10 MPa
Pressure
1450 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

PUMP WS 102 R is a robust industrial pump manufactured by Interpump, engineered for demanding applications requiring reliable pressure management. Delivering 4.04 kW of power with a maximum pressure of 100 bar, this Italian-made unit operates at 1450 RPM, producing a steady flow of 21 litres per minute. Weighing 14.5 kg, its compact dimensions make it suitable for hydraulic systems, manufacturing equipment, and water treatment facilities. The WS 102 R performs consistently in industrial cleaning, pressure washing, and fluid transfer operations across diverse sectors. Available from 3G Electric Singapore, this pump combines proven Interpump engineering with efficient, long-lasting performance for industrial operations.

Spare Parts & Repair Kits

Official WS102 parts list — 245 parts, 64 available in catalog

Official Parts List

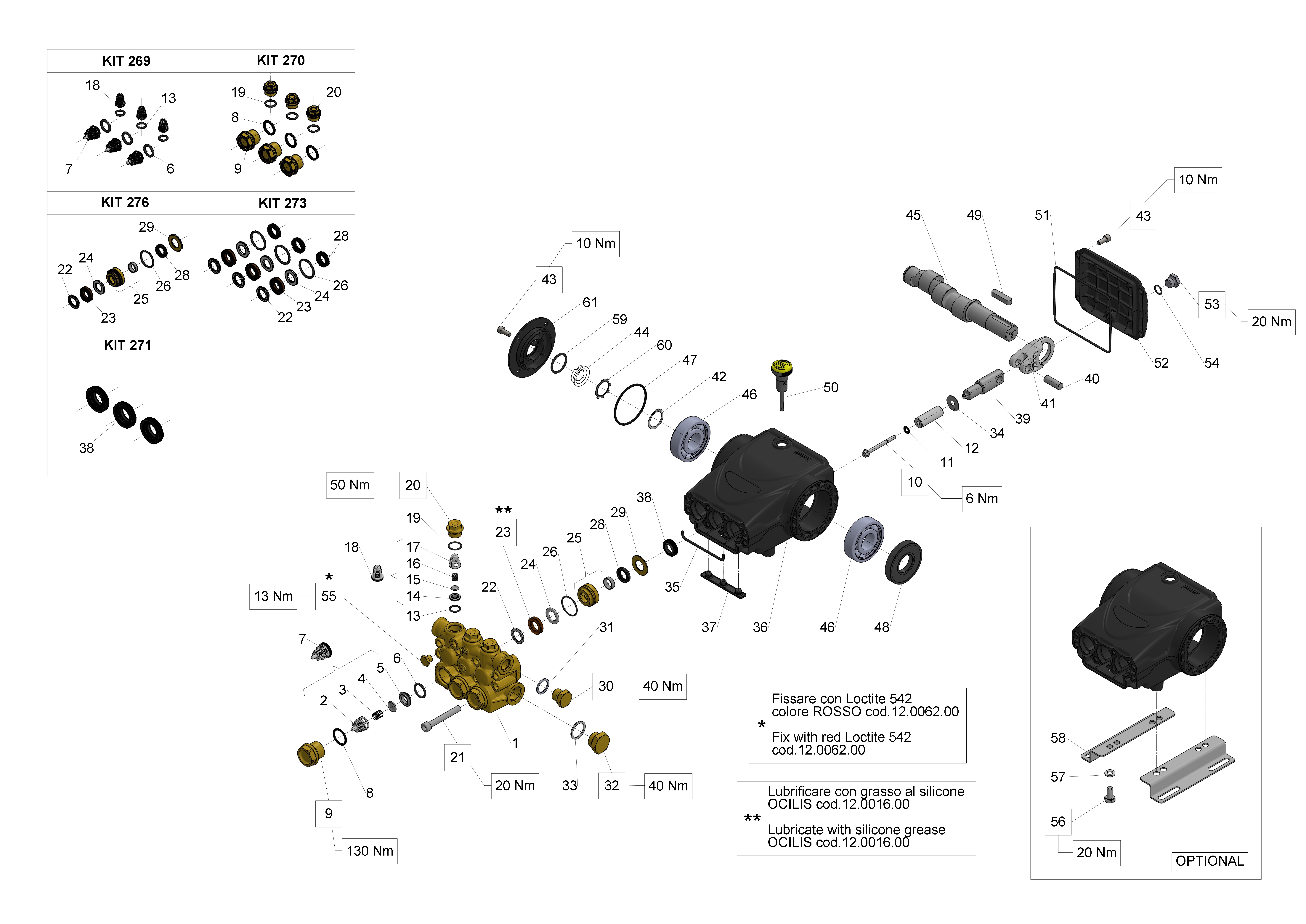

Exploded Diagram — Male shaft (key)View full size
WS102 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT269
KIT 269 INTAKE/DELIVERY VALVES
34026901×1Available
View
KIT270
KIT 270 VALVE PLUGS 58 SERIES
34027001×1Available
View
KIT271
View
KIT273
KIT 273 PACKING D.15 58 SERIES
34027301×1Available
View

Individual Components

PosCodeDescriptionQty
1
View
2
VALVE CAGE
36202551×3Available
View
3
SPRING D. 9,4X14,8
94737600×3Available
View
4
VALVE PLATE
36200176×3Available
View
5
VALVE SEAT
36200366×3Available
View
6
O-RING 17,12X2,62 (3068)
90384100×3Available
View
7
INTAKE/DELIVERY VALVE
36711501×3Available
View
8
O-RING 20,29X2,62(3081)
90384700×3Available
View
9
VALVE CAP M24X1,5X17
98222600×3Available
View
10
SCREW M05X55 SPEC. A2-70
99169000×3Available
View
12
PISTON D.15X42
58040109×3Available
View
13
O-RING D. 12X2 (120-20)
90367400×3Available
View
14
VALVE SEAT
36211366×3Available
View
15
SPHERICAL VALVE
36211276×3Available
View
16
SPRING D.6.2x10.5 S.S.
94733300×3Available
View
17
VALVE CAGE
36211151×3Available
View
18
OUTLET VALVE
36719301×3Available
View
19
O-RING 15,60X1,78 (2062)
90359300×3Available
View
20
VALVE CAP M18X1,5X10
98213700×3Available
View

Need multiple parts? Request a bundled quote

64 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official WS102 parts list — Industrial Pumps (Series 47)

Recommended Spare Parts

Spare Parts

O-RING 8,73X1,78 - (108)

90358100

Spare Parts

PUMP CRANKCASE

58010022

Accessories

CIRCLIP D. 25 UNI 7435

90063500

Spare Parts

SPONGE GASKET D.3X94

58210582

Valves

VALVE PLATE

36200176

Accessories

PLUG G3/8X13

98210000

Spare Parts

HEAD RING D.15 HP

63101051

Accessories

WASHER 21,5X27X1,5

96751400

Spare Parts

INLET NIPPLE G 3/4

36318251

Spare Parts

O-RING 26,70X1,78 (2106)

90360600

Spare Parts

SPRING D.6.4X12.5

94733400

Accessories

WASHER 10,5X16X1

96710400
