Interpump PUMP W950 R

SKU 3G-ITP-01511

Brand
Interpump
Item
PUMP W950 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
9.5 L/min
Pressure
165 bar
Power
2.94 kW
Speed
1750 RPM
Weight
7.9 kg
Dimensions
225 mm
Power
4 HP
Flow (US)
2.5 GPM
Pressure
16.5 MPa
Pressure
2400 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump PUMP W950 R is a reliable industrial pump delivering 2.94 kW of power at 1750 RPM, engineered for demanding applications requiring consistent performance. Operating at maximum pressure of 165 bar (2400 PSI), this Italian-manufactured unit produces 9.5 L/min flow rate, making it suitable for cleaning systems, water treatment, and industrial processing. Weighing 7.9 kg with compact dimensions of 225 mm, the W950 R offers efficient space utilization in tight installations. Available from 3G Electric Singapore, an Interpump distributor, this industrial pump provides durability and precision engineering for critical operational requirements across manufacturing and facility maintenance sectors.

Spare Parts & Repair Kits

Official W950 parts list — 177 parts, 64 available in catalog

Official Parts List

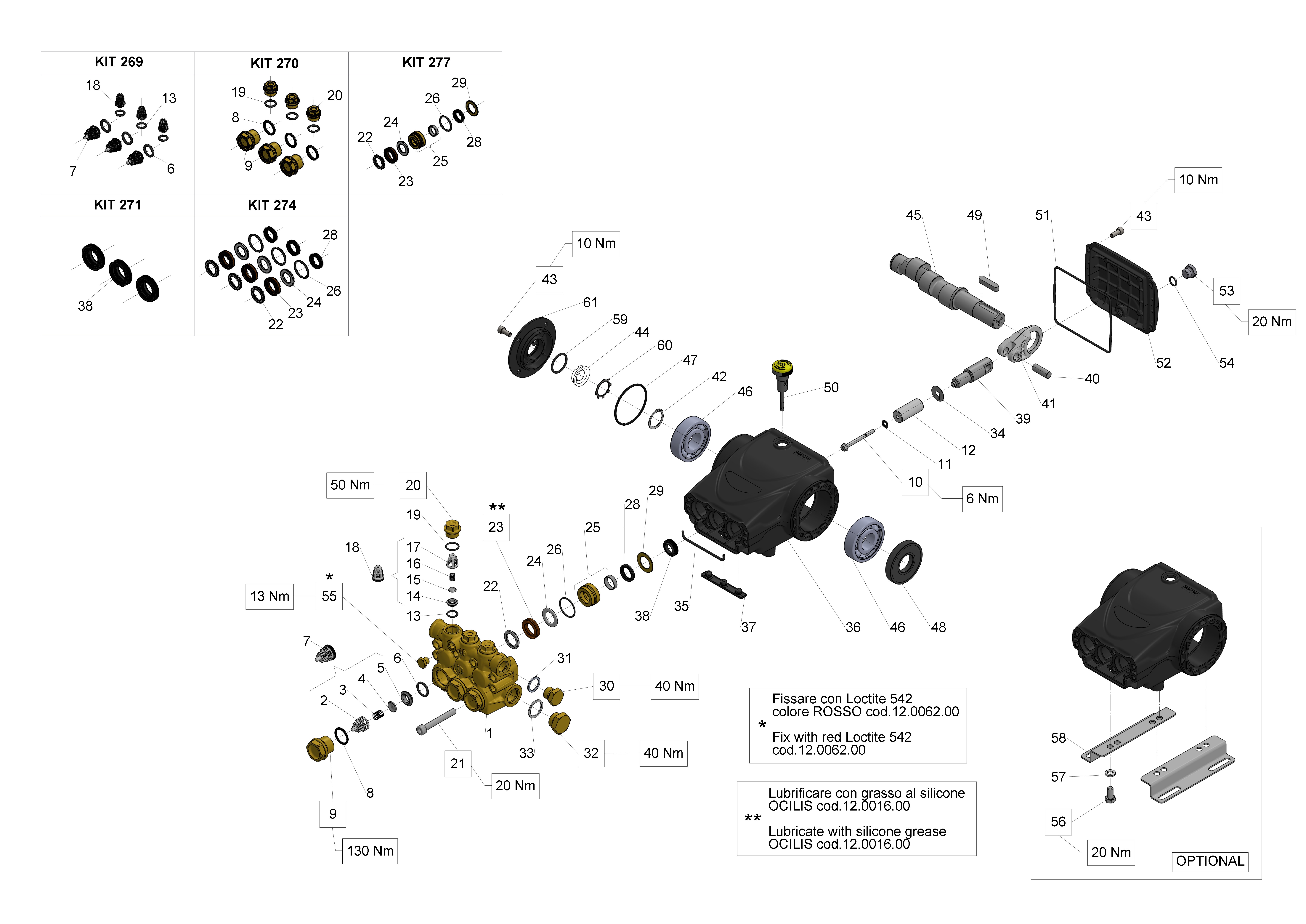

Exploded Diagram — Male shaft (key)View full size
W950 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT269
KIT 269 INTAKE/DELIVERY VALVES
34026901×1Available
View
KIT270
KIT 270 VALVE PLUGS 58 SERIES
34027001×1Available
View
KIT271
View
KIT274
KIT 274 PACKING D.18 58 SERIES
34027401×1Available
View

Individual Components

PosCodeDescriptionQty
1
View
2
VALVE CAGE
36202551×3Available
View
3
SPRING D. 9,4X14,8
94737600×3Available
View
4
VALVE PLATE
36200176×3Available
View
5
VALVE SEAT
36200366×3Available
View
6
O-RING 17,12X2,62 (3068)
90384100×3Available
View
7
INTAKE/DELIVERY VALVE
36711501×3Available
View
8
O-RING 20,29X2,62(3081)
90384700×3Available
View
9
VALVE CAP M24X1,5X17
98222600×3Available
View
10
SCREW M05X55 SPEC. A2-70
99169000×3Available
View
12
PISTON D.18X42
58040209×3Available
View
13
O-RING D. 12X2 (120-20)
90367400×3Available
View
14
VALVE SEAT
36211366×3Available
View
15
SPHERICAL VALVE
36211276×3Available
View
16
SPRING D.6.2x10.5 S.S.
94733300×3Available
View
17
VALVE CAGE
36211151×3Available
View
18
OUTLET VALVE
36719301×3Available
View
19
O-RING 15,60X1,78 (2062)
90359300×3Available
View
20
VALVE CAP M18X1,5X10
98213700×3Available
View

Need multiple parts? Request a bundled quote

64 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official W950 parts list — Industrial Pumps (Series 44)

Recommended Spare Parts

Spare Parts

PUMP CRANKCASE

58010022

Accessories

CIRCLIP D. 25 UNI 7435

90063500

Spare Parts

SPONGE GASKET D.3X94

58210582

Valves

VALVE PLATE

36200176

Accessories

PLUG G3/8X13

98210000

Spare Parts

SEAL D. 18X24X5 L.P.

90265000

Spare Parts

RING FOR SEAL D.18

58210870

Accessories

WASHER 21,5X27X1,5

96751400

Spare Parts

INLET NIPPLE G 3/4

36318251

Spare Parts

O-RING 26,70X1,78 (2106)

90360600

Spare Parts

SPRING D.6.4X12.5

94733400

Spare Parts

O-RING 8,73X1,78 - (108)

90358100
