Interpump PUMP W922 R

Technical Documents

(1)
1 Technical Document Available
Sign in or create an account to download

Complete Solution

Need installation, maintenance, or a bundled quote?
Our engineers can help with product selection, system design, installation, and ongoing service — all from one partner.
InterpumpPumps & Compressors
Available

Interpump PUMP W922 R

SKU 3G-ITP-01495

Brand
Interpump
Item
PUMP W922 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
21 L/min
Pressure
200 bar
Power
7.35 kW
Speed
1750 RPM
Weight
14.5 kg
Dimensions
327 mm
Power
10 HP
Flow (US)
5.55 GPM
Pressure
20 MPa
Pressure
2900 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump PUMP W922 R is a robust industrial pump engineered for demanding applications requiring reliable pressure delivery. This Italian-manufactured unit delivers 7.35 kW of power with a flow rate of 21 liters per minute and maximum pressure of 200 bar, making it ideal for high-pressure cleaning, surface preparation, and industrial processing systems. Weighing 14.5 kg with compact dimensions of 327 mm, the W922 R operates at 1750 RPM and suits installations where space efficiency matters. Available from 3G Electric Singapore, this Interpump pump provides professional-grade performance for manufacturing, construction, and maintenance sectors across Southeast Asia.

Spare Parts & Repair Kits

Official W922 parts list — 129 parts, 63 available in catalog

Official Parts List

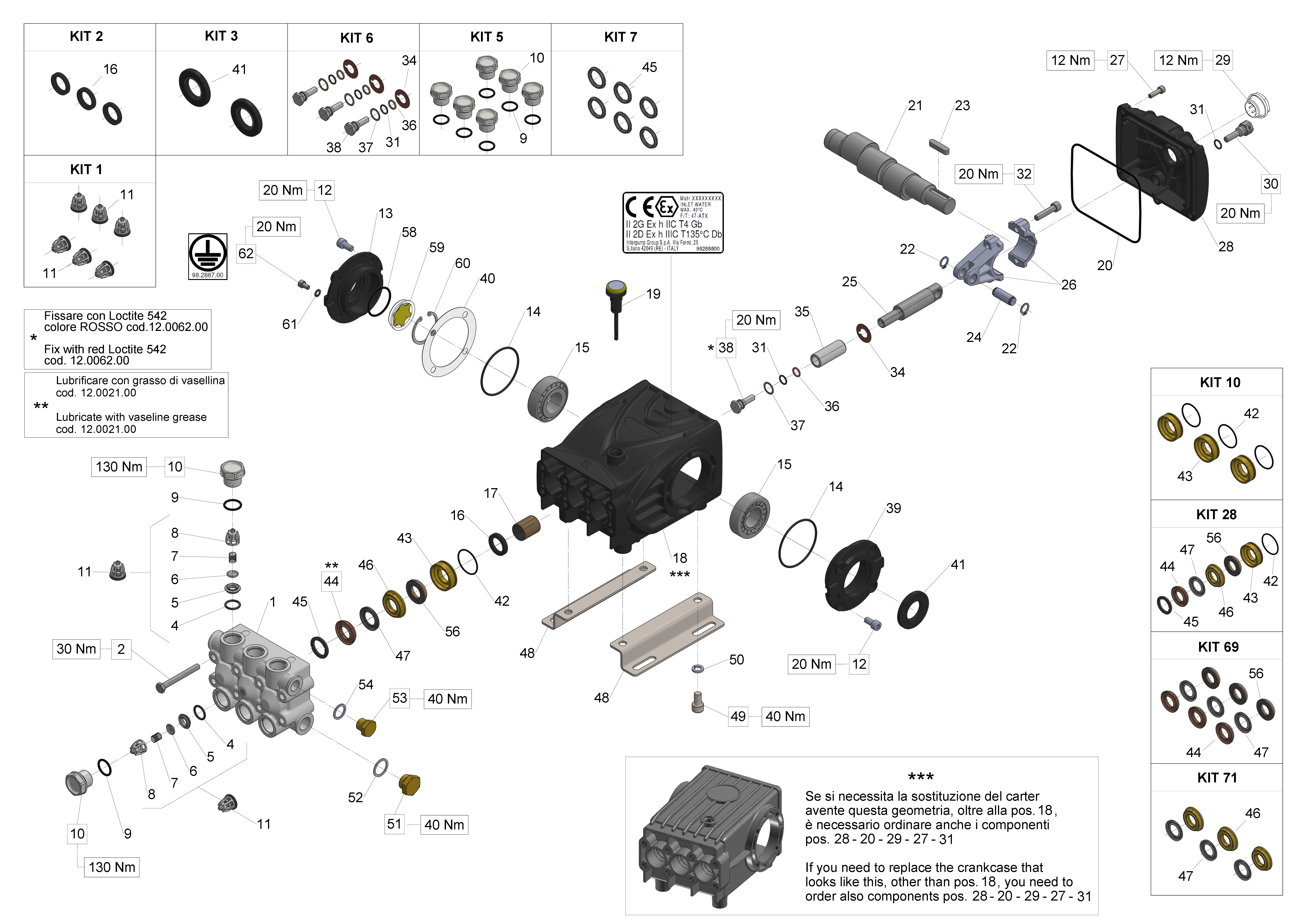

Exploded Diagram — Male shaft (key)View full size
W922 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT1
KIT 1 INTAKE/DELIVERY VALVE
34000101×1Available
View
KIT2
KIT 2 OIL SEAL D. 22X32X5,5
34000201×1Available
View
KIT3
KIT 3 OIL SEAL D.30X55X7
34000301×1Available
View
KIT5
KIT 5 INTAKE/DEL.VALVE CAPS
34000501×1Available
View
KIT6
KIT 6 PISTON BOLT
34000601×1Available
View
KIT7
KIT 7 HEAD RING D.20
34000701×1Available
View
KIT10
KIT 10 PACKING RETAINER D.20
34001001×1Available
View
KIT28
KIT 28 COMPL.SEAL FOR PIST.D20
34002801×1Available
View
KIT71
KIT 71 INTERMEDIATE RING D.20
34007101×1Available
View

Individual Components

PosCodeDescriptionQty
1
MANIFOLD W922
47120241×1Available
View
4
O-RING 17,12X2,62 (3068)
90384100×6Available
View
5
VALVE SEAT
36200366×6Available
View
6
VALVE PLATE
36200176×6Available
View
7
SPRING D. 9,4X14,8
94737600×6Available
View
8
VALVE CAGE
36200251×6Available
View
9
O-RING 20,29X2,62(3081)
90384700×6Available
View
10
VALVE PLUG M24X2X16 NICKEL PL.
98222200×6Available
View
11
VALVE ASSY.
36703201×6Available
View
12
SCREW M 8x16 UNI 5931
99303900×8Available
View
13
CLOSED SIDE COVER (47-66)
47151122×1Available
View
14
O-RING 67,95X2,62 (3268)
90391300×2Available
View
15
TAPER BEARING
91837500×2Available
View
16
OIL SEAL 22x32x5
90162500×3Available
View
17
BUSHING 22X25X30
90912600×3Available
View
18
CRANKCASE
47010822×1Available
View
19
OIL DIP-STICK G3/8X80
98210600×1Available
View
20
O-RING D.133.02X 2,62(3525)
90392200×1Available
View
21
CRANKSHAFT C.13
47023035×1Available
View

Need multiple parts? Request a bundled quote

63 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official W922 parts list — Industrial Pumps (Series 47)

Recommended Spare Parts

Accessories

CONNECTING-ROD PIN D.13X35,5

97738000

Spare Parts

KIT 5 INTAKE/DEL.VALVE CAPS

34000501

Spare Parts

PISTON SCREW

47219566

Accessories

HEX-HEAD SCREW M08X70 UNI5737 10.9 Fe/Zn5c1A+De

99320600

Accessories

WASHER 14X28X0,5

96728600

Valves

VALVE PLATE

36200176

Accessories

PLUG G3/8X13

98210000

MANIFOLD W916

Spare Parts

MANIFOLD W916

47120241

Accessories

WASHER 21,5X27X1,5

96751400

Spare Parts

KIT 7 HEAD RING D.20

34000701

Accessories

KEY 8(h9)X7X35 UNI 6604/A

91489200

Spare Parts

HEAD RING D. 20

47100051
