Interpump PUMP W200 R

Technical Documents

(1)
1 Technical Document Available
Sign in or create an account to download

Complete Solution

Need installation, maintenance, or a bundled quote?
Our engineers can help with product selection, system design, installation, and ongoing service — all from one partner.
InterpumpPumps & Compressors
Available

Interpump PUMP W200 R

SKU 3G-ITP-01437

Brand
Interpump
Item
PUMP W200 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
12 L/min
Pressure
200 bar
Power
4.41 kW
Speed
1450 RPM
Weight
7.7 kg
Dimensions
225 mm
Power
6 HP
Flow (US)
3.17 GPM
Pressure
20 MPa
Pressure
2900 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

PUMP W200 R by Interpump delivers reliable high-pressure performance for industrial applications requiring consistent output. This Italian-engineered pump operates at 1450 rpm, generating 4.41 kW of power with a maximum pressure of 200 bar (20 MPa/2900 psi) and flow rate of 12 l/min. Compact dimensions of 225 mm and lightweight construction at 7.7 kg make it ideal for manufacturing, hydraulics, and pressure cleaning systems. The robust design ensures durability in demanding industrial environments. PUMP W200 R (SKU: W00200-000) is available from 3G Electric Singapore, your Interpump distributor.

Spare Parts & Repair Kits

Official W200 parts list — 128 parts, 61 available in catalog

Official Parts List

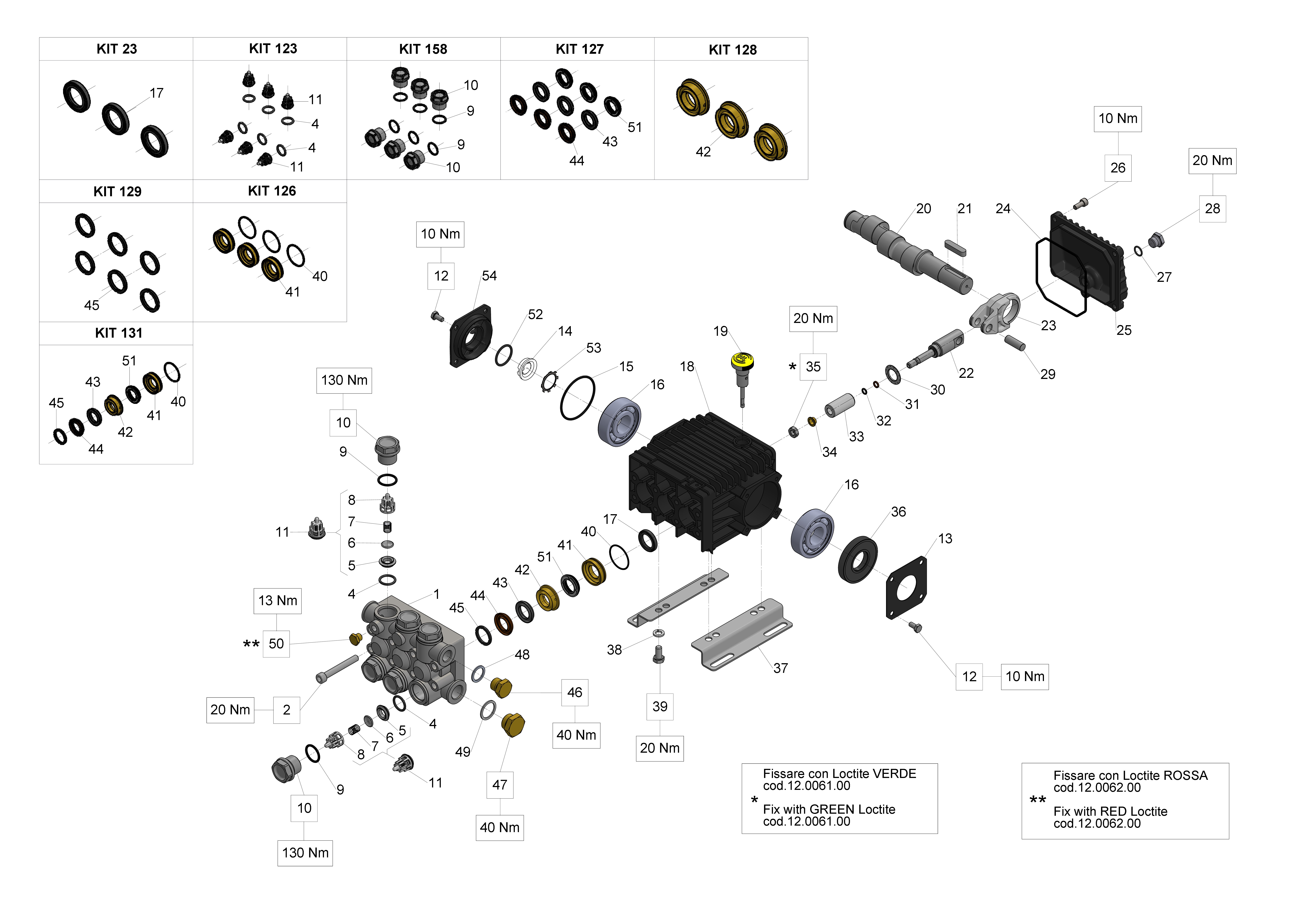

Exploded Diagram — Male shaft (key)View full size
W200 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT23
KIT 23 OIL SEAL D.20X30X5
34002301×1Available
View
KIT123
KIT 123 INTAKE/DELIVERY VALVE
34012301×1Available
View
KIT126
KIT 126 PACKING RETAINER D.18
34012601×1Available
View
KIT127
KIT 127 PACKING D. 18
34012701×1Available
View
KIT128
KIT 128 INTERMEDIATE RING D.18
34012801×1Available
View
KIT129
KIT 129 HEAD RING D.18
34012901×1Available
View
KIT131
KIT 131 CPL.SEAL PIST. D. 18
34013101×1Available
View
KIT158
KIT 158 VALVE PLUGS (NICKEL)
34015801×1Available
View

Individual Components

PosCodeDescriptionQty
1
View
2
SCREW M 8x60 UNI 5931
99317500×8Available
View
4
O-RING 17,12X2,62 (3068)
90384100×6Available
View
5
VALVE SEAT
36200366×6Available
View
6
VALVE PLATE
36200176×6Available
View
7
SPRING D. 9,4X14,8
94737600×6Available
View
8
VALVE CAGE
36202551×6Available
View
9
O-RING 20,29X2,62(3081)
90384700×6Available
View
10
VALVE CAP M24X1,5X17 NICKEL
98222500×6Available
View
11
INTAKE/DELIVERY VALVE
36711501×6Available
View
12
SCREW M 6x12 UNI 5739
99180700×8Available
View
13
CRANKCASE COVER
50150074×1Available
View
14
OIL LEVEL GAUGE
53210851×1Available
View
15
O-RING 56,82X2,62 (3225)
90389800×1Available
View
16
BALL BEARING 6305 SKF
91833100×2Available
View
17
OIL SEAL 20x30x5
90161400×3Available
View
18
CRANKCASE
44010022×1Available
View
19
OIL DIP-STICK G3/8X51
98210300×1Available
View
20
CRANKSHAFT C.11 (D.24)
44020335×1Available
View
21
KEY 8(h9)X7X35 UNI 6604/A
91489200×1Available
View

Need multiple parts? Request a bundled quote

61 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official W200 parts list — Industrial Pumps (Series 53 E1)

Recommended Spare Parts

Spare Parts

KIT 131 CPL.SEAL PIST. D. 18

34013101

Spare Parts

KIT 126 PACKING RETAINER D.18

34012601

Spare Parts

SIDE CRANKCASE COVER

53150022

Spare Parts

RESTOP RING D. 18

90268300

Accessories

NUT M8X13X5

92221600

Spare Parts

ANTI-EXTRUSION RING

90502200

Accessories

PLUG G1/2X10

98217600

Accessories

WASHER 21,5X27X1,5

96751400

Spare Parts

KIT 129 HEAD RING D.18

34012901

Spare Parts

KIT 123 INTAKE/DELIVERY VALVE

34012301

Spare Parts

PACKING 18X30X7 (L.P.)

90268400

Spare Parts

O-RING 25,07X2,62 (3100)

90385900
