Interpump PUMP W1755 R

Technical Documents

(1)
1 Technical Document Available
Sign in or create an account to download

Complete Solution

Need installation, maintenance, or a bundled quote?
Our engineers can help with product selection, system design, installation, and ongoing service — all from one partner.
InterpumpPumps & Compressors
Available

Interpump PUMP W1755 R

SKU 3G-ITP-01667

Brand
Interpump
Item
PUMP W1755 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
55 L/min
Pressure
172 bar
Power
18 kW
Speed
1450 RPM
Weight
18.5 kg
Dimensions
340.5 mm
Power
24.5 HP
Flow (US)
14.5 GPM
Pressure
17.2 MPa
Pressure
2500 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump's PUMP W1755 R delivers reliable industrial pumping performance with an 18kW motor generating 55 liters per minute at 172 bar operating pressure. This Italian-engineered unit handles demanding applications in manufacturing, construction, and hydraulic systems requiring robust pressure delivery up to 2500 psi. Operating at 1450 rpm, the compact 18.5 kg pump offers efficient flow rates of 14.5 US gpm, making it ideal for mobile equipment and space-constrained installations. Available from 3G Electric Singapore, the PUMP W1755 R (SKU W01755-000) provides proven durability for industrial applications demanding consistent performance and long service life.

Spare Parts & Repair Kits

Official W1755 parts list — 55 parts, 55 available in catalog

Official Parts List

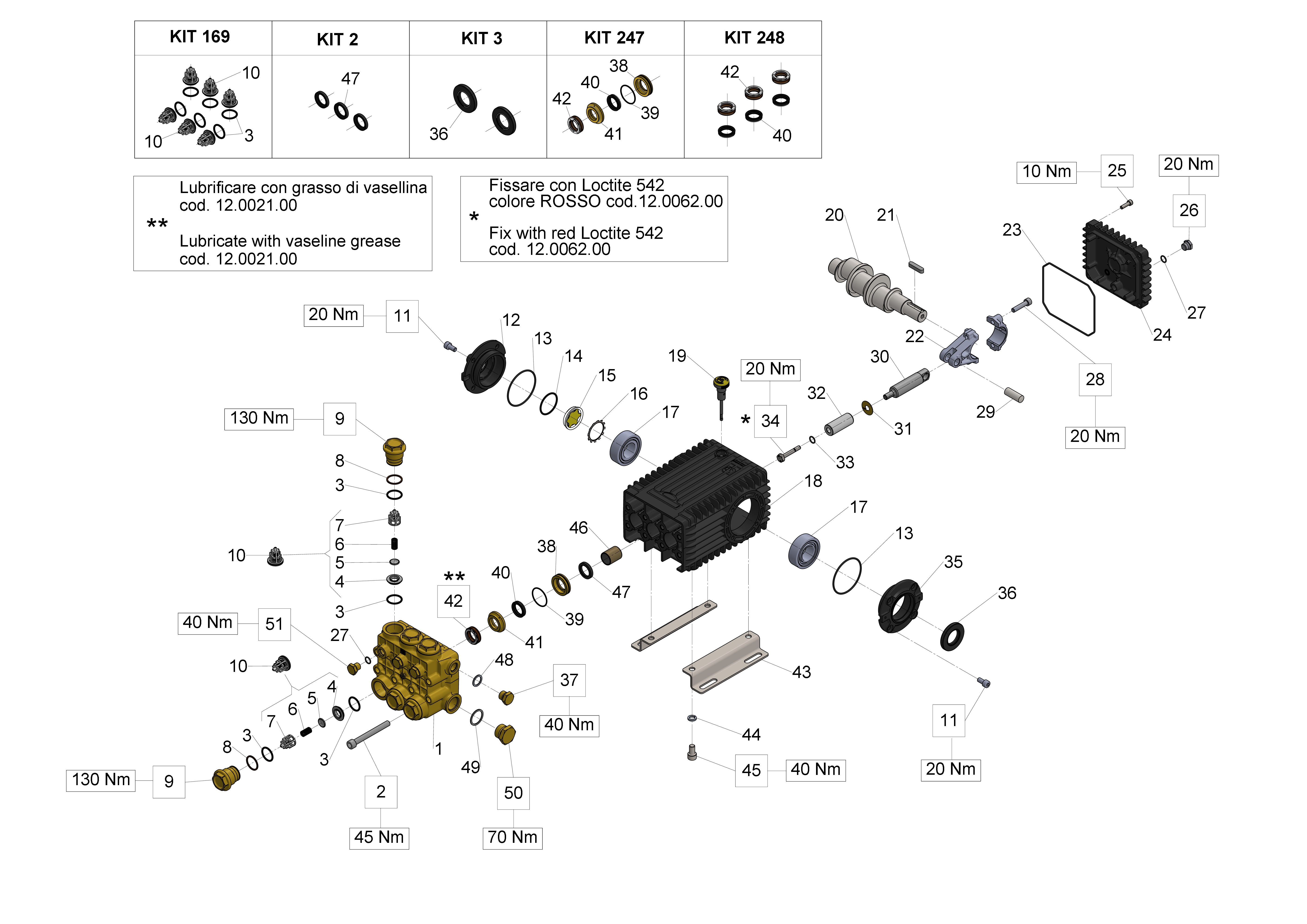

Exploded Diagram — Male shaft (key)View full size
W1755 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT2
KIT 2 OIL SEAL D. 22X32X5,5
34000201×1Available
View
KIT3
KIT 3 OIL SEAL D.30X55X7
34000301×1Available
View
KIT169
KIT 169 INTAKE/DEL.VALVE (66)
34016901×1Available
View
KIT247
KIT 247 CPL. SEAL D.28
34024701×1Available
View
KIT248
KIT 248 PACKING D.28
34024801×1Available
View

Individual Components

PosCodeDescriptionQty
1
MANIFOLD FOR PISTON D.28 W1755
66124641×1Available
View
2
SCREW M10X90 UNI 5931 8.8
99380100×8Available
View
3
O-RING 23,81X2,62 (132)
90385700×12Available
View
4
VALVE SEAT
36203366×6Available
View
5
SPHERICAL VALVE
36203476×6Available
View
6
SPRING Dm. 10x18.5
94738800×6Available
View
7
VALVE CAGE
36203551×6Available
View
8
ANTI-EXTR.RING D.24.7x29x1.5
90516500×6Available
View
9
VALVE CAP M32x1.5x29.5
66130041×6Available
View
10
INTAKE/DEL.VALVE ASSY(66)
36712701×6Available
View
11
SCREW M 8x16 UNI 5931
99303900×8Available
View
12
View
13
O-RING 67,95X2,62 (3268)
90391300×2Available
View
14
O-RING 39,34X2,62 (3156)
90387700×1Available
View
15
OIL SIGHT GLASS
70211801×1Available
View
16
CIRCLIP D.45 (ZJ45)
90075600×1Available
View
17
ROLLER BEARING NJ2206EC
91838000×2Available
View
18
CRANKCASE
66010022×1Available
View
19
OIL DIP-STICK G3/8X80
98210600×1Available
View
20
CRANKSHAFT C.21 - D. 24 W1755
66020435×1Available
View

Need multiple parts? Request a bundled quote

55 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official W1755 parts list — Industrial Pumps (66 Series)

Recommended Spare Parts

Spare Parts

PACKING D.28X36X6.5 L.P.

90275300

Accessories

PLUG G3/8X13

98210000

Spare Parts

O-RING D.37.82X1.78 (2150)

90362000

Spare Parts

INTERMEDIATE RING D.28

66220070

Accessories

KEY 8(h9)X7X35 UNI 6604/A

91489200

Spare Parts

PISTON GUIDE - S.S.

66050066

Spare Parts

SPRING Dm. 10x18.5

94738800

Spare Parts

O-RING 10,82X1,78 (2043)

90358500

Spare Parts

KIT 169 INTAKE/DEL.VALVE (66)

34016901

Valves

INTAKE/DEL.VALVE ASSY(66)

36712701

Accessories

PLUG G1/4X10

98204300

Accessories

PLUG G3/4X16

98226800
