Interpump PUMP W162

SKU 3G-ITP-01418

Brand
Interpump
Item
PUMP W162
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
18 L/min
Pressure
160 bar
Power
5.51 kW
Speed
1000 RPM
Weight
14.5 kg
Dimensions
317.5 mm
Power
7.5 HP
Flow (US)
4.75 GPM
Pressure
16 MPa
Pressure
2320 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump's PUMP W162 is a robust industrial pump engineered for demanding applications requiring consistent high-pressure performance. Delivering 5.51 kW at 1000 RPM, this Italian-manufactured unit generates 160 bar (16 MPa) pressure with a flow rate of 18 L/min. Weighing just 14.5 kg, the W162 suits manufacturing, hydraulic systems, and cleaning equipment where reliability matters. Its compact 317.5 mm footprint facilitates easy installation in space-constrained environments. Available from 3G Electric Singapore, an Interpump distributor, this industrial pump provides proven durability for Singapore's manufacturing and industrial sectors.

Spare Parts & Repair Kits

Official W162 parts list — 128 parts, 64 available in catalog

Official Parts List

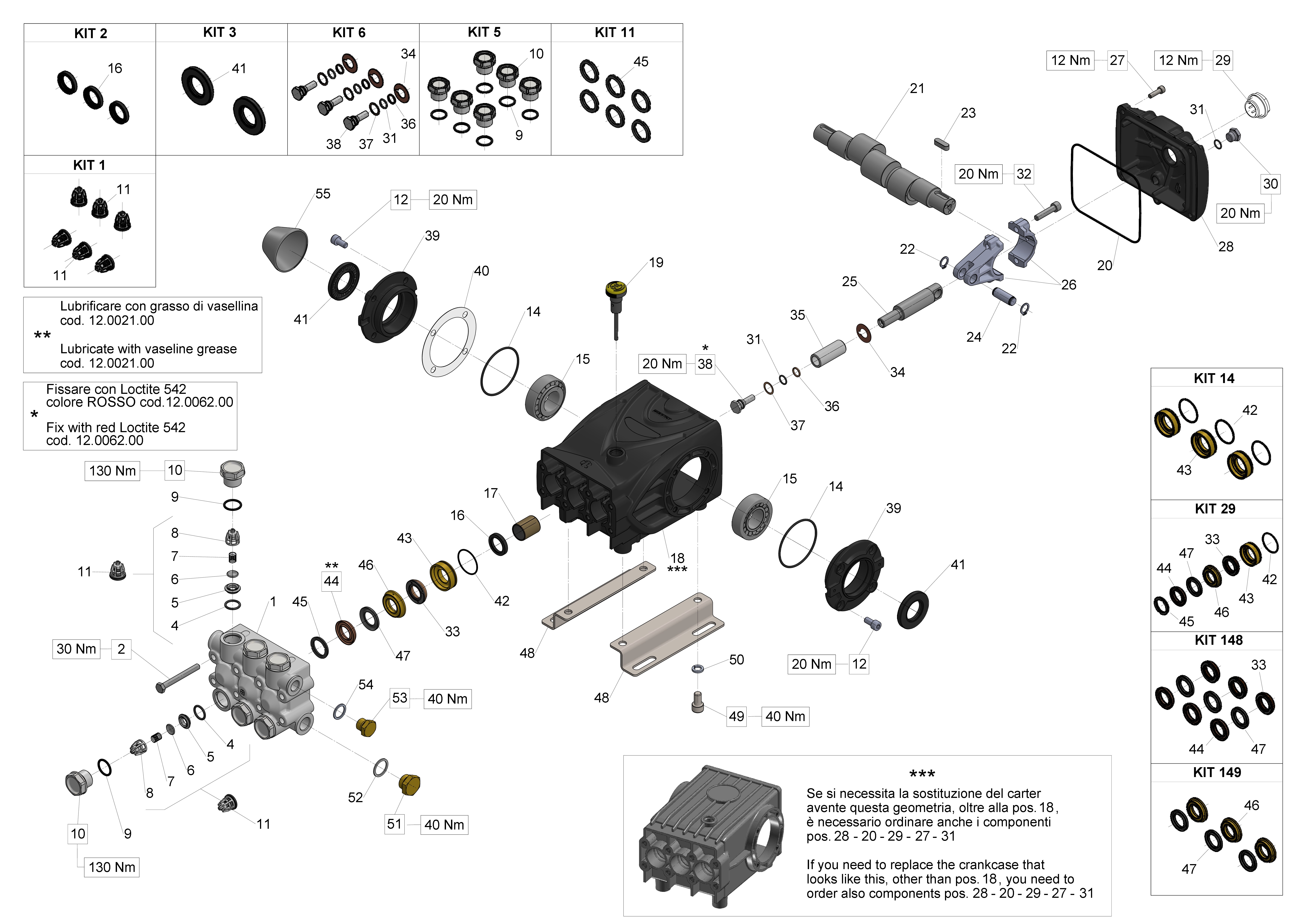

Exploded Diagram — Male shaft (key)View full size
W162 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT1
KIT 1 INTAKE/DELIVERY VALVE
34000101×1Available
View
KIT2
KIT 2 OIL SEAL D. 22X32X5,5
34000201×1Available
View
KIT3
KIT 3 OIL SEAL D.30X55X7
34000301×1Available
View
KIT5
KIT 5 INTAKE/DEL.VALVE CAPS
34000501×1Available
View
KIT6
KIT 6 PISTON BOLT
34000601×1Available
View
KIT11
KIT 11 HEAD RING D. 22
34001101×1Available
View
KIT14
KIT 14 PACKING RETAINER D.22
34001401×1Available
View
KIT29
KIT 29 COMPL.SEAL FOR PIST.D22
34002901×1Available
View
KIT148
KIT 148 SEAL D.22X35
34014801×1Available
View
KIT149
KIT 149 INT.RING D.22 W/RESTOP
34014901×1Available
View

Individual Components

PosCodeDescriptionQty
1
MANIFOLD W162
47120241×1Available
View
4
O-RING 17,12X2,62 (3068)
90384100×6Available
View
5
VALVE SEAT
36200366×6Available
View
6
VALVE PLATE
36200176×6Available
View
7
SPRING D. 9,4X14,8
94737600×6Available
View
8
VALVE CAGE
36200251×6Available
View
9
O-RING 20,29X2,62(3081)
90384700×6Available
View
10
VALVE PLUG M24X2X16 NICKEL PL.
98222200×6Available
View
11
VALVE ASSY.
36703201×6Available
View
12
SCREW M 8x16 UNI 5931
99303900×8Available
View
13
CLOSED SIDE COVER (47-66)
47151122×1Available
View
14
O-RING 67,95X2,62 (3268)
90391300×2Available
View
15
TAPER BEARING
91837500×2Available
View
16
OIL SEAL 22x32x5
90162500×3Available
View
17
BUSHING 22X25X30
90912600×3Available
View
18
CRANKCASE
47010822×1Available
View
19
OIL DIP-STICK G3/8X80
98210600×1Available
View
20
O-RING D.133.02X 2,62(3525)
90392200×1Available
View
21
CRANKSHAFT C.16 S.p.f. U.S.
47021735×1Available
View

Need multiple parts? Request a bundled quote

64 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official W162 parts list — Industrial Pumps (Series 47)

Recommended Spare Parts

Spare Parts

KIT 5 INTAKE/DEL.VALVE CAPS

34000501

Spare Parts

PISTON SCREW

47219566

Accessories

HEX-HEAD SCREW M08X70 UNI5737 10.9 Fe/Zn5c1A+De

99320600

Accessories

WASHER 14X28X0,5

96728600

Valves

VALVE PLATE

36200176

Accessories

PLUG G3/8X13

98210000

MANIFOLD W916

Spare Parts

MANIFOLD W916

47120241

Accessories

WASHER 21,5X27X1,5

96751400

Accessories

KEY 8(h9)X7X35 UNI 6604/A

91489200

Spare Parts

CRANKCASE

47010822

Spare Parts

PISTON D. 22x50

47040509

Accessories

CONNECTING-ROD PIN D.13X35,5

97738000
