Interpump PUMP VHT7095 R

Technical Documents

(1)
1 Technical Document Available
Sign in or create an account to download

Complete Solution

Need installation, maintenance, or a bundled quote?
Our engineers can help with product selection, system design, installation, and ongoing service — all from one partner.
InterpumpPumps & Compressors
Available

Interpump PUMP VHT7095 R

SKU 3G-ITP-01269

Brand
Interpump
Item
PUMP VHT7095 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
102 L/min
Pressure
100 bar
Power
19.5 kW
Speed
1450 RPM
Weight
37 kg
Dimensions
388 mm
Power
26.5 HP
Flow (US)
27 GPM
Pressure
10 MPa
Pressure
1450 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

PUMP VHT7095 R represents a robust Italian-engineered industrial pump from Interpump, delivering 19.5 kW of power with a flow rate of 102 L/min at 100 bar maximum pressure. This compact unit, weighing 37 kg with 1450 RPM rotation speed, suits high-pressure applications across manufacturing, cleaning systems, and hydraulic operations. The VHT7095 R's reliable performance and efficient design make it ideal for demanding industrial environments requiring consistent pressure delivery. Available from 3G Electric Singapore, this Interpump pump provides proven durability for professional operations across Asia.

Spare Parts & Repair Kits

Official VHT7095 parts list — 239 parts, 46 available in catalog

Official Parts List

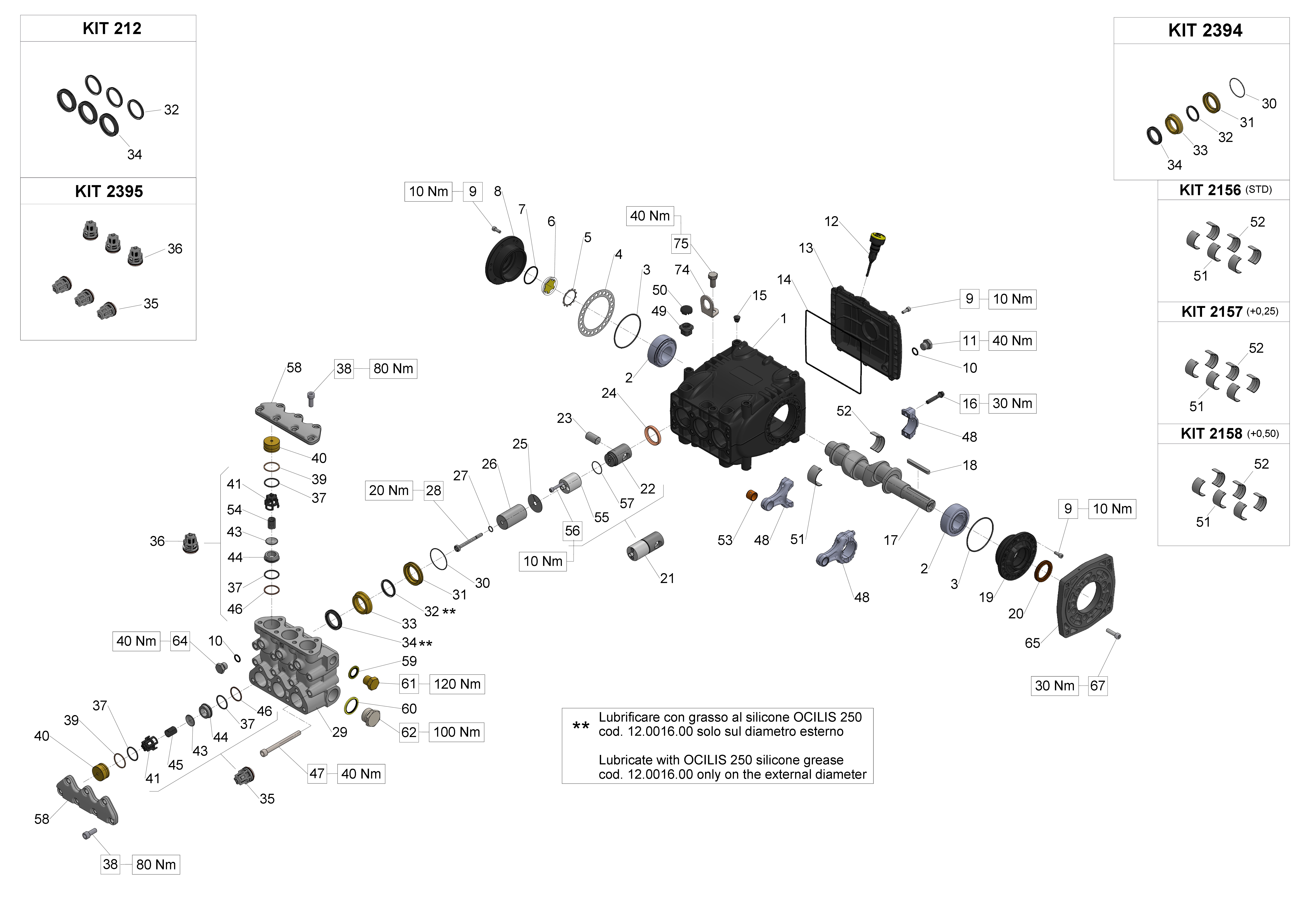

Exploded Diagram — Male shaft (key) - GASView full size
VHT7095 — Male shaft (key) - GAS

Repair Kits — Order These for Routine Maintenance

KIT2156
KIT 2156*CONROD BUSHING
34215601×1Available
View
KIT2157
KIT 2157*CONROD BUSHINGS +0,25
34215701×1Available
View
KIT2158
KIT 2158*CONROD BUSHINGS +0,50
34215801×1Available
View

Individual Components

PosCodeDescriptionQty
1
CRANKCASE VHT7095
70010022×1Available
View
2
TAPER ROLLER BEARING 33207/Q
91847700×2Available
View
3
O-RING D. 80.6X2.62 (3318)
90391500×2Available
View
4
SHIM 0.25 MM.
70220381×1Available
View
4
SHIM 0.1 MM.
70220081×1Available
View
5
CIRCLIP D.45 (ZJ45)
90075600×1Available
View
6
OIL SIGHT GLASS VHT7095
70211801×1Available
View
7
O-RING 39,34X2,62 (3156)
90387700×1Available
View
8
BEARING COVER (OIL GLASS SIDE)
70150122×1Available
View
9
SCREW M6X16 UNI 5931 8.8 Z.
99185400×20Available
View
10
O-RING 13,95X2,62 (3056)
90383300×4Available
View
11
PLUG G3/8x13 TE22
98210050×1Available
View
12
OIL DIPSTICK D.21,5X70
98211500×1Available
View
14
OR D.190.17X2.62 NBR 70SH
90394200×1Available
View
15
PLUG D. 15
98200500×5Available
View
16
CONN.ROD BOLT M8X1X42
99312300×6Available
View
18
KEY 8h9X7X70 UNI 6604/A
91490000×1Available
View
19
BEARING COVER (PTO SIDE)
70150022×1Available
View
20
OIL SEAL D.35X52X7
90166800×1Available
View
21
PISTON GUIDE ASSY
70606801×3Available
View

Need multiple parts? Request a bundled quote

46 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official VHT7095 parts list — Industrial Pumps (High Temperature Versions Series 70 VHT)

Recommended Spare Parts

Spare Parts

PISTON GUIDE ROD

70050266

Spare Parts

OIL SEAL D.35X52X7

90166800

Spare Parts

SPRING Dm. 16.0X37.0 INOX

94745100

Accessories

PLUG D. 15

98200500

Spare Parts

BEARING COVER (OIL GLASS SIDE)

70150122

Spare Parts

BEARING COVER (PTO SIDE)

70150022

Spare Parts

ANTI-EXTR.RING D.32.4X36.5X1.5

90518000

Spare Parts

OR D.190.17X2.62 NBR 70SH

90394200

Accessories

SCREW M 8x30 UNI 5931

99308400

Accessories

KEY 8h9X7X70 UNI 6604/A

91490000

Spare Parts

PISTON D.36X63

70040509

Spare Parts

ANELLO PER ALBERO D.30 H.PACK

70226771
