Interpump PUMP VHT6628 R

Technical Documents

(1)
1 Technical Document Available
Sign in or create an account to download

Complete Solution

Need installation, maintenance, or a bundled quote?
Our engineers can help with product selection, system design, installation, and ongoing service — all from one partner.
InterpumpPumps & Compressors
Available

Interpump PUMP VHT6628 R

SKU 3G-ITP-01247

Brand
Interpump
Item
PUMP VHT6628 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
28 L/min
Pressure
250 bar
Power
13.38 kW
Speed
1750 RPM
Weight
18.5 kg
Dimensions
340.5 mm
Power
18.2 HP
Flow (US)
7.4 GPM
Pressure
25 MPa
Pressure
3600 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump's PUMP VHT6628 R is a robust industrial pump engineered for demanding applications across manufacturing, cleaning, and processing sectors. Delivering 13.38 kW of power at 1750 RPM, this Italian-manufactured unit generates 28 L/min flow at 250 bar operating pressure, making it ideal for high-pressure operations requiring sustained performance. Weighing 18.5 kg with compact dimensions, the VHT6628-000 offers reliable efficiency in space-constrained installations. Available from 3G Electric Singapore, an Interpump distributor, this industrial pump provides the dependable power and pressure specifications needed for professional-grade equipment integration.

Spare Parts & Repair Kits

Official VHT6628 parts list — 135 parts, 46 available in catalog

Official Parts List

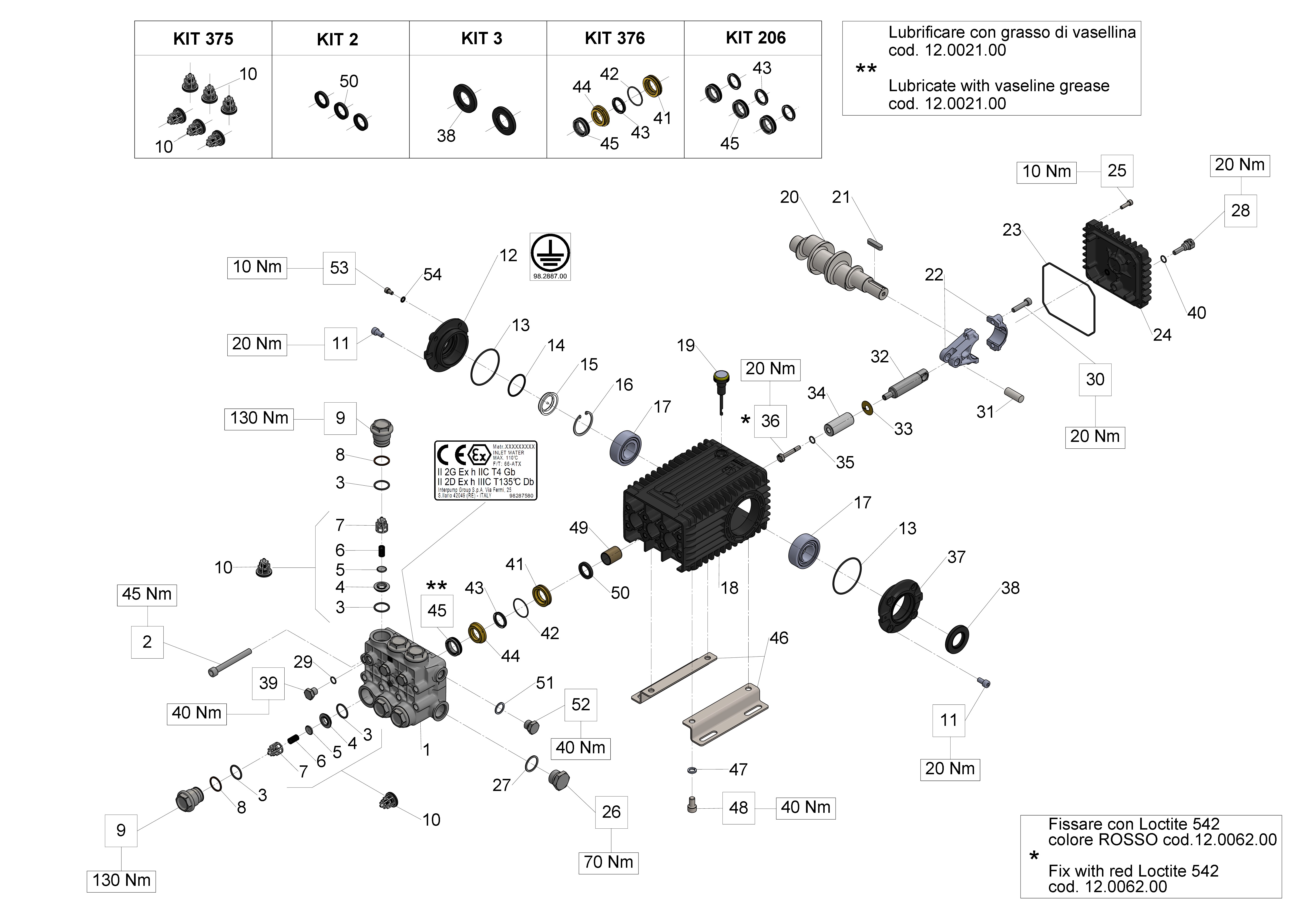

Exploded Diagram — Male shaft (key)View full size
VHT6628 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT2
KIT 2 OIL SEAL D. 22X32X5,5
34000201×1Available
View
KIT3
KIT 3 OIL SEAL D.30X55X7
34000301×1Available
View

Individual Components

PosCodeDescriptionQty
2
SCREW M10X90 UNI 5931 8.8
99380100×8Available
View
4
VALVE SEAT
36203366×6Available
View
5
SPHERICAL VALVE
36203476×6Available
View
6
SPRING Dm. 10x18.5
94738800×6Available
View
7
VALVE CAGE
36203551×6Available
View
8
ANTI-EXTR.RING D.24.7x29x1.5
90516500×6Available
View
11
SCREW M 8x16 UNI 5931
99303900×8Available
View
12
View
13
O-RING 67,95X2,62 (3268)
90391300×2Available
View
14
O-RING 39,34X2,62 (3156)
90387700×1Available
View
15
OIL SIGHT GLASS
70211801×1Available
View
16
CIRCLIP D.45 (ZJ45)
90075600×1Available
View
17
ROLLER BEARING NJ2206EC
91838000×2Available
View
18
CRANKCASE
66010022×1Available
View
19
OIL DIP-STICK G3/8X80
98210600×1Available
View
20
CRANKSHAFT C.19 - D. 24
66020035×1Available
View
21
View
22
CONNECTING ROD
66030001×3Available
View
23
O-RING D.133.02X 2,62(3525)
90392200×1Available
View
24
REAR COVER
66160022×1Available
View

Need multiple parts? Request a bundled quote

46 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official VHT6628 parts list — Industrial Pumps (High Temperature Versions Series 66 VHT)

Recommended Spare Parts

Spare Parts

PISTON GUIDE - S.S.

66050066

Spare Parts

SPRING Dm. 10x18.5

94738800

Spare Parts

SEAL D.20X26.15 L.P.(66HT)

90225000

Spare Parts

O-RING 10,82X1,78 (2043)

90358500

Spare Parts

CRANKSHAFT C.19 - D. 24

66020035

Spare Parts

CONNECTING ROD-PIN D.14X39

97740500

Spare Parts

OIL DIP-STICK G3/8X80

98210600

Spare Parts

KIT 3 OIL SEAL D.30X55X7

34000301

Spare Parts

CRANKSHAFT C.19 - DUAL PTO

66021035

Accessories

WASHER D. 10X28X0.5

96710100

Spare Parts

ROLLER BEARING NJ2206EC

91838000

Accessories

KEY 8(h9)X7X35 UNI 6604/A

91489200
