Interpump PUMP VHT5807 R

SKU 3G-ITP-01238

Brand
Interpump
Item
PUMP VHT5807 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
7 L/min
Pressure
170 bar
Power
2.27 kW
Speed
1450 RPM
Weight
7 kg
Dimensions
241.5 mm
Power
3.09 HP
Flow (US)
1.85 GPM
Pressure
17 MPa
Pressure
2465 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump PUMP VHT5807 R delivers reliable performance for demanding industrial applications requiring sustained pressure output. Engineered in Italy, this industrial pump operates at 1450 rpm with a maximum pressure rating of 170 bar (17 MPa) and flow capacity of 7 l/min. The 2.27 kW motor provides 3.09 hp, making it suitable for high-pressure cleaning, hydraulic systems, and precision industrial processes. Weighing just 7 kg with compact dimensions of 241.5 mm length, the unit offers excellent portability without compromising durability. Available from 3G Electric Singapore, the VHT5807-000 is an Interpump distributor offering genuine products with full technical support for industrial customers throughout Singapore and the region.

Spare Parts & Repair Kits

Official VHT5807 parts list — 124 parts, 61 available in catalog

Official Parts List

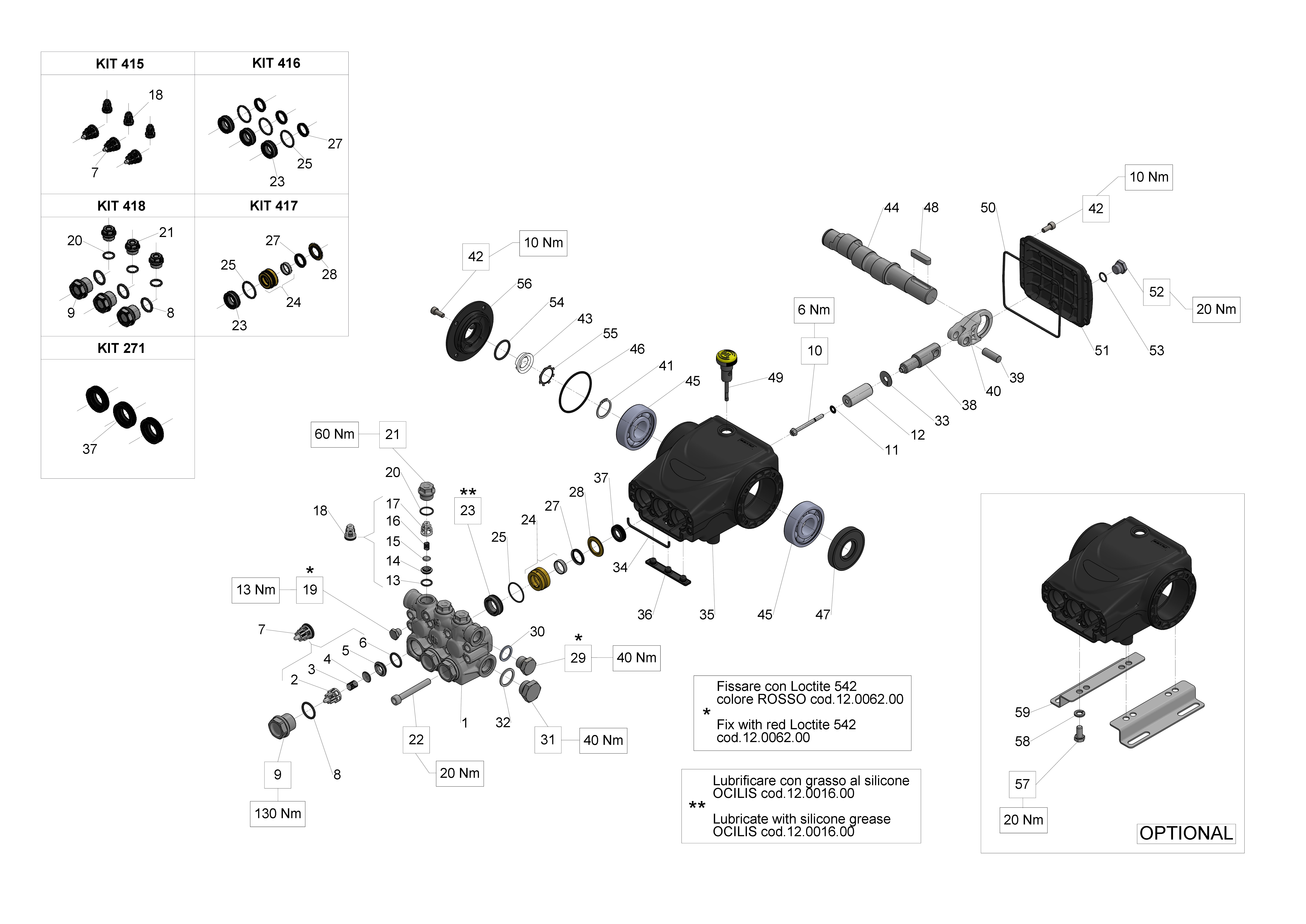

Exploded Diagram — Male shaft (key)View full size
VHT5807 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT271
View
KIT417
View

Individual Components

PosCodeDescriptionQty
2
VALVE CAGE
36202551×3Available
View
3
SPRING D. 9,4X14,8
94737600×3Available
View
4
VALVE PLATE
36200176×3Available
View
5
VALVE SEAT
36200366×3Available
View
6
View
7
INLET/OUTLET VALVE (60-63 VHT)
36726201×3Available
View
8
View
9
VALVE CAP M24X1,5X17 NICKEL
98222500×3Available
View
10
SCREW M05X55 SPEC. A2-70
99169000×3Available
View
12
PISTON D.18X42
58040209×3Available
View
13
OR D. 12.00x2.00 HNBR 70SH
90367450×3Available
View
14
VALVE SEAT
36211366×3Available
View
15
SPHERICAL VALVE
36211276×3Available
View
16
SPRING D.6.2x10.5 S.S.
94733300×3Available
View
17
VALVE CAGE
36211151×3Available
View
18
View
19
PLUG G 1/8 X 8 NICKEL
98196700×1Available
View
20
View

Need multiple parts? Request a bundled quote

61 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official VHT5807 parts list — Industrial Pumps (Car Wash Versions Series 59 C3W)

Recommended Spare Parts

Spare Parts

SPRING D. 9,4X14,8

94737600

Spare Parts

O-RING D. 17.13x2.62 HNBR 70SH 3068

90384150

Accessories

WASHER 8,4

96701600

Spare Parts

REAR CRANKCASE COVER

58160022

Accessories

KEY 8(h9)X7X35 UNI 6604/A

91489200

Spare Parts

O-RING 25,07X2,62 (3100)

90385900

Accessories

SCREW M 6x14 UNI 5931

99183700

Spare Parts

PISTON GUIDE

58050066

Accessories

WASHER D.7.5X23X0.5

96699000

Accessories

PLUG G. 3/8X13 NICKEL

98209900

Spare Parts

SPRING D.6.2x10.5 S.S.

94733300

Valves

VALVE SEAT

36211366
