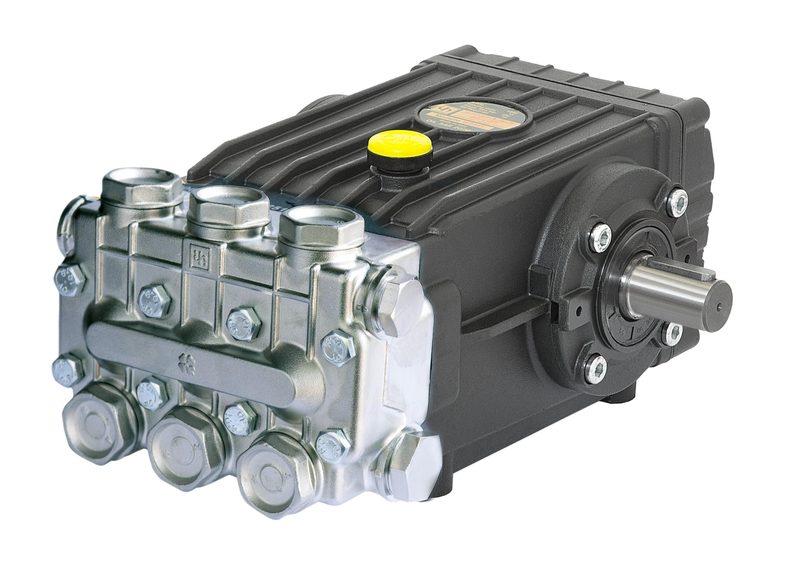

Interpump PUMP VHT4723 R

SKU 3G-ITP-01234

Brand
Interpump
Item
PUMP VHT4723 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
23 L/min
Pressure
160 bar
Power
7.35 kW
Speed
1450 RPM
Weight
14.5 kg
Dimensions
315.5 mm
Power
10 HP
Flow (US)
0.254861111111111 GPM
Pressure
16 MPa
Pressure
2320 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

PUMP VHT4723 R is a high-performance industrial pump manufactured by Interpump, engineered for demanding applications requiring reliable fluid transfer and pressure management. Delivering 7.35 kW of power at 1450 RPM, this unit generates 23 L/min flow capacity at 160 bar operating pressure, making it suitable for heavy-duty industrial cleaning, hydraulic systems, and pressure washing operations. Built to Italian engineering standards and weighing 14.5 kg, the VHT4723 R combines compact design with robust performance. Available from 3G Electric Singapore, this Interpump pump provides OEM-quality reliability for manufacturing facilities, construction equipment, and industrial service operations throughout Southeast Asia.

Spare Parts & Repair Kits

Official HT4723 parts list — 121 parts, 60 available in catalog

Official Parts List

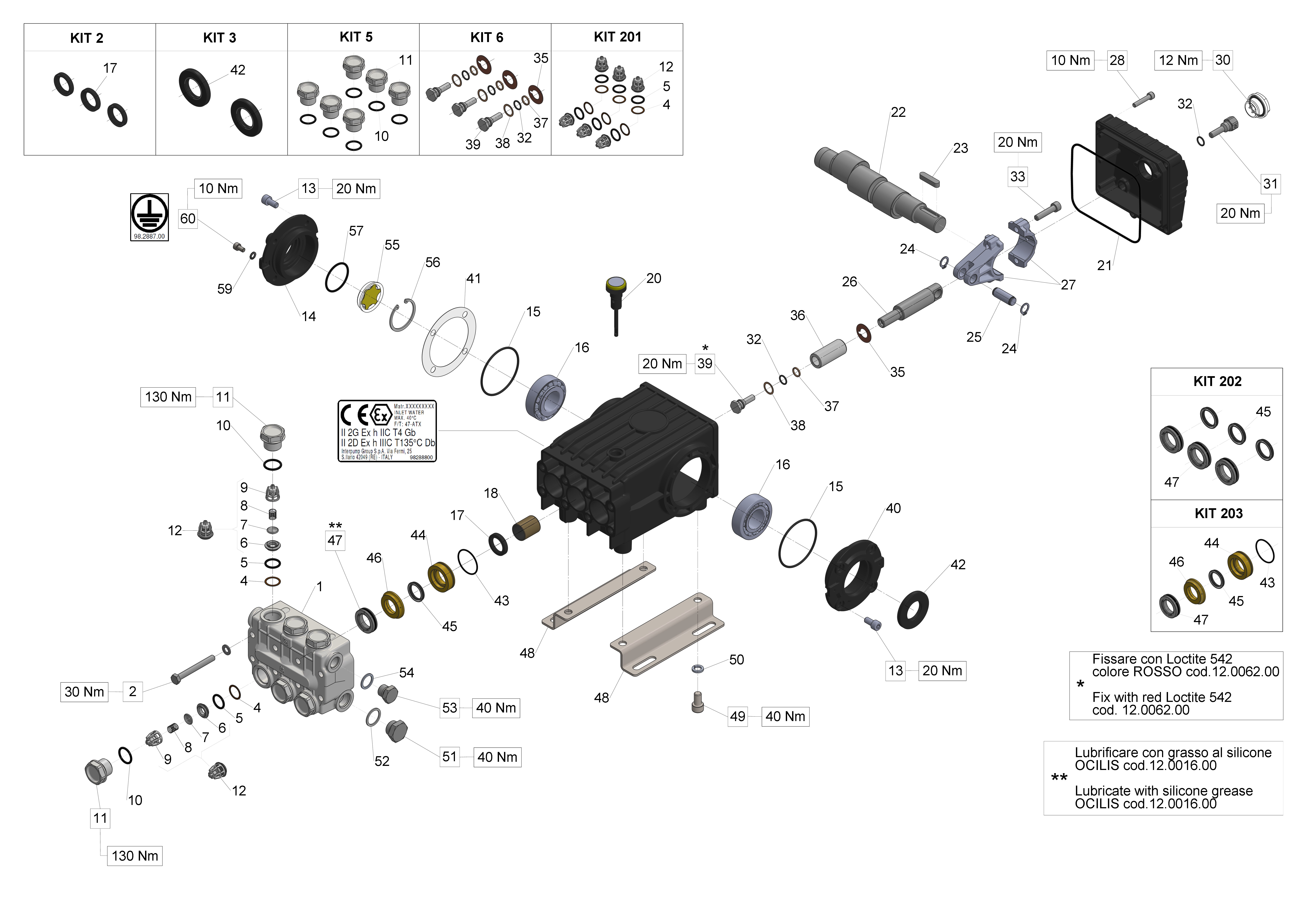

Exploded Diagram — Male shaft (key)View full size
HT4723 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT2
KIT 2 OIL SEAL D. 22X32X5,5
34000201×1Available
View
KIT3
KIT 3 OIL SEAL D.30X55X7
34000301×1Available
View
KIT5
KIT 5 INTAKE/DEL.VALVE CAPS
34000501×1Available
View
KIT6
KIT 6 PISTON BOLT
34000601×1Available
View
KIT202
KIT 202 SEALS D. 22 HT
34020201×1Available
View
KIT203
KIT 203 CPL.SEAL D.22 HT
34020301×1Available
View

Individual Components

PosCodeDescriptionQty
1
MANIFOLD "T" HT4723
47120941×1Available
View
4
BACK-UP RING D.17.4X21.9X0.8
90510500×6Available
View
5
SEAL D.17.1X22.3X1.8 (47 CW)
90340000×6Available
View
6
VALVE SEAT
36200366×6Available
View
7
VALVE PLATE
36200176×6Available
View
8
SPRING D. 9,4X14,8
94737600×6Available
View
9
VALVE CAGE
36200251×6Available
View
10
O-RING 20,29X2,62(3081)
90384700×6Available
View
11
VALVE PLUG M24X2X16 NICKEL PL.
98222200×6Available
View
12
INTAKE DEL. VALVE (HT)
36704901×6Available
View
13
SCREW M 8x16 UNI 5931
99303900×8Available
View
14
View
15
O-RING 67,95X2,62 (3268)
90391300×2Available
View
16
TAPER BEARING 32206 SKF
91837800×2Available
View
17
OIL SEAL 22x32x5
90162500×3Available
View
18
BUSHING 22X25X30
90912600×3Available
View
20
OIL DIP-STICK G3/8X80
98210600×1Available
View
21
O-RING D.133.02X 2,62(3525)
90392200×1Available
View
22
CRANKSHAFT C. 15 (D. 24)
47022435×1Available
View

Need multiple parts? Request a bundled quote

60 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official HT4723 parts list — Industrial Pumps (High Temperature Versions Series 47 HT)

Recommended Spare Parts

Valves

VALVE PLUG M24X2X16 NICKEL PL.

98222200

MANIFOLD "T" HT4718

Spare Parts

MANIFOLD "T" HT4718

47120941

Spare Parts

PACKING D.17.1x22.3x1.8 HNBR 90SH

90340100

Spare Parts

O-RING D. 20.29x2.62 HNBR 90SH 3081

90384750

Spare Parts

H.P. SEAL D. 22 (HT)

90231000

Spare Parts

BACK UP RING D. 22 HT

47081470

Spare Parts

KIT 370 INLET/OUTLET VALVES (47 VHT)

34037001

Spare Parts

KIT 368 PISTON BOLT (47 VHT)

34036801

Spare Parts

O-RING D. 34.65x1.78 HNBR 70SH 2137

90361650

Accessories

HEX-HEAD SCREW M08X70 UNI5737 10.9 Fe/Zn5c1A+De

99320600

Spare Parts

BACK-UP RING D.17.4X21.9X0.8

90510500

Accessories

SCREW M 8x16 UNI 5931

99303900
