Interpump PUMP VHT4721 R

SKU 3G-ITP-01230

Brand
Interpump
Item
PUMP VHT4721 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
21 L/min
Pressure
140 bar
Power
5.51 kW
Speed
1450 RPM
Weight
14.5 kg
Dimensions
315.5 mm
Power
7.5 HP
Flow (US)
0.246527777777778 GPM
Pressure
14 MPa
Pressure
2030 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

PUMP VHT4721 R by Interpump delivers robust performance for demanding industrial applications. This Italian-engineered centrifugal pump generates 5.51 kW of power at 1450 RPM, handling flow rates of 21 L/min while maintaining pressure ratings up to 140 bar. Weighing just 14.5 kg with compact dimensions of 315.5 mm, it suits high-pressure cleaning, hydraulic systems, and manufacturing equipment. The VHT4721 R's reliable construction makes it ideal for food processing, chemical handling, and automotive industries. Available from 3G Electric Singapore, an Interpump distributor, this industrial pump provides proven durability and consistent operation in demanding environments.

Spare Parts & Repair Kits

Official VHT4721 parts list — 125 parts, 62 available in catalog

Official Parts List

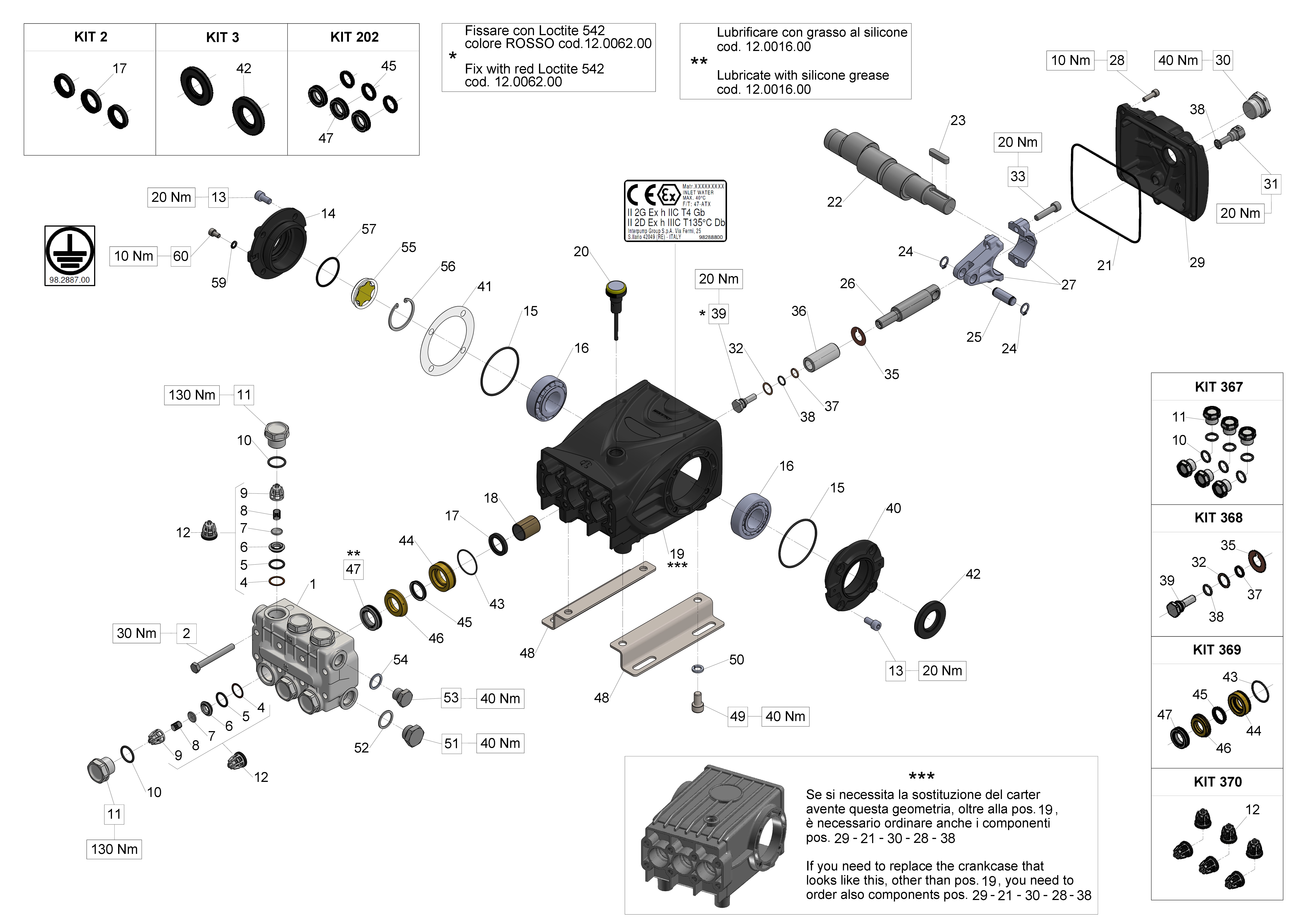

Exploded Diagram — Male shaft (key)View full size
VHT4721 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT2
KIT 2 OIL SEAL D. 22X32X5,5
34000201×1Available
View
KIT3
KIT 3 OIL SEAL D.30X55X7
34000301×1Available
View
KIT202
KIT 202 SEALS D. 22 HT
34020201×1Available
View
KIT367
KIT 367 VALVE PLUGS (47.VHT)
34036701×1Available
View
KIT368
KIT 368 PISTON BOLT (47 VHT)
34036801×1Available
View
KIT369
View
KIT370
View

Individual Components

PosCodeDescriptionQty
1
MANIFOLD "T" VHT4721
47120941×1Available
View
4
BACK-UP RING D.17.4X21.9X0.8
90510500×6Available
View
5
View
6
VALVE SEAT
36200366×6Available
View
7
VALVE PLATE
36200176×6Available
View
8
SPRING D. 9,4X14,8
94737600×6Available
View
9
VALVE CAGE
36200251×6Available
View
10
View
11
VALVE PLUG M24X2X16 NICKEL PL.
98222200×6Available
View
12
INLET/OUTLET VALVE (47 VHT)
36726101×6Available
View
13
SCREW M 8x16 UNI 5931
99303900×8Available
View
14
View
15
O-RING 67,95X2,62 (3268)
90391300×2Available
View
16
TAPER BEARING 32206 SKF
91837800×2Available
View
17
OIL SEAL 22x32x5
90162500×3Available
View
18
BUSHING 22X25X30
90912600×3Available
View
19
CRANKCASE
47010822×1Available
View
20
OIL DIP-STICK G3/8X80
98210600×1Available
View
21
O-RING D.133.02X 2,62(3525)
90392200×1Available
View

Need multiple parts? Request a bundled quote

62 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official VHT4721 parts list — Industrial Pumps (High Temperature Versions Series 47 VHT)

Recommended Spare Parts

Spare Parts

PISTON SCREW

47219566

Spare Parts

KIT 368 PISTON BOLT (47 VHT)

34036801

Accessories

HEX-HEAD SCREW M08X70 UNI5737 10.9 Fe/Zn5c1A+De

99320600

Accessories

WASHER 14X28X0,5

96728600

Valves

VALVE PLATE

36200176

Spare Parts

PACKING D.17.1x22.3x1.8 HNBR 90SH

90340100

Accessories

WASHER 21,5X27X1,5

96751400

Accessories

KEY 8(h9)X7X35 UNI 6604/A

91489200

Spare Parts

CRANKCASE

47010822

Spare Parts

PISTON D. 22x50

47040509

Spare Parts

KIT 202 SEALS D. 22 HT

34020201

Accessories

CONNECTING-ROD PIN D.13X35,5

97738000
