Interpump PUMP TT951 R

SKU 3G-ITP-01127

Brand
Interpump
Item
PUMP TT951 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
9.5 L/min
Pressure
100 bar
Power
1.83 kW
Speed
2800 RPM
Weight
5.2 kg
Dimensions
177 mm
Power
2.5 HP
Flow (US)
2.5 GPM
Pressure
10 MPa
Pressure
1450 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

PUMP TT951 R by Interpump delivers reliable performance for demanding industrial applications. This Italian-engineered centrifugal pump operates at 2800 rpm, generating 1.83 kW of power with a maximum pressure of 100 bar and flow rate of 9.5 l/min. Weighing just 5.2 kg with compact dimensions, it suits pressure washing, cleaning systems, and light industrial processes. The robust design ensures consistent operation in manufacturing and maintenance environments. Available from 3G Electric Singapore, an Interpump distributor, the PUMP TT951 R (SKU: TT0951-000) provides efficient fluid transfer solutions for professional users requiring durable equipment.

Spare Parts & Repair Kits

Official TT951 parts list — 97 parts, 30 available in catalog

Official Parts List

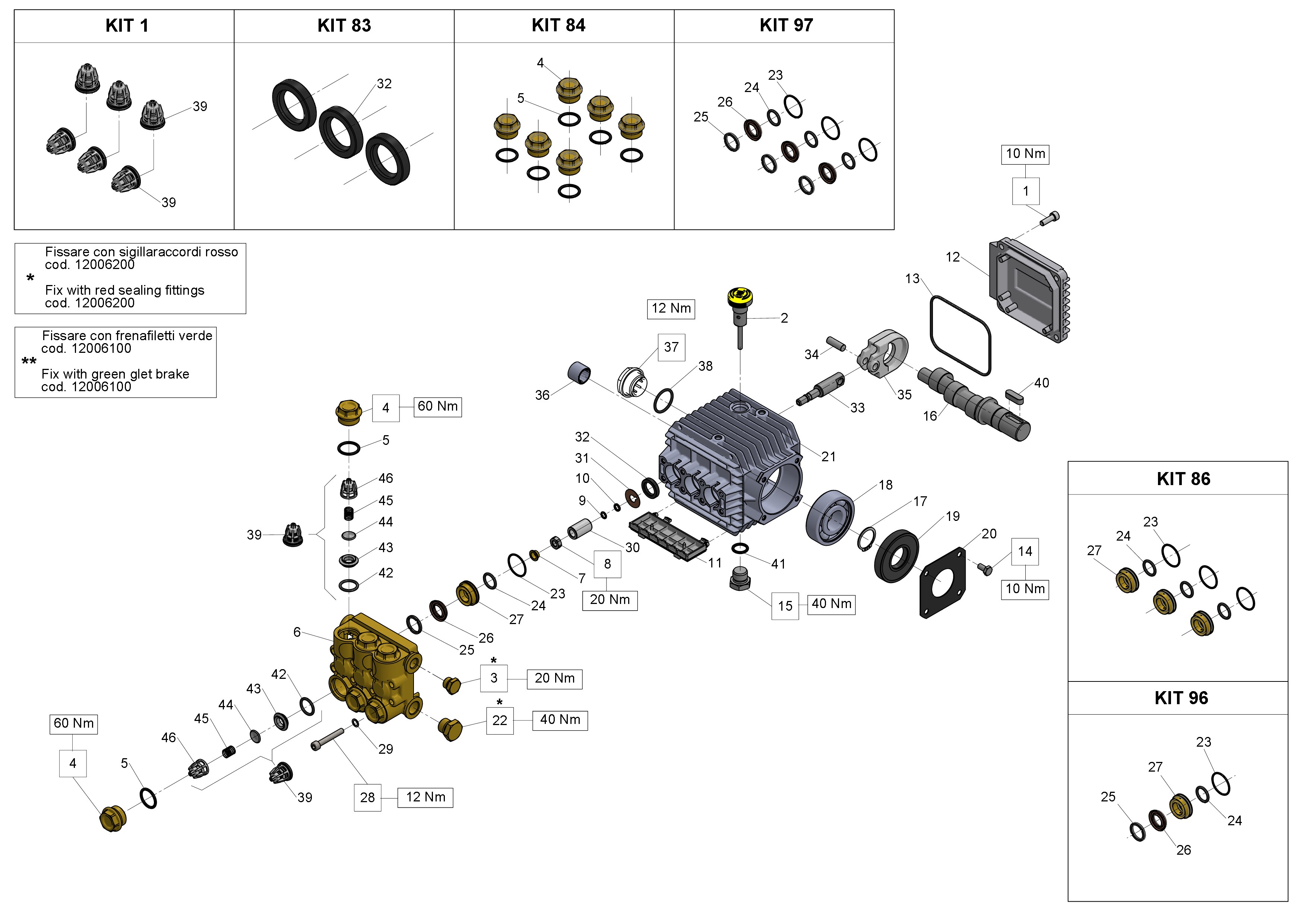

Exploded Diagram — Male shaft (key) - GASView full size
TT951 — Male shaft (key) - GAS

Repair Kits — Order These for Routine Maintenance

KIT1
KIT 1 INTAKE/DELIVERY VALVE
34000101×1Available
View

Individual Components

PosCodeDescriptionQty
1
SCREW M 6x18 UNI 5931 TT951
99186700×4Available
View
2
OIL DIP-STICK G3/8X51
98210300×1Available
View
3
PLUG G1/4X9
98204100×1Available
View
5
O-RING 20,29X2,62(3081)
90384700×6Available
View
7
WASHER D. 8
44211570×3Available
View
8
NUT M8X13X5
92221600×3Available
View
9
O-RING D. 5,28X1,78 (2021)
90357300×3Available
View
10
ANTI-EXTRUSION RING
90502200×3Available
View
14
SCREW M 6x12 UNI 5739 TT951
99180700×4Available
View
15
PLUG G3/8x13 TE22
98210050×1Available
View
17
CIRCLIP D. 25 UNI 7435
90063500×1Available
View
19
OIL SEAL D.25X62X10
90164100×1Available
View
20
CRANKCASE COVER
50150074×1Available
View
22
PLUG G3/8X13
98210000×1Available
View
23
O-RING 25,12X1,78 (2100)
90360400×3Available
View
24
O-RING 15,08X2,62 (119)
90383500×3Available
View
25
HEAD RING D. 15
51100051×3Available
View
26
PACKING D. 15X25X5/3,1
90262000×3Available
View
29
WASHER 6,4X10X0,7
96693800×8Available
View
37
OIL SIGHT GLASS ASSY G3/4
47221301×1Available
View

Need multiple parts? Request a bundled quote

30 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official TT951 parts list — Industrial Pumps (Series 53 ET1 brass)

Recommended Spare Parts

Accessories

CIRCLIP D. 25 UNI 7435

90063500

Spare Parts

O-RING 17,12X2,62 (3068)

90384100

Valves

VALVE PLATE

36200176

Accessories

NUT M8X13X5

92221600

Spare Parts

ANTI-EXTRUSION RING

90502200

Spare Parts

CRANKCASE COVER

50150074

Accessories

PLUG G3/8X13

98210000

Spare Parts

O-RING 20,29X2,62(3081)

90384700

Valves

VALVE SEAT

36200366

Spare Parts

SPRING D. 9,4X14,8

94737600

Accessories

WASHER D. 8

44211570

Spare Parts

OIL SEAL D.25X62X10

90164100
