Interpump PUMP T1212 R

Technical Documents

(1)
1 Technical Document Available
Sign in or create an account to download

Complete Solution

Need installation, maintenance, or a bundled quote?
Our engineers can help with product selection, system design, installation, and ongoing service — all from one partner.
InterpumpPumps & Compressors
Available

Interpump PUMP T1212 R

SKU 3G-ITP-00972

Brand
Interpump
Item
PUMP T1212 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
12 L/min
Pressure
120 bar
Power
2.94 kW
Speed
1750 RPM
Weight
5.2 kg
Dimensions
177 mm
Power
4 HP
Flow (US)
3.17 GPM
Pressure
12 MPa
Pressure
1750 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

PUMP T1212 R by Interpump delivers reliable performance for industrial applications requiring consistent fluid transfer. This compact Italian-engineered industrial pump operates at 1750 rpm, generating 2.94 kW of power with a maximum pressure of 120 bar (1750 psi) and flow rate of 12 liters per minute. Weighing just 5.2 kg with minimal footprint dimensions of 177 mm, the T1212 R suits manufacturing, construction, and cleaning equipment integration. Ideal for medium-duty hydraulic and water circulation systems, it provides the durability and efficiency expected from Interpump's proven engineering. Available from 3G Electric Singapore, industrial equipment supplier of premium industrial pumps and equipment.

Spare Parts & Repair Kits

Official T1212 parts list — 94 parts, 28 available in catalog

Official Parts List

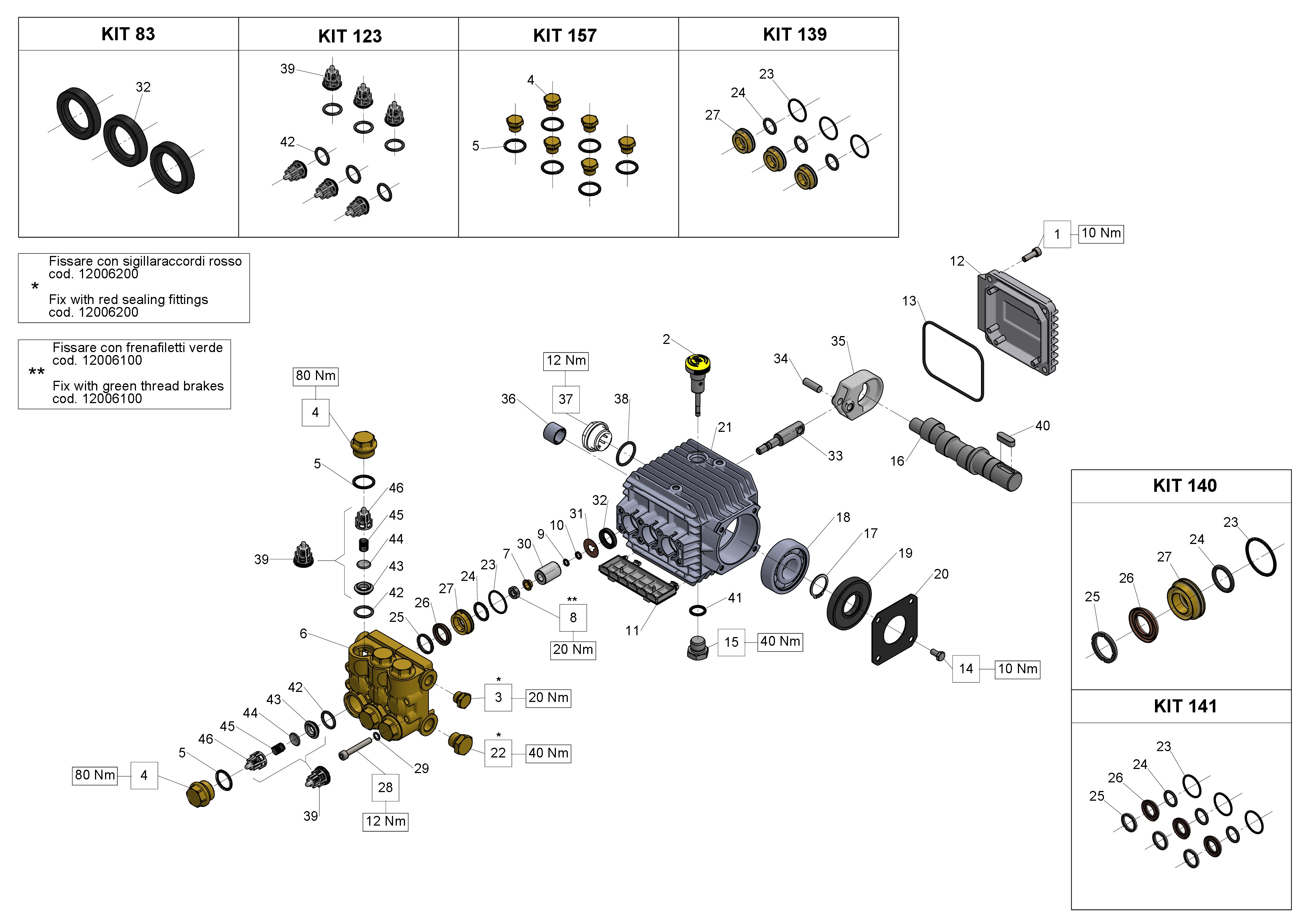

Exploded Diagram — Male shaft (key) - GASView full size
T1212 — Male shaft (key) - GAS

Repair Kits — Order These for Routine Maintenance

KIT123
KIT 123 INTAKE/DELIVERY VALVE
34012301×1Available
View

Individual Components

PosCodeDescriptionQty
1
SCREW M 6x18 UNI 5931 T1212
99186700×4Available
View
2
OIL DIP-STICK G3/8X51
98210300×1Available
View
3
PLUG G1/4X9
98204100×1Available
View
5
O-RING 20,29X2,62(3081)
90384700×6Available
View
7
WASHER D. 8
44211570×3Available
View
8
NUT M8X13X5
92221600×3Available
View
9
O-RING D. 5,28X1,78 (2021)
90357300×3Available
View
10
ANTI-EXTRUSION RING
90502200×3Available
View
14
SCREW M 6x12 UNI 5739 T1212
99180700×4Available
View
15
PLUG G3/8x13 TE22
98210050×1Available
View
17
CIRCLIP D. 25 UNI 7435
90063500×1Available
View
19
OIL SEAL D.25X62X10
90164100×1Available
View
20
CRANKCASE COVER
50150074×1Available
View
22
PLUG G3/8X13
98210000×1Available
View
23
O-RING 25,12X1,78 (2100)
90360400×3Available
View
24
O-RING 17,86X2,62 (123)
90384300×3Available
View
29
WASHER 6,4X10X0,7
96693800×8Available
View
37
OIL SIGHT GLASS ASSY G3/4
47221301×1Available
View
38
O-RING 25,07X2,62 (3100)
90385900×1Available
View
39
INTAKE/DELIVERY VALVE
36711501×6Available
View

Need multiple parts? Request a bundled quote

28 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official T1212 parts list — Industrial Pumps (Series 51)

Recommended Spare Parts

Accessories

WASHER 6,4X10X0,7

96693800

Accessories

WASHER 10,5X16X1

96710400

Spare Parts

INJECTOR SHUTTER

36256470

Accessories

CIRCLIP D. 25 UNI 7435

90063500

Spare Parts

O-RING 9,25X1,78 (2037)

90358200

Valves

VALVE PLATE

36200176

Accessories

NUT M8X1,25X5X13 UNI 5589

92221800

Accessories

PLUG G3/8X13

98210000

Spare Parts

O-RING 25,12X1,78 (2100)

90360400

Spare Parts

INLET NIPPLE G 3/4

36318251

SCREW M 6x18 UNI 5931 TT9061

Accessories

SCREW M 6x18 UNI 5931 TT9061

99186700

Spare Parts

O-RING 9,92X2,62 SPEC. (112)

90382200
