Interpump PUMP SSU2030 R

SKU 3G-ITP-00925

Brand
Interpump
Item
PUMP SSU2030 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
30 L/min
Pressure
200 bar
Power
11.47 kW
Speed
1750 RPM
Weight
21 kg
Dimensions
340.5 mm
Power
15.6 HP
Flow (US)
7.92 GPM
Pressure
20 MPa
Pressure
2900 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump PUMP SSU2030 R is a robust industrial pump engineered for demanding applications requiring consistent high-pressure performance. Delivering 11.47 kW of power at 1750 RPM, this Italian-manufactured unit generates 30 L/min flow capacity at 200 bar operating pressure, making it ideal for industrial cleaning systems, pressure washing equipment, and hydraulic applications. Weighing just 21 kg with compact 340.5 mm dimensions, the SSU2030-000 offers excellent portability without compromising durability. Available from 3G Electric Singapore, this Interpump industrial pump represents reliable performance for manufacturing facilities, construction operations, and specialized industrial sectors requiring precision fluid handling and high-pressure delivery.

Spare Parts & Repair Kits

Official SSU2030 parts list — 226 parts, 39 available in catalog

Official Parts List

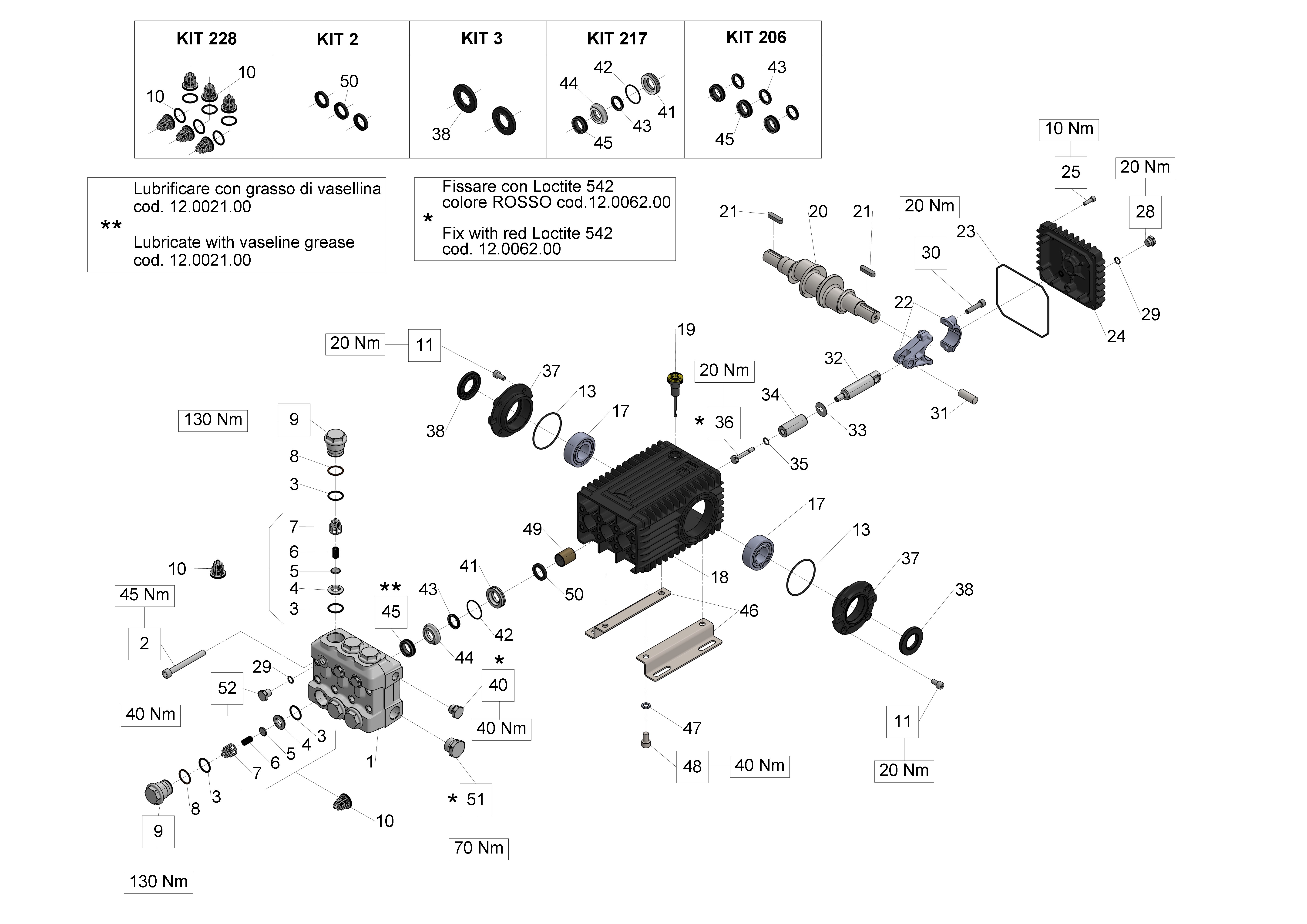

Exploded Diagram — Male shaft (key) - (plugs)View full size
SSU2030 — Male shaft (key) - (plugs)

Repair Kits — Order These for Routine Maintenance

KIT2
KIT 2 OIL SEAL D. 22X32X5,5
34000201×1Available
View
KIT3
KIT 3 OIL SEAL D.30X55X7
34000301×1Available
View

Individual Components

PosCodeDescriptionQty
3
O-RING 23,81X2,62 (132)
90385700×12Available
View
5
SPHERICAL VALVE
36203476×6Available
View
6
SPRING Dm. 10x18.5
94738800×6Available
View
7
VALVE CAGE
36203551×6Available
View
8
ANTI-EXTR.RING D.24.7x29x1.5
90516500×6Available
View
11
SCREW M8X16 - STAINLESS
99303800×8Available
View
12
View
13
O-RING 67,95X2,62 (3268)
90391300×2Available
View
14
O-RING 39,34X2,62 (3156)
90387700×1Available
View
15
OIL SIGHT GLASS
70211801×1Available
View
16
CIRCLIP D.45 (ZJ45)
90075600×1Available
View
17
ROLLER BEARING NJ2206EC
91838000×2Available
View
18
CRANKCASE
66010022×1Available
View
19
OIL DIP-STICK G3/8X80
98210600×1Available
View
20
View
21
KEY 8(h9)X7X35 UNI 6604/A
91489200×1Available
View
22
CONNECTING ROD
66030001×3Available
View
23
O-RING D.133.02X 2,62(3525)
90392200×1Available
View
24
REAR COVER
66160022×1Available
View
25
SCREW M6X20 S.S.
99188300×4Available
View

Need multiple parts? Request a bundled quote

39 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official SSU2030 parts list — Industrial Pumps (Stainless Steel Versions Series 53 SS1)

Recommended Spare Parts

Spare Parts

O-RING 39,34X2,62 (3156)

90387700

Spare Parts

CONNECTING ROD-PIN D.14X39

97740500

Accessories

PLUG G1/4X9 S.S.

98204000

Spare Parts

KIT 2 OIL SEAL D. 22X32X5,5

34000201

Spare Parts

SPRING Dm. 10x18.5

94738800

Spare Parts

SIDE CRANKCASE COVER FOR OIL GAUGE

47151222

Spare Parts

CONNECTING ROD

66030001

Spare Parts

PISTON D. 20X54

66040009

Spare Parts

SEAL D.20X30X10 H.P. (HT)

90226000

Spare Parts

OIL SEAL 30x55x7

90164800

Spare Parts

O-RING D.133.02X 2,62(3525)

90392200

Accessories

CIRCLIP D.45 (ZJ45)

90075600
