Interpump PUMP SS71170 R

SKU 3G-ITP-00894

Brand
Interpump
Item
PUMP SS71170 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
170 L/min
Pressure
100 bar
Power
32.5 kW
Speed
900 RPM
Weight
68 kg
Dimensions
526 mm
Power
44.2 HP
Flow (US)
44.9 GPM
Pressure
10 MPa
Pressure
1450 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

PUMP SS71170 R by Interpump delivers robust performance for demanding industrial applications. This industrial pump generates 32.5 kW (44.2 hp) at 900 rpm, producing 170 l/min flow at 100 bar maximum pressure. Engineered in Italy, the unit weighs 68 kg with compact dimensions of 526mm, making it suitable for manufacturing, construction, and hydraulic systems. The SS71170-000 handles high-pressure applications requiring reliable, continuous operation. Available from 3G Electric Singapore, an Interpump distributor offering genuine equipment backed by professional support and technical expertise.

Spare Parts & Repair Kits

Official SS71170 parts list — 14 parts, 14 available in catalog

Official Parts List

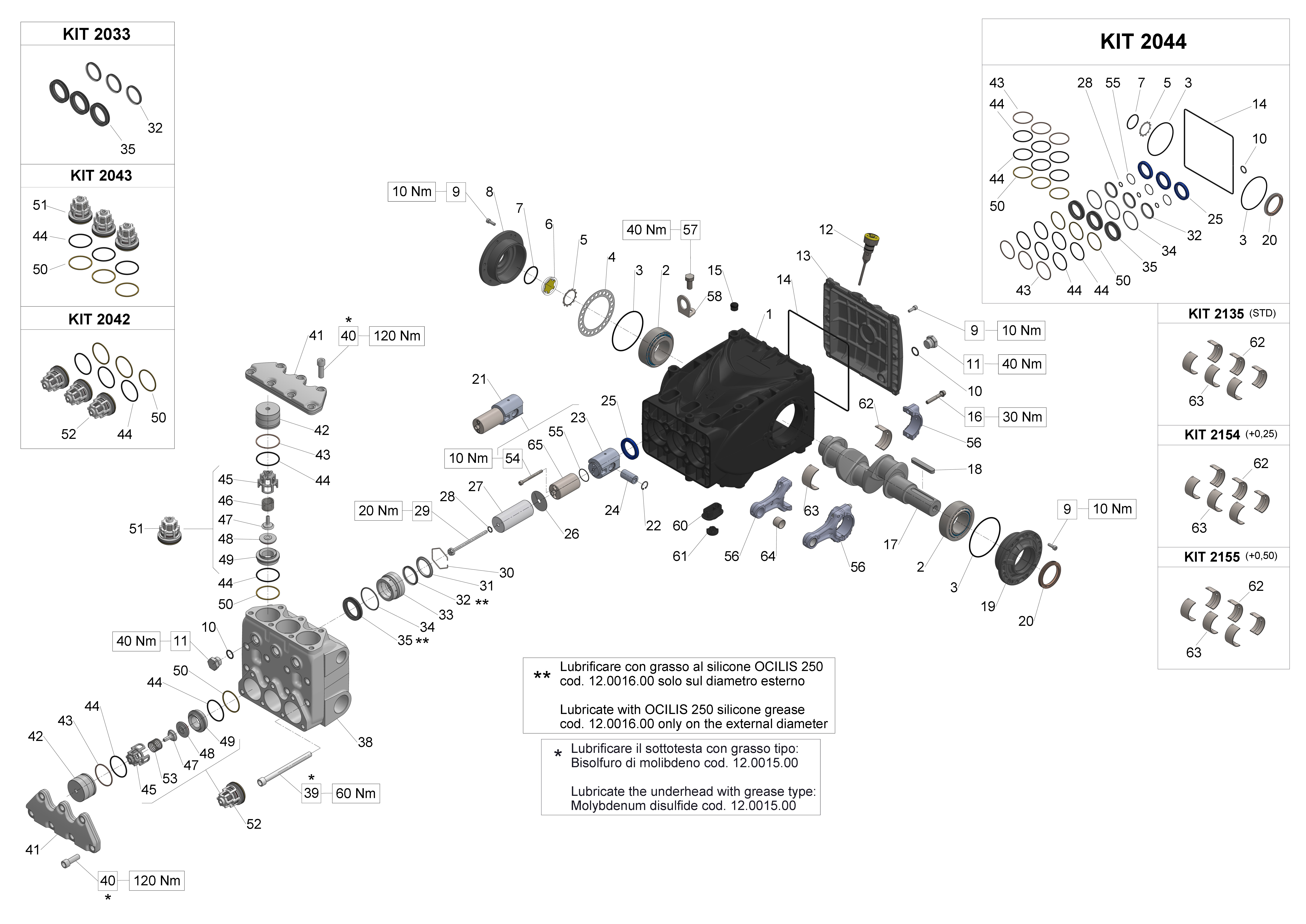

Exploded Diagram — Male shaft (key) - GASView full size
SS71170 — Male shaft (key) - GAS

Individual Components

PosCodeDescriptionQty
4
SHIM 0.25 MM.
70220381×1Available
View
4
SHIM 0.1 MM.
70220081×1Available
View
5
CIRCLIP D.45 (ZJ45)
90075600×1Available
View
6
OIL SIGHT GLASS
70211801×1Available
View
7
O-RING 39,34X2,62 (3156)
90387700×1Available
View
10
O-RING 17,12X2,62 (3068)
90384100×6Available
View
40
View
45
VALVE CAGE SS (71 SERIES)
36204505×6Available
View
47
INNER VALVE GUIDE
36208651×6Available
View
53
SPRING D.24.7X27
94754000×3Available
View
58
STAFFA DI SOLLEVAMENTO
71223074×1Available
View
61
PLUG CAP
71225951×3Available
View

Need multiple parts? Request a bundled quote

14 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official SS71170 parts list — Industrial Pumps (Stainless Steel Versions Series 71 SS)

Recommended Spare Parts

Valves

INNER VALVE GUIDE

36208651

Spare Parts

SPRING D.24.7X27

94754000

Spare Parts

OIL SIGHT GLASS

70211801

Accessories

SCREW M12X35 UNI5931 12.31 DACR.

99429500

Accessories

PLUG CAP

71225951

Spare Parts

SHIM 0.25 MM.

70220381

Spare Parts

O-RING 17,12X2,62 (3068)

90384100

Spare Parts

UPPER HALF CONROD BUSHING +0.25 (BIG END) S.70

90922100

Valves

VALVE CAGE SS (71 SERIES)

36204505

Spare Parts

UPPER HALF CONROD BUSHING +0.5 (BIG END) S.70

90922200

Spare Parts

STAFFA DI SOLLEVAMENTO

71223074

Accessories

CIRCLIP D.45 (ZJ45)

90075600
