Interpump PUMP SS71153 R

Technical Documents

(1)
1 Technical Document Available
Sign in or create an account to download

Complete Solution

Need installation, maintenance, or a bundled quote?
Our engineers can help with product selection, system design, installation, and ongoing service — all from one partner.
InterpumpPumps & Compressors
Available

Interpump PUMP SS71153 R

SKU 3G-ITP-00885

Brand
Interpump
Item
PUMP SS71153 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
122 L/min
Pressure
160 bar
Power
37.5 kW
Speed
800 RPM
Weight
68 kg
Dimensions
526 mm
Power
51 HP
Flow (US)
32.2 GPM
Pressure
16 MPa
Pressure
2320 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump PUMP SS71153 R delivers reliable industrial pumping performance with 37.5 kW power and 122 l/min flow capacity. Operating at 800 rpm, this Italian-engineered pump handles pressures up to 160 bar, making it ideal for high-pressure applications in manufacturing, construction, and hydraulic systems. Weighing 68 kg with compact dimensions, it combines durability with efficient operation. Available from 3G Electric Singapore, the SS71153-000 is your trusted solution for demanding industrial pumping requirements across Singapore and the region.

Spare Parts & Repair Kits

Official SS71153 parts list — 99 parts, 14 available in catalog

Official Parts List

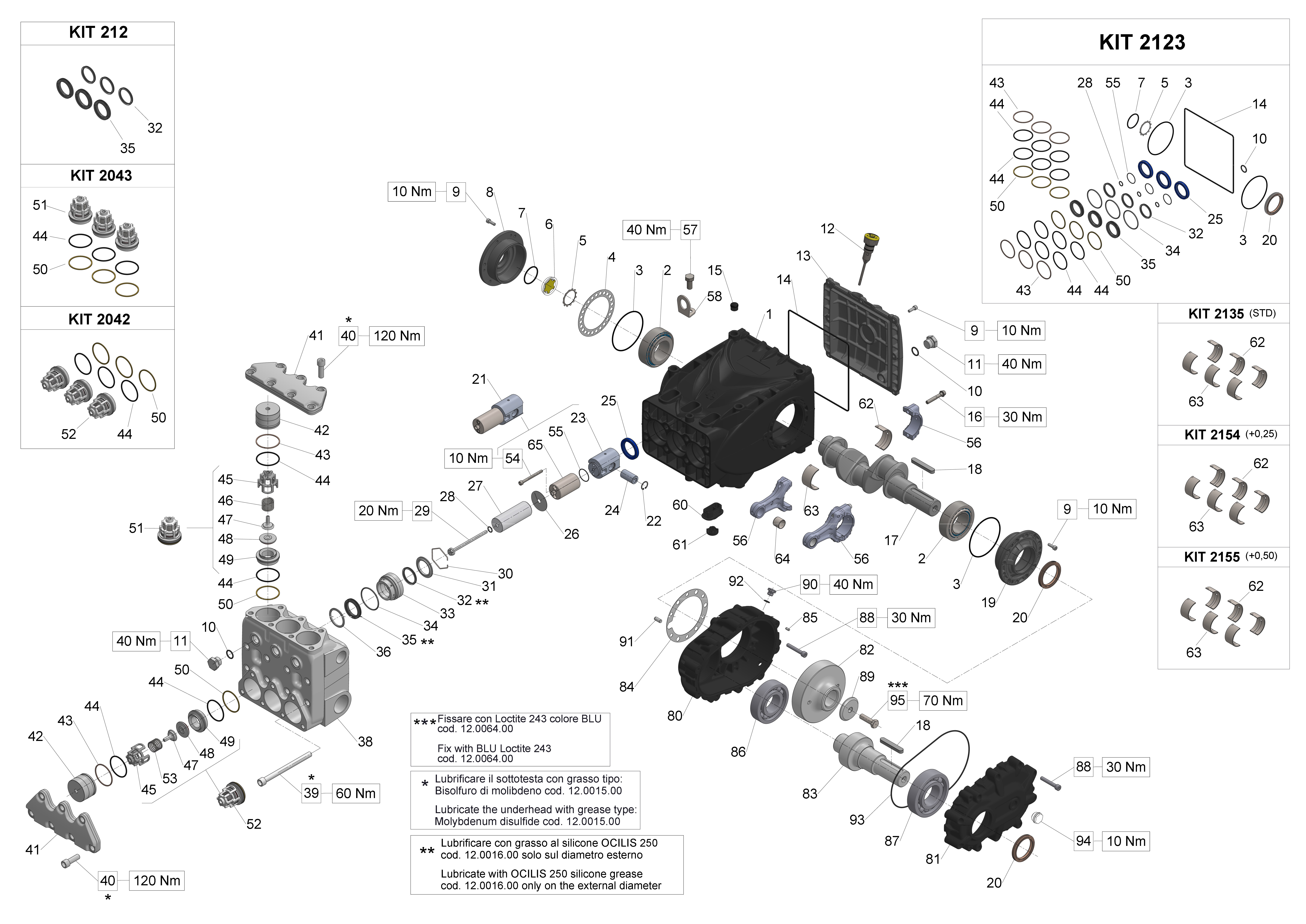

Exploded Diagram — Male shaft (key) - GASView full size
SS71153 — Male shaft (key) - GAS

Individual Components

PosCodeDescriptionQty
4
SHIM 0.25 MM.
70220381×1Available
View
4
SHIM 0.1 MM.
70220081×1Available
View
5
CIRCLIP D.45 (ZJ45)
90075600×1Available
View
6
OIL SIGHT GLASS
70211801×1Available
View
7
O-RING 39,34X2,62 (3156)
90387700×1Available
View
10
O-RING 17,12X2,62 (3068)
90384100×6Available
View
40
View
45
VALVE CAGE SS (71 SERIES)
36204505×6Available
View
47
INNER VALVE GUIDE
36208651×6Available
View
53
SPRING D.24.7X27
94754000×3Available
View
58
STAFFA DI SOLLEVAMENTO
71223074×1Available
View
61
PLUG CAP
71225951×3Available
View

Need multiple parts? Request a bundled quote

14 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official SS71153 parts list — Industrial Pumps (Stainless Steel Versions Series 71 SS)

Recommended Spare Parts

Accessories

CIRCLIP D.45 (ZJ45)

90075600

Spare Parts

O-RING 39,34X2,62 (3156)

90387700

Spare Parts

SHIM 0.1 MM.

70220081

Valves

INNER VALVE GUIDE

36208651

Accessories

SCREW M12X35 UNI5931 12.31 DACR.

99429500

Spare Parts

OIL SIGHT GLASS

70211801

Spare Parts

UPPER HALF CONROD BUSHING +0.5 (BIG END) S.70

90922200

Spare Parts

UPPER HALF CONROD BUSHING +0.25 (BIG END) S.70

90922100

Spare Parts

SHIM 0.25 MM.

70220381

Spare Parts

STAFFA DI SOLLEVAMENTO

71223074

Accessories

PLUG CAP

71225951

Spare Parts

SPRING D.24.7X27

94754000
