Interpump PUMP SS7061H R

Technical Documents

(1)
1 Technical Document Available
Sign in or create an account to download

Complete Solution

Need installation, maintenance, or a bundled quote?
Our engineers can help with product selection, system design, installation, and ongoing service — all from one partner.
InterpumpPumps & Compressors
Available

Interpump PUMP SS7061H R

SKU 3G-ITP-00861

Brand
Interpump
Item
PUMP SS7061H R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
61 L/min
Pressure
150 bar
Power
17.6 kW
Speed
1450 RPM
Weight
43 kg
Dimensions
387 mm
Power
24 HP
Flow (US)
16.1 GPM
Pressure
15 MPa
Pressure
2175 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

PUMP SS7061H R by Interpump delivers reliable industrial pumping performance with 17.6 kW power and 61 L/min flow capacity. Operating at 1450 rpm, this Italian-engineered pump generates 150 bar pressure, making it suitable for high-pressure cleaning, surface treatment, and manufacturing applications. Weighing 43 kg with compact 387 mm dimensions, the SS7061H R offers excellent space efficiency for production lines and mobile equipment. Available from 3G Electric Singapore, this industrial pump combines durability with consistent output for demanding commercial and industrial environments.

Spare Parts & Repair Kits

Official SS7061H parts list — 130 parts, 43 available in catalog

Official Parts List

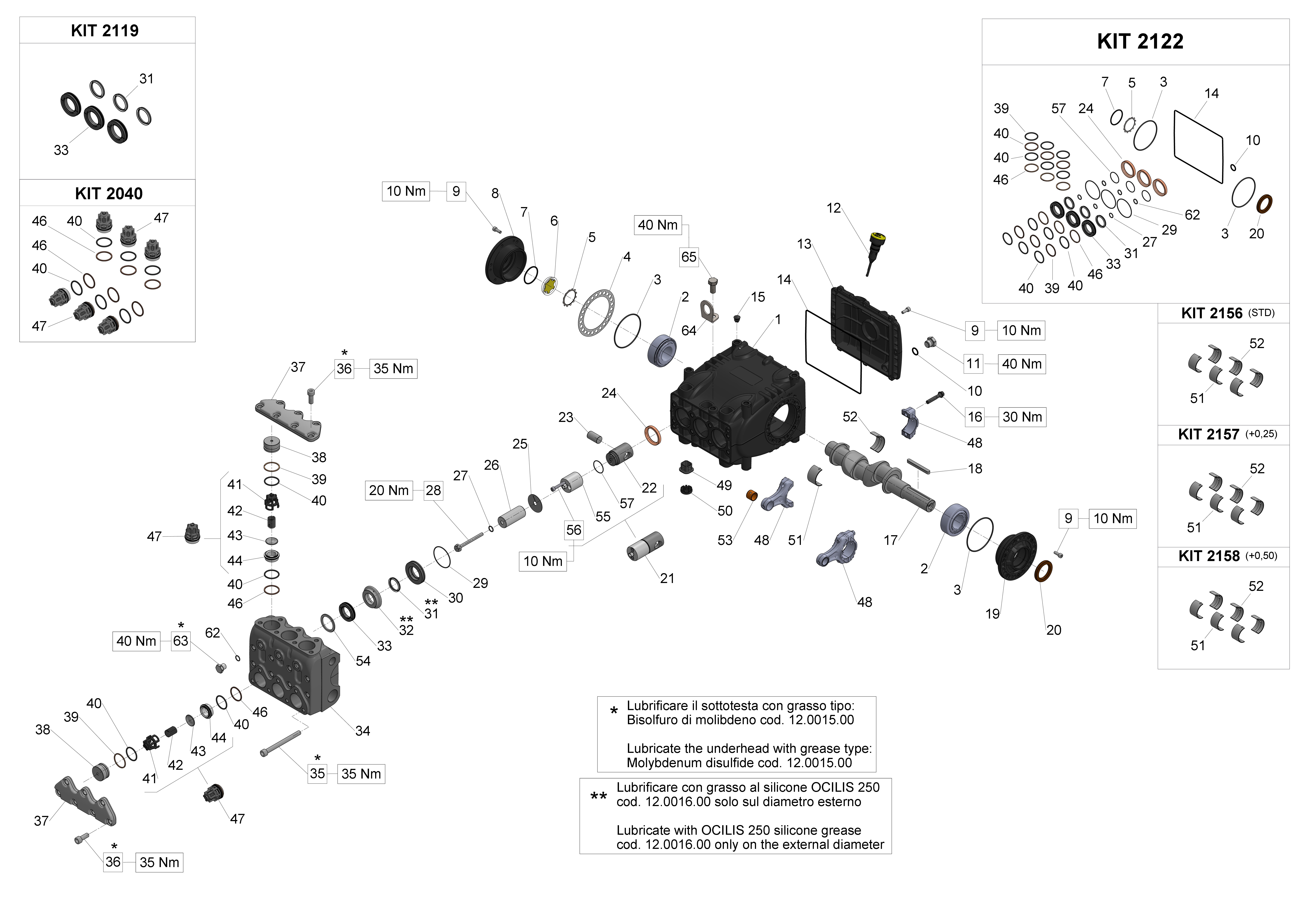

Exploded Diagram — Male shaft (key) - GASView full size
SS7061H — Male shaft (key) - GAS

Repair Kits — Order These for Routine Maintenance

KIT2156
KIT 2156*CONROD BUSHING
34215601×1Available
View
KIT2157
KIT 2157*CONROD BUSHINGS +0,25
34215701×1Available
View
KIT2158
KIT 2158*CONROD BUSHINGS +0,50
34215801×1Available
View

Individual Components

PosCodeDescriptionQty
1
CRANKCASE SS7061H
70010022×1Available
View
2
TAPER ROLLER BEARING 33207/Q
91847700×2Available
View
3
View
4
SHIM 0.25 MM.
70220381×1Available
View
4
SHIM 0.1 MM.
70220081×1Available
View
5
CIRCLIP D.45 (ZJ45)
90075600×1Available
View
6
OIL SIGHT GLASS
70211801×1Available
View
7
O-RING 39,34X2,62 (3156)
90387700×1Available
View
8
BEARING COVER (OIL GLASS SIDE)
70150122×1Available
View
10
O-RING 13,95X2,62 (3056)
90383300×1Available
View
11
PLUG G 3/8 X 13 STAINLESS
98210066×1Available
View
12
OIL DIPSTICK D.21,5X70
98211500×1Available
View
14
OR D.190.17X2.62 NBR 70SH
90394200×1Available
View
15
PLUG D. 15
98200500×1Available
View
16

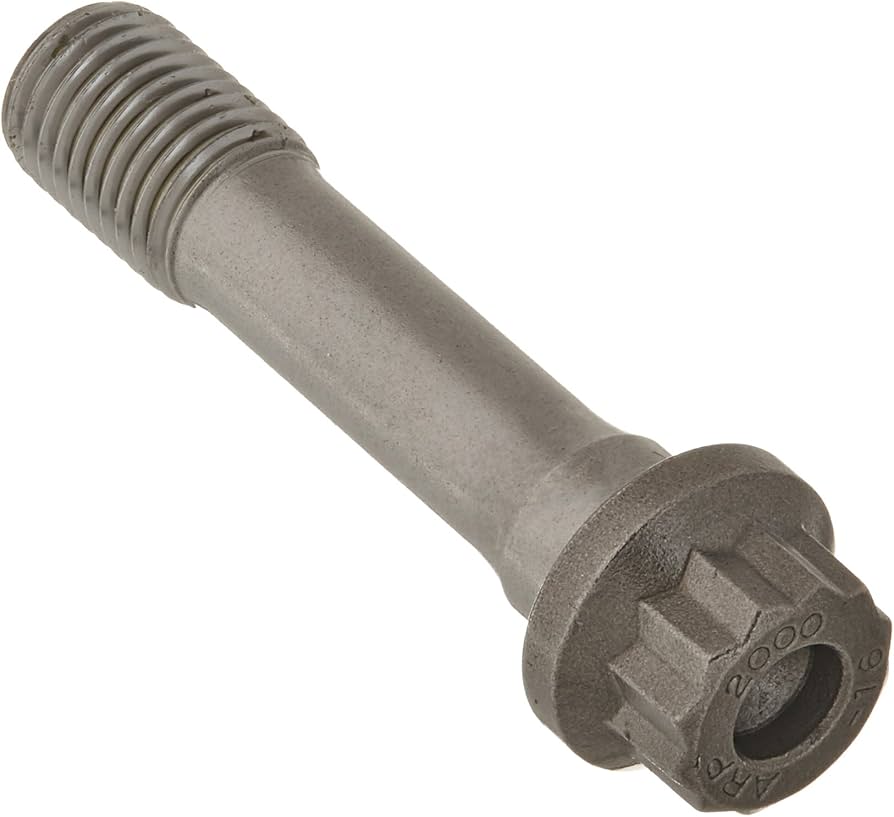

CONN.ROD BOLT M8X1X42
99312300×6Available
View
18
KEY 8h9X7X70 UNI 6604/A
91490000×1Available
View
19
BEARING COVER (PTO SIDE)
70150022×1Available
View
20
OIL SEAL D.35X52X7
90166800×1Available
View
21
PISTON GUIDE ASSY
70606801×3Available
View
22
PISTON GUIDE T.N.
70050115×3Available
View

Need multiple parts? Request a bundled quote

43 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official SS7061H parts list — Industrial Pumps (Stainless Steel Versions Series 64 SS)

Recommended Spare Parts

Spare Parts

OIL SEAL D.35X52X7

90166800

Spare Parts

O-RING 10,82X1,78 (2043)

90358500

Accessories

PLUG D. 15

98200500

Spare Parts

BEARING COVER (OIL GLASS SIDE)

70150122

Spare Parts

BEARING COVER (PTO SIDE)

70150022

Spare Parts

ANTI-EXTR.RING D.32.4X36.5X1.5

90518000

Spare Parts

OR D.190.17X2.62 NBR 70SH

90394200

Accessories

SCREW M 8x30 UNI 5931

99308400

Accessories

KEY 8h9X7X70 UNI 6604/A

91490000

Accessories

GUDGEON PIN D.18X36

97742000

Spare Parts

CONN.ROD BOLT M8X1X42

99312300

Spare Parts

PISTON GUIDE ROD

70050266
