Interpump PUMP SS7045 R

SKU 3G-ITP-00858

Brand
Interpump
Item
PUMP SS7045 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
45 L/min
Pressure
200 bar
Power
17.6 kW
Speed
1450 RPM
Weight
43 kg
Dimensions
387 mm
Power
24 HP
Flow (US)
11.9 GPM
Pressure
20 MPa
Pressure
2900 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump's PUMP SS7045 R is a robust industrial pump engineered for high-pressure applications requiring reliable performance. Delivering 17.6 kW (24 hp) at 1450 RPM, this Italian-manufactured unit generates 45 L/min flow at 200 bar (2900 psi), making it ideal for hydraulic systems, cleaning equipment, and industrial automation. Weighing 43 kg with compact dimensions of 387 mm, the SS7045 R combines efficiency with space-saving design. Built to Interpump's exacting standards, this pump withstands demanding operational environments across manufacturing, construction, and food processing sectors. Available from 3G Electric Singapore, an Interpump distributor, ensuring genuine products and comprehensive technical support.

Spare Parts & Repair Kits

Official SS7045 parts list — 81 parts, 40 available in catalog

Official Parts List

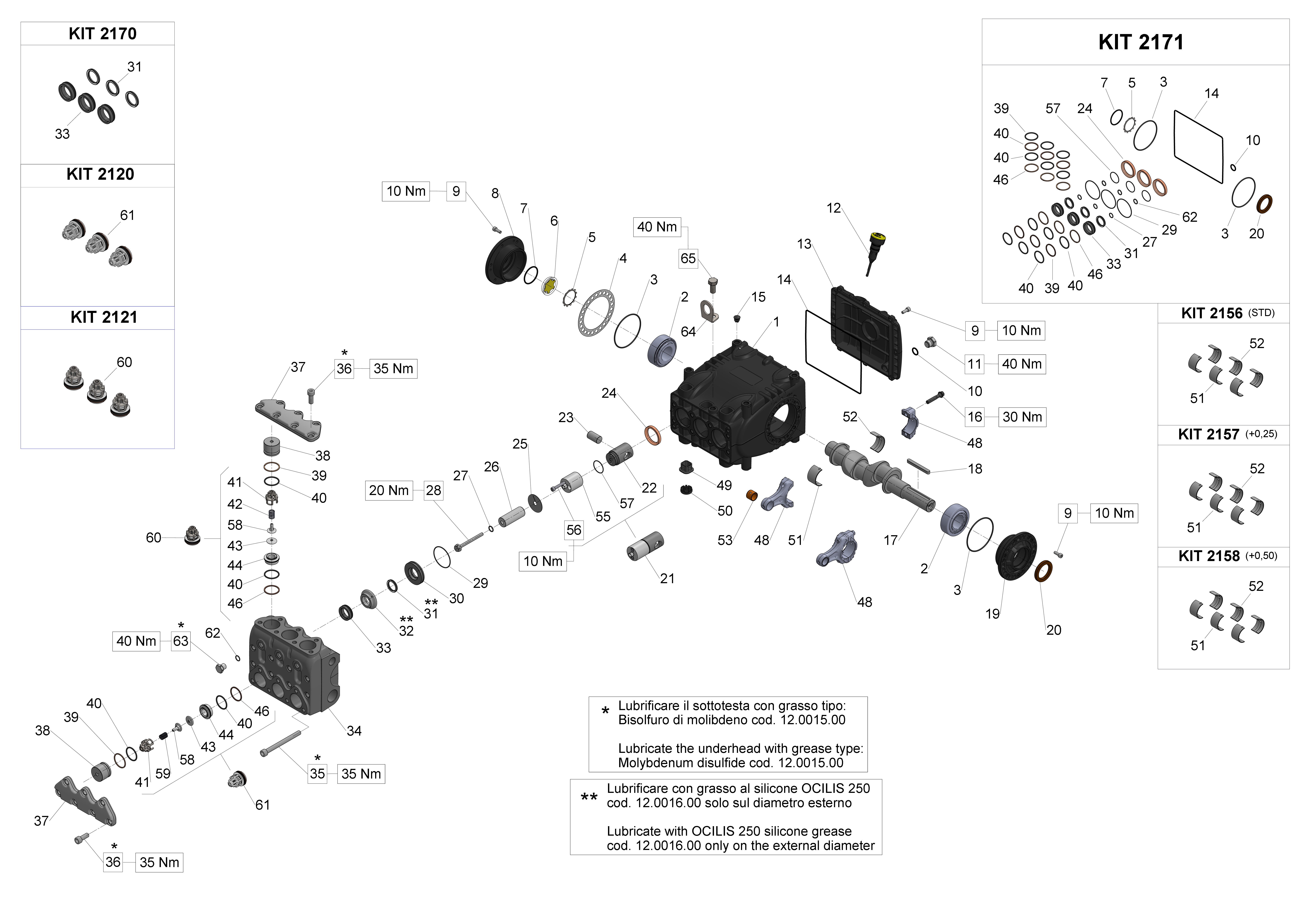

Exploded Diagram — Male shaft (key) - GASView full size
SS7045 — Male shaft (key) - GAS

Repair Kits — Order These for Routine Maintenance

KIT2156
KIT 2156*CONROD BUSHING
34215601×1Available
View
KIT2157
KIT 2157*CONROD BUSHINGS +0,25
34215701×1Available
View
KIT2158
KIT 2158*CONROD BUSHINGS +0,50
34215801×1Available
View

Individual Components

PosCodeDescriptionQty
1
CRANKCASE SS7045
70010022×1Available
View
2
TAPER ROLLER BEARING 33207/Q
91847700×2Available
View
3
O-RING D. 80.6X2.62 (3318)
90391500×2Available
View
4
SHIM 0.25 MM.
70220381×1Available
View
4
SHIM 0.1 MM. SS7045
70220081×1Available
View
5
CIRCLIP D.45 (ZJ45)
90075600×1Available
View
6
OIL SIGHT GLASS
70211801×1Available
View
7
O-RING 39,34X2,62 (3156)
90387700×1Available
View
8
BEARING COVER (OIL GLASS SIDE)
70150122×1Available
View
10
O-RING 13,95X2,62 (3056)
90383300×1Available
View
11
PLUG G 3/8 X 13 STAINLESS
98210066×1Available
View
12
OIL DIPSTICK D.21,5X70
98211500×1Available
View
14
OR D.190.17X2.62 NBR 70SH
90394200×1Available
View
15
PLUG D. 15
98200500×1Available
View
16
CONN.ROD BOLT M8X1X42
99312300×6Available
View
18
KEY 8h9X7X70 UNI 6604/A
91490000×1Available
View
19
BEARING COVER (PTO SIDE)
70150022×1Available
View
20
OIL SEAL D.35X52X7
90166800×1Available
View
21
PISTON GUIDE ASSY
70606801×3Available
View
22
PISTON GUIDE T.N.
70050115×3Available
View

Need multiple parts? Request a bundled quote

40 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official SS7045 parts list — Industrial Pumps (Stainless Steel Versions Series 70 SS)

Recommended Spare Parts

Spare Parts

OIL SEAL D.35X52X7

90166800

Spare Parts

O-RING 10,82X1,78 (2043)

90358500

Accessories

PLUG D. 15

98200500

Spare Parts

BEARING COVER (OIL GLASS SIDE)

70150122

Spare Parts

BEARING COVER (PTO SIDE)

70150022

Spare Parts

ANTI-EXTR.RING D.32.4X36.5X1.5

90518000

Spare Parts

OR D.190.17X2.62 NBR 70SH

90394200

Accessories

SCREW M 8x30 UNI 5931

99308400

Accessories

KEY 8h9X7X70 UNI 6604/A

91490000

Accessories

GUDGEON PIN D.18X36

97742000

Spare Parts

CONN.ROD BOLT M8X1X42

99312300

Spare Parts

PISTON GUIDE ROD

70050266
