Interpump PUMP SS3B2013 R

Technical Documents

(1)
1 Technical Document Available
Sign in or create an account to download

Complete Solution

Need installation, maintenance, or a bundled quote?
Our engineers can help with product selection, system design, installation, and ongoing service — all from one partner.
InterpumpPumps & Compressors
Available

Interpump PUMP SS3B2013 R

SKU 3G-ITP-00844

Brand
Interpump
Item
PUMP SS3B2013 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
13 L/min
Pressure
200 bar
Power
4.97 kW
Speed
1450 RPM
Weight
9.5 kg
Dimensions
273.5 mm
Power
6.8 HP
Flow (US)
3.43 GPM
Pressure
20 MPa
Pressure
2900 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump PUMP SS3B2013 R is a robust Italian-engineered industrial pump delivering 4.97 kW of power at 1450 RPM. This compact unit generates 13 liters per minute at maximum pressure of 200 bar, making it suitable for high-pressure applications in manufacturing, cleaning systems, and hydraulic operations. Weighing just 9.5 kg with compact dimensions of 273.5 mm, the pump offers excellent portability without compromising performance. The SS3B2013 R combines reliability with efficiency, backed by Interpump's established reputation in industrial pump manufacturing. Available from 3G Electric Singapore, an distributor providing quality industrial equipment solutions throughout the region.

Spare Parts & Repair Kits

Official SS3B2013 parts list — 61 parts, 61 available in catalog

Official Parts List

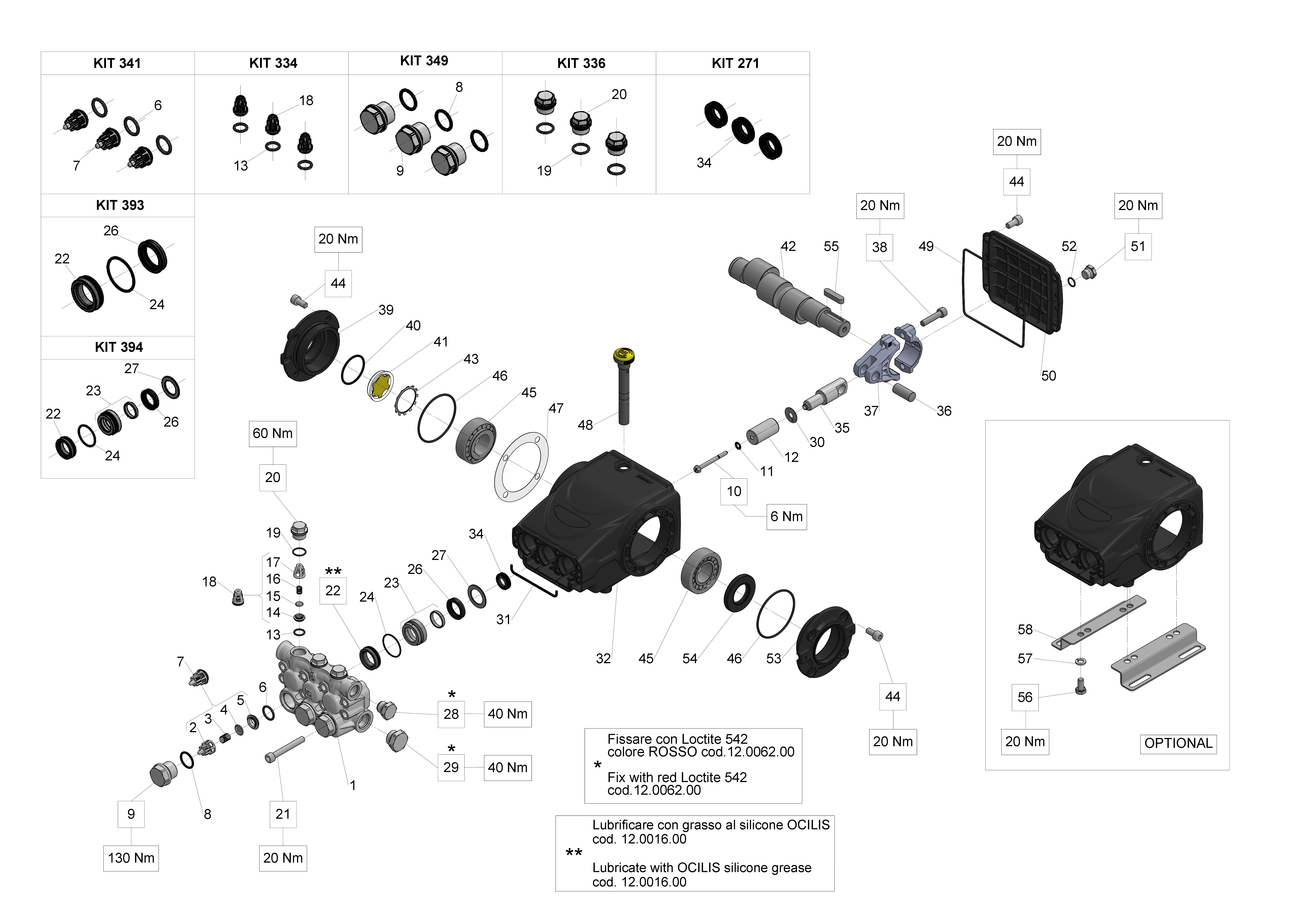

Exploded Diagram — Male shaft (key) - (plugs) - OUT OF PRODUCTIONView full size
SS3B2013 — Male shaft (key) - (plugs) - OUT OF PRODUCTION

Repair Kits — Order These for Routine Maintenance

KIT271
View
KIT334
KIT 334 OUTLET VALVES S.53SS
34033401×1Available
View
KIT336
View
KIT341
KIT 341 INLET VALVES S.53SS
34034101×1Available
View
KIT394
View

Individual Components

PosCodeDescriptionQty
2
VALVE CAGE
36202551×3Available
View
3
SPRING D.9.4X14.8 - S.S.
94737300×3Available
View
4
VALVE PLATE
36200176×3Available
View
5
VALVE SEAT STAINLESS (63SS)
36203666×3Available
View
6
O-RING 17,12X2,62 (3068)
90384100×3Available
View
7
VALVE ASSY (63 SS)
36713001×3Available
View
8
O-RING 20,29X2,62(3081)
90384700×3Available
View
9
PLUG M24X1,5X17 S.S.
98222900×3Available
View
10
SCREW M05X55 SPEC. A2-70
99169000×3Available
View
12
PISTON D.22X42
59040109×3Available
View
13
O-RING D. 12X2 (120-20)
90367400×3Available
View
14
VALVE SEAT - S.S.
53211166×3Available
View
15
SPHERICAL VALVE
36211276×3Available
View
16
SPRING D.6.2x10.5 S.S.
94733300×3Available
View
17
VALVE CAGE
36211151×3Available
View
18
OUTLET VALVE S.53 SS
36724501×3Available
View
19
O-RING 15,60X1,78 (2062)
90359300×3Available
View
20
PLUG M18X1,5X10 D23 F12 SS
98213720×3Available
View

Need multiple parts? Request a bundled quote

61 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official SS3B2013 parts list — Industrial Pumps (Stainless Steel Versions Series 59 SS3)

Recommended Spare Parts

Spare Parts

H.P. SEAL D.22X32X10 (66HT)

90231200

Valves

VALVE PLATE

36200176

Accessories

SCREW M8X16 - STAINLESS

99303800

Spare Parts

CONNECTING ROD COMPLETE

59030001

Accessories

KEY 8(h9)X7X35 UNI 6604/A

91489200

Spare Parts

SPONGE GASKET D.3X103

59211082

Spare Parts

O-RING 10,82X1,78 (2043)

90358500

Spare Parts

OIL SEAL D.15X24X5/7

90156550

Spare Parts

KIT 271 OIL SEAL D.15 58/59 SERIES

34027101

Spare Parts

GR. SUPP. GUARN + BOCCOLA D.22 (SW)

59607501

Spare Parts

SHIM D.74,5X104X0,1

97567800

Spare Parts

KIT 336 OUTLET VALVE PLUG S.53 SS

34033601
