Interpump PUMP SS1C1515 R

SKU 3G-ITP-00842

Brand
Interpump
Item
PUMP SS1C1515 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
15 L/min
Pressure
150 bar
Power
4.3 kW
Speed
1750 RPM
Weight
6 kg
Dimensions
200.5 mm
Power
5.8 HP
Flow (US)
3.96 GPM
Pressure
15 MPa
Pressure
2175 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump PUMP SS1C1515 R is a robust industrial pump engineered for demanding applications requiring reliable performance. Delivering 4.3 kW at 1750 RPM, this Italian-manufactured unit generates 15 L/min flow at 150 bar operating pressure, making it ideal for high-pressure cleaning, surface treatment, and industrial processing systems. Weighing only 6 kg with compact 200.5 mm dimensions, it offers excellent portability without compromising power. The pump's durable construction suits agriculture, manufacturing, and commercial sectors. Available from 3G Electric Singapore, an Interpump distributor.

Spare Parts & Repair Kits

Official SS1C1515 parts list — 123 parts, 64 available in catalog

Official Parts List

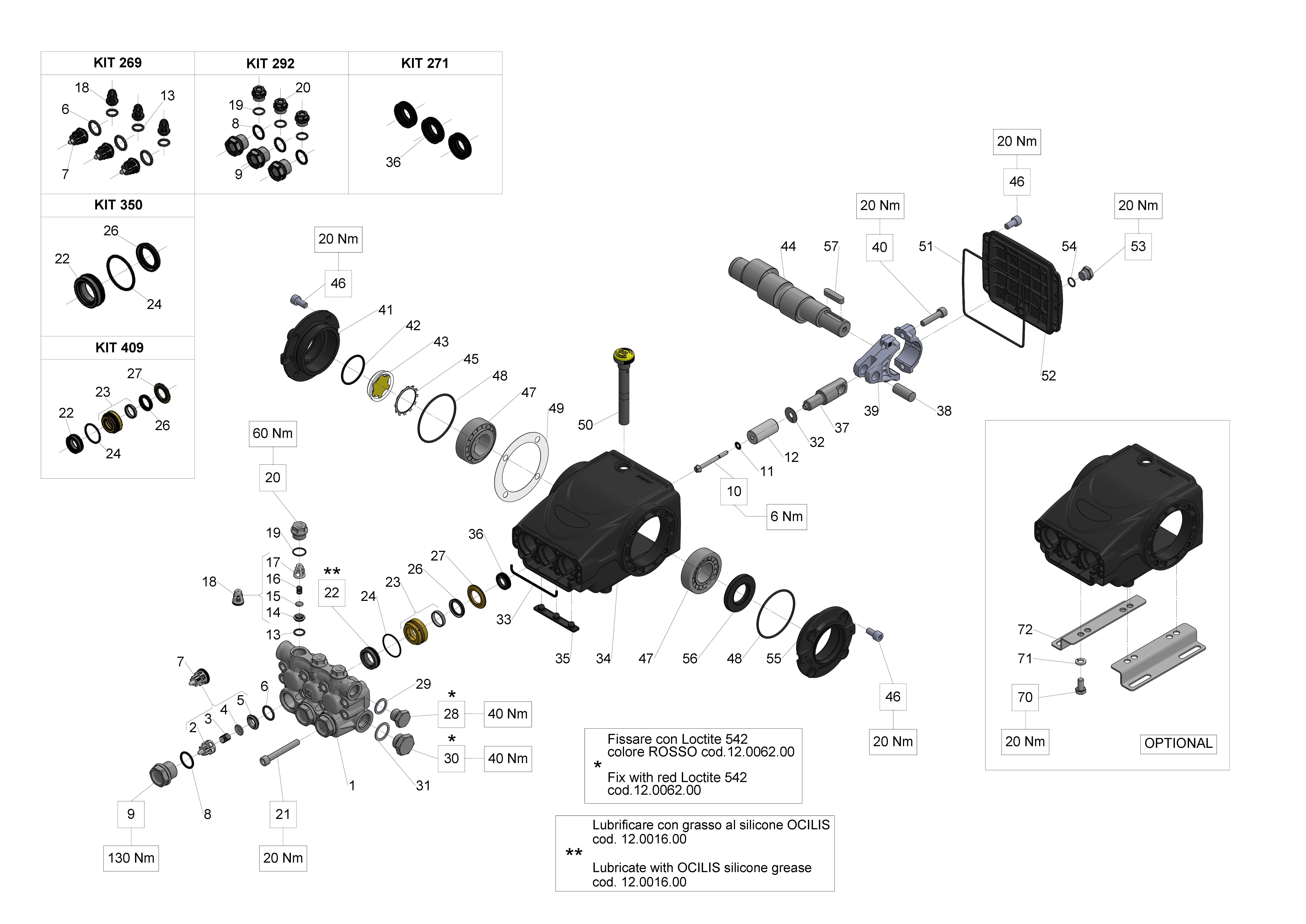

Exploded Diagram — Male shaft (key) - GASView full size
SS1C1515 — Male shaft (key) - GAS

Repair Kits — Order These for Routine Maintenance

KIT269
KIT 269 INTAKE/DELIVERY VALVES
34026901×1Available
View
KIT271
View
KIT292
View
KIT350
KIT 350 PACKING D. 20 S. 59 SS
34035001×1Available
View
KIT409
View

Individual Components

PosCodeDescriptionQty
2
VALVE CAGE
36202551×3Available
View
3
SPRING D. 9,4X14,8
94737600×3Available
View
4
VALVE PLATE
36200176×3Available
View
5
VALVE SEAT
36200366×3Available
View
6
O-RING 17,12X2,62 (3068)
90384100×3Available
View
7
INTAKE/DELIVERY VALVE
36711501×3Available
View
8
O-RING 20,29X2,62(3081)
90384700×3Available
View
9
VALVE CAP M24X1,5X17 NICKEL
98222500×3Available
View
10
SCREW M05X55 SPEC. A2-70
99169000×3Available
View
12
PISTON D. 20X42
59040009×3Available
View
13
O-RING D. 12X2 (120-20)
90367400×3Available
View
14
VALVE SEAT
36211366×3Available
View
15
SPHERICAL VALVE
36211276×3Available
View
16
SPRING D.6.2x10.5 S.S.
94733300×3Available
View
17
VALVE CAGE
36211151×3Available
View
18
OUTLET VALVE
36719301×3Available
View
19
O-RING 15,60X1,78 (2062)
90359300×3Available
View
20
PLUG M18X1,5X10 D.23 (NICK.)
98213750×3Available
View

Need multiple parts? Request a bundled quote

64 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official SS1C1515 parts list — Industrial Pumps (Stainless Steel Versions Series 53 SS1)

Recommended Spare Parts

Valves

VALVE PLATE

36200176

Spare Parts

KIT 350 PACKING D. 20 S. 59 SS

34035001

Spare Parts

CONNECTING ROD COMPLETE

59030001

Accessories

WASHER 21,5X27X1,5

96751400

Accessories

KEY 8(h9)X7X35 UNI 6604/A

91489200

Valves

VALVE CAP M24X1,5X17 NICKEL

98222500

Spare Parts

SEAL D.20X26.15 L.P.(66HT)

90225000

Spare Parts

SPONGE GASKET D.3X103

59211082

Spare Parts

KIT 269 INTAKE/DELIVERY VALVES

34026901

Spare Parts

O-RING 10,82X1,78 (2043)

90358500

Spare Parts

OIL SEAL D.15X24X5/7

90156550

Spare Parts

RING FOR PACKING D.20 HT

59211270
