Interpump PUMP SS1B1513 R

SKU 3G-ITP-00831

Brand
Interpump
Item
PUMP SS1B1513 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
13 L/min
Pressure
150 bar
Power
3.72 kW
Speed
1450 RPM
Weight
6 kg
Dimensions
200.5 mm
Power
5.1 HP
Flow (US)
3.43 GPM
Pressure
15 MPa
Pressure
2175 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump PUMP SS1B1513 R delivers reliable performance for industrial pumping applications requiring consistent output. This Italian-engineered pump operates at 1450 rpm, generating 13 l/min flow capacity with maximum pressure ratings of 150 bar, making it suitable for cleaning systems, hydraulic applications, and pressure washing equipment. Weighing just 6 kg with compact 200.5 mm dimensions, the unit integrates easily into space-constrained installations. The 3.72 kW motor provides efficient operation across demanding industrial environments. Available from 3G Electric Singapore, an Interpump distributor offering complete technical support and genuine parts availability for customers throughout the region.

Spare Parts & Repair Kits

Official SS1B1513 parts list — 62 parts, 62 available in catalog

Official Parts List

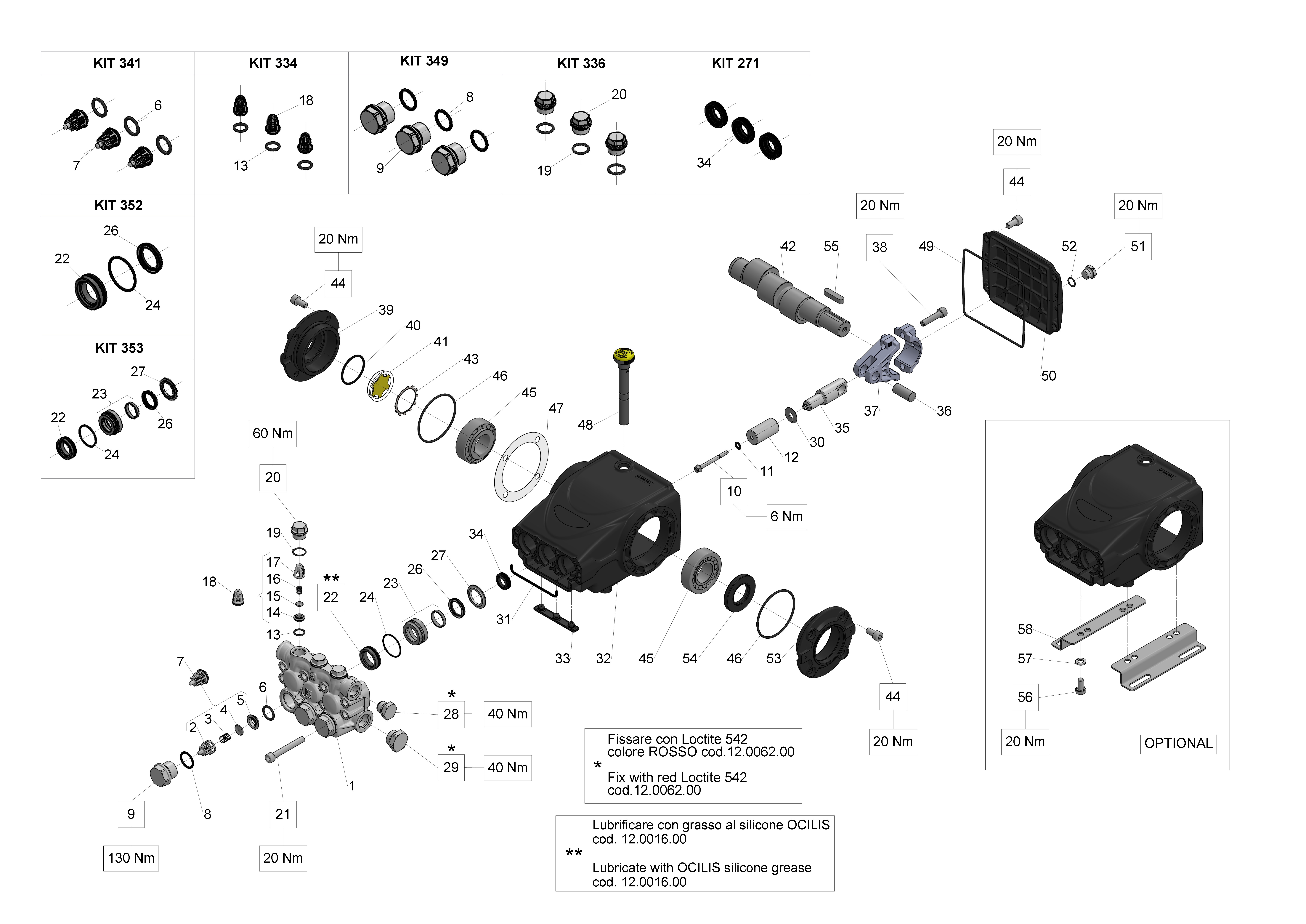

Exploded Diagram — Male shaft (key) - (plugs) - OUT OF PRODUCTIONView full size
SS1B1513 — Male shaft (key) - (plugs) - OUT OF PRODUCTION

Repair Kits — Order These for Routine Maintenance

KIT271
View
KIT334
KIT 334 OUTLET VALVES S.53SS
34033401×1Available
View
KIT336
View
KIT341
KIT 341 INLET VALVES S.53SS
34034101×1Available
View
KIT352
KIT 352 PACKING D. 22 S. 59 SS
34035201×1Available
View

Individual Components

PosCodeDescriptionQty
2
VALVE CAGE
36202551×3Available
View
3
SPRING D.9.4X14.8 - S.S.
94737300×3Available
View
4
VALVE PLATE
36200176×3Available
View
5
VALVE SEAT STAINLESS (63SS)
36203666×3Available
View
6
O-RING 17,12X2,62 (3068)
90384100×3Available
View
7
VALVE ASSY (63 SS)
36713001×3Available
View
8
O-RING 20,29X2,62(3081)
90384700×3Available
View
9
PLUG M24X1,5X17 S.S.
98222900×3Available
View
10
SCREW M05X55 SPEC. A2-70
99169000×3Available
View
12
PISTON D.22X42
59040109×3Available
View
13
O-RING D. 12X2 (120-20)
90367400×3Available
View
14
VALVE SEAT - S.S.
53211166×3Available
View
15
SPHERICAL VALVE
36211276×3Available
View
16
SPRING D.6.2x10.5 S.S.
94733300×3Available
View
17
VALVE CAGE
36211151×3Available
View
18
OUTLET VALVE S.53 SS
36724501×3Available
View
19
O-RING 15,60X1,78 (2062)
90359300×3Available
View
20
PLUG M18X1,5X10 D23 F12 SS
98213720×3Available
View

Need multiple parts? Request a bundled quote

62 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official SS1B1513 parts list — Industrial Pumps (Stainless Steel Versions Series 53 SS1)

Recommended Spare Parts

Spare Parts

H.P. SEAL D.22X32X10 (66HT)

90231200

Valves

VALVE PLATE

36200176

Accessories

SCREW M8X16 - STAINLESS

99303800

Spare Parts

CONNECTING ROD COMPLETE

59030001

Accessories

KEY 8(h9)X7X35 UNI 6604/A

91489200

Spare Parts

KIT 352 PACKING D. 22 S. 59 SS

34035201

Spare Parts

SPONGE GASKET D.3X103

59211082

Spare Parts

O-RING 10,82X1,78 (2043)

90358500

Spare Parts

OIL SEAL D.15X24X5/7

90156550

Spare Parts

KIT 271 OIL SEAL D.15 58/59 SERIES

34027101

Spare Parts

SHIM D.74,5X104X0,1

97567800

Spare Parts

KIT 336 OUTLET VALVE PLUG S.53 SS

34033601
