Interpump PUMP SN7091 R

SKU 3G-ITP-00797

Brand
Interpump
Item
PUMP SN7091 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
100 L/min
Pressure
100 bar
Power
18.4 kW
Speed
1450 RPM
Weight
43 kg
Dimensions
387 mm
Power
25 HP
Flow (US)
26.4 GPM
Pressure
10 MPa
Pressure
1450 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

PUMP SN7091 R is a robust industrial pump from Interpump, engineered for demanding applications requiring reliable fluid transfer. Delivering 18.4 kW of power with a 100 L/min flow rate, this Italian-manufactured unit operates at 1450 RPM and maintains consistent pressure at 100 bar. Weighing 43 kg with compact dimensions, it suits manufacturing, hydraulic systems, and processing industries. The pump's proven Interpump design ensures durability and performance in continuous operation. Available from 3G Electric Singapore, the PUMP SN7091 R (SKU: SN7091-000) provides efficient, cost-effective solutions for industrial pumping requirements across Southeast Asia.

Spare Parts & Repair Kits

Official SN7091 parts list — 89 parts, 44 available in catalog

Official Parts List

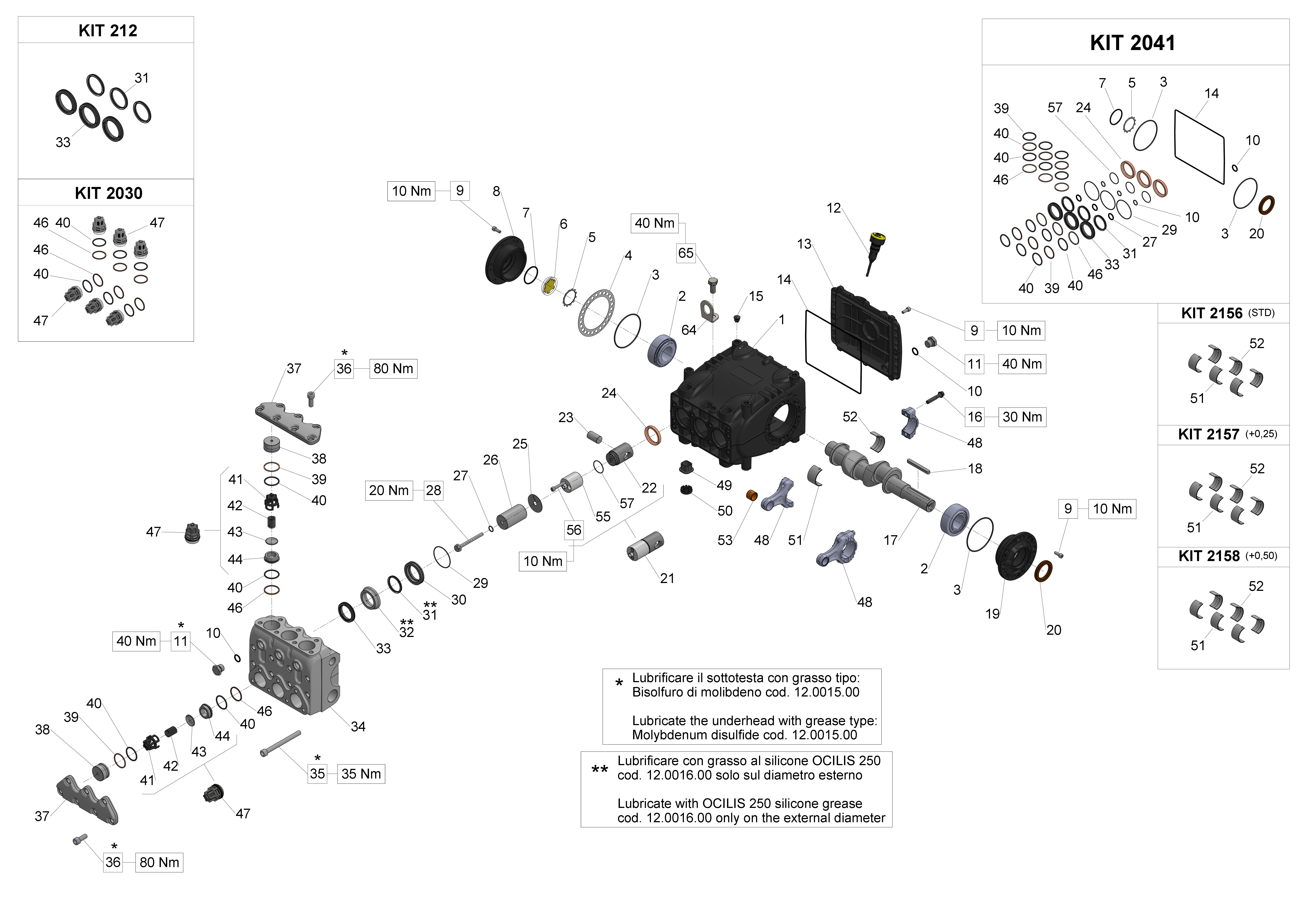

Exploded Diagram — Male shaft (key) - GASView full size
SN7091 — Male shaft (key) - GAS

Repair Kits — Order These for Routine Maintenance

KIT2156
KIT 2156*CONROD BUSHING
34215601×1Available
View
KIT2157
KIT 2157*CONROD BUSHINGS +0,25
34215701×1Available
View
KIT2158
KIT 2158*CONROD BUSHINGS +0,50
34215801×1Available
View

Individual Components

PosCodeDescriptionQty
1
CRANKCASE SN7091
70010022×1Available
View
2

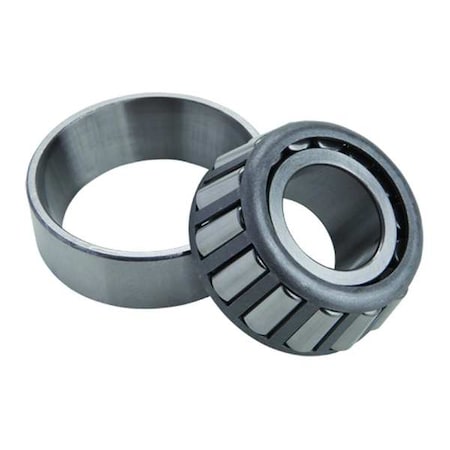

TAPER ROLLER BEARING 33207/Q
91847700×2Available
View
3
O-RING D. 80.6X2.62 (3318)
90391500×2Available
View
4
SHIM 0.25 MM.
70220381×1Available
View
4
SHIM 0.1 MM.
70220081×1Available
View
5
CIRCLIP D.45 (ZJ45)
90075600×1Available
View
6
OIL SIGHT GLASS
70211801×1Available
View
7
O-RING 39,34X2,62 (3156)
90387700×1Available
View
8
BEARING COVER (OIL GLASS SIDE)
70150122×1Available
View
9
SCREW M6X16 UNI 5931 8.8 Z.
99185400×20Available
View
10
O-RING 13,95X2,62 (3056)
90383300×4Available
View
11
PLUG G. 3/8X13 NICKEL
98209900×4Available
View
12
OIL DIPSTICK D.21,5X70
98211500×1Available
View
14
OR D.190.17X2.62 NBR 70SH
90394200×1Available
View
15
PLUG D. 15
98200500×1Available
View
16
CONN.ROD BOLT M8X1X42
99312300×6Available
View
18
KEY 8h9X7X70 UNI 6604/A
91490000×1Available
View
19
BEARING COVER (PTO SIDE)
70150022×1Available
View
20
OIL SEAL D.35X52X7
90166800×1Available
View
21
PISTON GUIDE ASSY
70606801×3Available
View

Need multiple parts? Request a bundled quote

44 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official SN7091 parts list — Industrial Pumps (Series 70)

Recommended Spare Parts

Spare Parts

O-RING 39,34X2,62 (3156)

90387700

Spare Parts

UPPER HALF CONROD BUSHING +0.5 (BIG END) S.70

90922200

Spare Parts

O-RING 29,82X2,62 (3118)

90386500

Spare Parts

ANTI-EXTR.RING D.32.4X36.5X1.5

90518000

Spare Parts

PISTON GUIDE T.N.

70050115

Spare Parts

OIL DIPSTICK D.21,5X70

98211500

Accessories

PLUG G. 3/8X13 NICKEL

98209900

Accessories

GUDGEON PIN D.18X36

97742000

Spare Parts

TAPER ROLLER BEARING 33207/Q

91847700

Spare Parts

KIT 2157*CONROD BUSHINGS +0,25

34215701

Spare Parts

KIT 2156*CONROD BUSHING

34215601

Spare Parts

KIT 2158*CONROD BUSHINGS +0,50

34215801
