Interpump PUMP SN7037 R

Technical Documents

(1)
1 Technical Document Available
Sign in or create an account to download

Complete Solution

Need installation, maintenance, or a bundled quote?
Our engineers can help with product selection, system design, installation, and ongoing service — all from one partner.
InterpumpPumps & Compressors
Available

Interpump PUMP SN7037 R

SKU 3G-ITP-00784

Brand
Interpump
Item
PUMP SN7037 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
37 L/min
Pressure
250 bar
Power
18.4 kW
Speed
1450 RPM
Weight
43 kg
Dimensions
387 mm
Power
25 HP
Flow (US)
9.8 GPM
Pressure
25 MPa
Pressure
3620 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump PUMP SN7037 R is a heavy-duty industrial pump engineered for demanding applications requiring reliable performance. Delivering 25 hp (18.4 kW) at 1450 rpm, this Italian-manufactured unit generates 37 l/min flow capacity at 250 bar pressure (3620 psi), making it suitable for high-pressure hydraulic systems in manufacturing, construction, and industrial processing. Weighing 43 kg with compact dimensions, the SN7037-000 offers efficient power delivery for critical operations. This Interpump industrial pump is available from 3G Electric Singapore, an distributor providing technical support and genuine equipment to industrial customers across the region.

Spare Parts & Repair Kits

Official SN7037 parts list — 87 parts, 43 available in catalog

Official Parts List

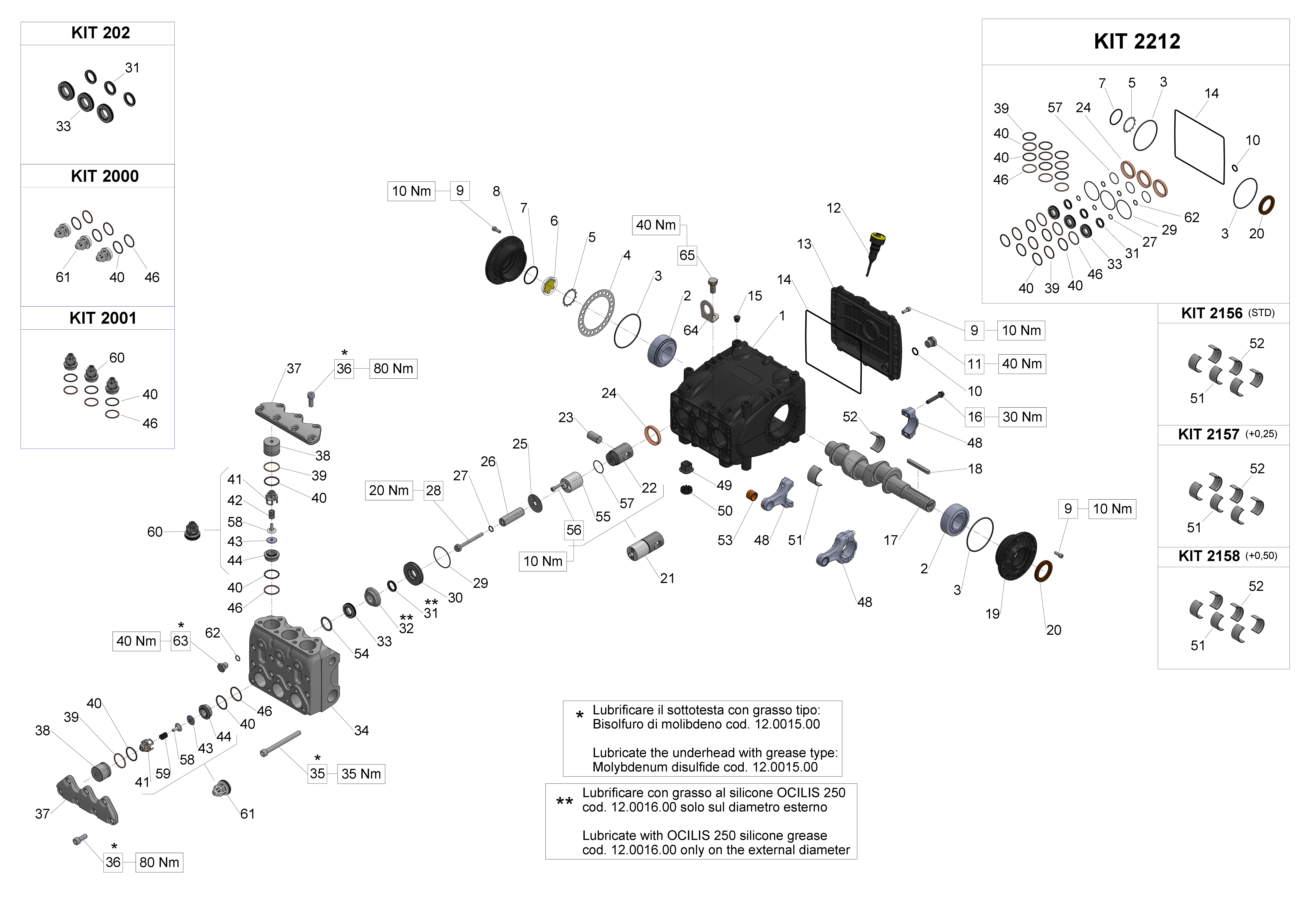

Exploded Diagram — Male shaft (key) - GASView full size
SN7037 — Male shaft (key) - GAS

Repair Kits — Order These for Routine Maintenance

KIT202
KIT 202 SEALS D. 22 HT
34020201×1Available
View
KIT2156
KIT 2156*CONROD BUSHING
34215601×1Available
View
KIT2157
KIT 2157*CONROD BUSHINGS +0,25
34215701×1Available
View
KIT2158
KIT 2158*CONROD BUSHINGS +0,50
34215801×1Available
View

Individual Components

PosCodeDescriptionQty
1
CRANKCASE SN7037
70010022×1Available
View
2
TAPER ROLLER BEARING 33207/Q
91847700×2Available
View
3
O-RING D. 80.6X2.62 (3318)
90391500×2Available
View
4
SHIM 0.25 MM.
70220381×1Available
View
4
SHIM 0.1 MM.
70220081×1Available
View
5
CIRCLIP D.45 (ZJ45) SN7037
90075600×1Available
View
6
OIL SIGHT GLASS
70211801×1Available
View
7
O-RING 39,34X2,62 (3156)
90387700×1Available
View
8
BEARING COVER (OIL GLASS SIDE)
70150122×1Available
View
9
SCREW M6X16 UNI 5931 8.8 Z.
99185400×20Available
View
10
O-RING 13,95X2,62 (3056)
90383300×1Available
View
11
PLUG G. 3/8X13 NICKEL
98209900×1Available
View
12
OIL DIPSTICK D.21,5X70
98211500×1Available
View
14
OR D.190.17X2.62 NBR 70SH
90394200×1Available
View
15
PLUG D. 15
98200500×1Available
View
16
CONN.ROD BOLT M8X1X42
99312300×6Available
View
18
KEY 8h9X7X70 UNI 6604/A
91490000×1Available
View
19
BEARING COVER (PTO SIDE)
70150022×1Available
View
20
OIL SEAL D.35X52X7
90166800×1Available
View
21
PISTON GUIDE ASSY
70606801×3Available
View

Need multiple parts? Request a bundled quote

43 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official SN7037 parts list — Industrial Pumps (Series 53 E1)

Recommended Spare Parts

Spare Parts

O-RING 39,34X2,62 (3156)

90387700

Spare Parts

STAFFA DI SOLLEVAMENTO

71223074

Spare Parts

UPPER HALF CONROD BUSHING (BIG END) S.70

90922000

Accessories

PLUG CAP

71225951

Spare Parts

O-RING 29,82X2,62 (3118)

90386500

Spare Parts

O-RING D. 50,52X1,78 (2200)

90362600

Accessories

GUDGEON PIN D.18X36

97742000

Spare Parts

OIL SIGHT GLASS

70211801

Spare Parts

KIT 2157*CONROD BUSHINGS +0,25

34215701

Accessories

PLUG G. 3/8X13 NICKEL

98209900

Spare Parts

O-RING 13,95X2,62 (3056)

90383300

Accessories

CIRCLIP D.45 (ZJ45)

90075600
