Interpump PUMP FE5101 R

SKU 3G-ITP-00761

Brand
Interpump
Item
PUMP FE5101 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
1 L/min
Pressure
100 bar
Power
0.21 kW
Speed
1450 RPM
Weight
5.2 kg
Dimensions
177 mm
Power
0.28 HP
Flow (US)
0.26 GPM
Pressure
10 MPa
Pressure
1450 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

PUMP FE5101 R by Interpump delivers reliable performance for industrial applications requiring compact, efficient pumping solutions. This Italian-engineered industrial pump operates at 1450 rpm, generating 100 bar pressure with a 1 liter per minute flow rate. Rated at 0.21 kW (0.28 hp) and weighing just 5.2 kg, the FE5101 R suits cleaning systems, pressure washing equipment, and small-scale industrial processes where space constraints and low power consumption are priorities. Available from 3G Electric Singapore, SKU FE5101-000, this Interpump pump provides durable engineering backed by Italian manufacturing standards.

Spare Parts & Repair Kits

Official FE5101 parts list — 64 parts, 30 available in catalog

Official Parts List

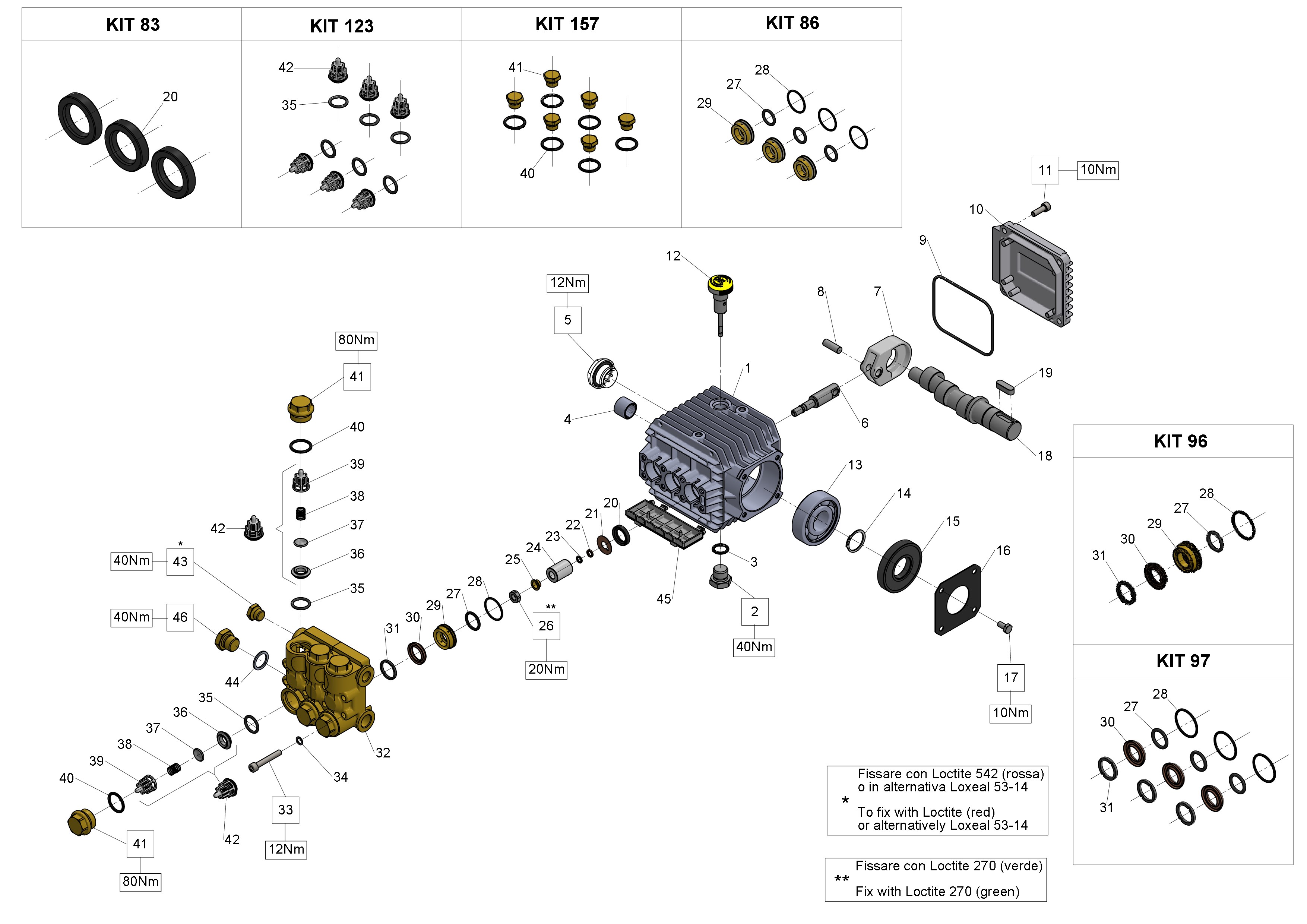

Exploded Diagram — Male shaft (key) - GASView full size
FE5101 — Male shaft (key) - GAS

Repair Kits — Order These for Routine Maintenance

KIT123
KIT 123 INTAKE/DELIVERY VALVE
34012301×1Available
View

Individual Components

PosCodeDescriptionQty
2
PLUG G3/8x13 TE22
98210050×1Available
View
3
O-RING 13,95X2,62 (3056)
90383300×1Available
View
5
OIL LEVEL INDICATOR G3/4X15
97596800×1Available
View
11
SCREW M 6x18 UNI 5931
99186700×4Available
View
12
OIL DIP-STICK G3/8X51
98210300×1Available
View
14
CIRCLIP D. 25 UNI 7435 FE5101
90063500×1Available
View
15
OIL SEAL D.25X62X10
90164100×1Available
View
16
CRANKCASE COVER
50150074×1Available
View
17
SCREW M 6x12 UNI 5739
99180700×4Available
View
19
KEY 8(h9)X7X25 UNI 6604/A
91487700×1Available
View
22
ANTI-EXTRUSION RING
90502200×3Available
View
23
O-RING D. 5,28X1,78 (2021)
90357300×3Available
View
25
WASHER D. 8
44211570×3Available
View
26
NUT M8X13X5
92221600×3Available
View
27
O-RING 15,08X2,62 (119)
90383500×3Available
View
28
O-RING 25,12X1,78 (2100)
90360400×3Available
View
30
PACKING D. 15X25X5/3,1
90262000×3Available
View
31
HEAD RING D. 15
51100051×3Available
View
34
WASHER 6,4X10X0,7
96693800×8Available
View
35
O-RING 17,12X2,62 (3068)
90384100×6Available
View

Need multiple parts? Request a bundled quote

30 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official FE5101 parts list — Industrial Pumps (Misting Versions)

Recommended Spare Parts

Spare Parts

ANTI-EXTRUSION RING

90502200

Accessories

SCREW M 6x12 UNI 5739

99180700

Spare Parts

O-RING 25,12X1,78 (2100)

90360400

WASHER 17,5X23X1,5 C2W2011

Accessories

WASHER 17,5X23X1,5 C2W2011

96738000

Spare Parts

O-RING 20,29X2,62(3081)

90384700

Accessories

PLUG G1/4X9

98204100

Accessories

NUT M8X13X5

92221600

Spare Parts

OIL DIP-STICK G3/8X51

98210300

Accessories

WASHER 6,4X10X0,7

96693800

Spare Parts

HEAD RING D. 15

51100051

Valves

INTAKE/DELIVERY VALVE

36711501

Spare Parts

KIT 123 INTAKE/DELIVERY VALVE

34012301
