Interpump PUMP E3E2815 R

Technical Documents

(1)
1 Technical Document Available
Sign in or create an account to download

Complete Solution

Need installation, maintenance, or a bundled quote?
Our engineers can help with product selection, system design, installation, and ongoing service — all from one partner.
InterpumpPumps & Compressors
Available

Interpump PUMP E3E2815 R

SKU 3G-ITP-00734

Brand
Interpump
Item
PUMP E3E2815 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
15 L/min
Pressure
275 bar
Power
7.87 kW
Speed
3400 RPM
Weight
9.5 kg
Dimensions
265 mm
Power
10.7 HP
Flow (US)
3.96 GPM
Pressure
27.5 MPa
Pressure
4000 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump PUMP E3E2815 R is a high-pressure industrial pump engineered for demanding applications. Delivering 7.87 kW of power at 3,400 RPM, this Italian-manufactured unit operates at maximum pressures of 275 bar (4,000 PSI) with a flow rate of 15 L/min. Weighing only 9.5 kg, it combines compact dimensions with robust performance, making it ideal for hydraulic systems, cleaning equipment, and industrial machinery requiring reliable high-pressure capabilities. The pump's proven design ensures consistent operation across manufacturing, automotive, and food processing sectors. Available from 3G Electric Singapore, the PUMP E3E2815 R offers authoritative performance backed by Interpump's engineering excellence.

Spare Parts & Repair Kits

Official E3E2815 parts list — 180 parts, 67 available in catalog

Official Parts List

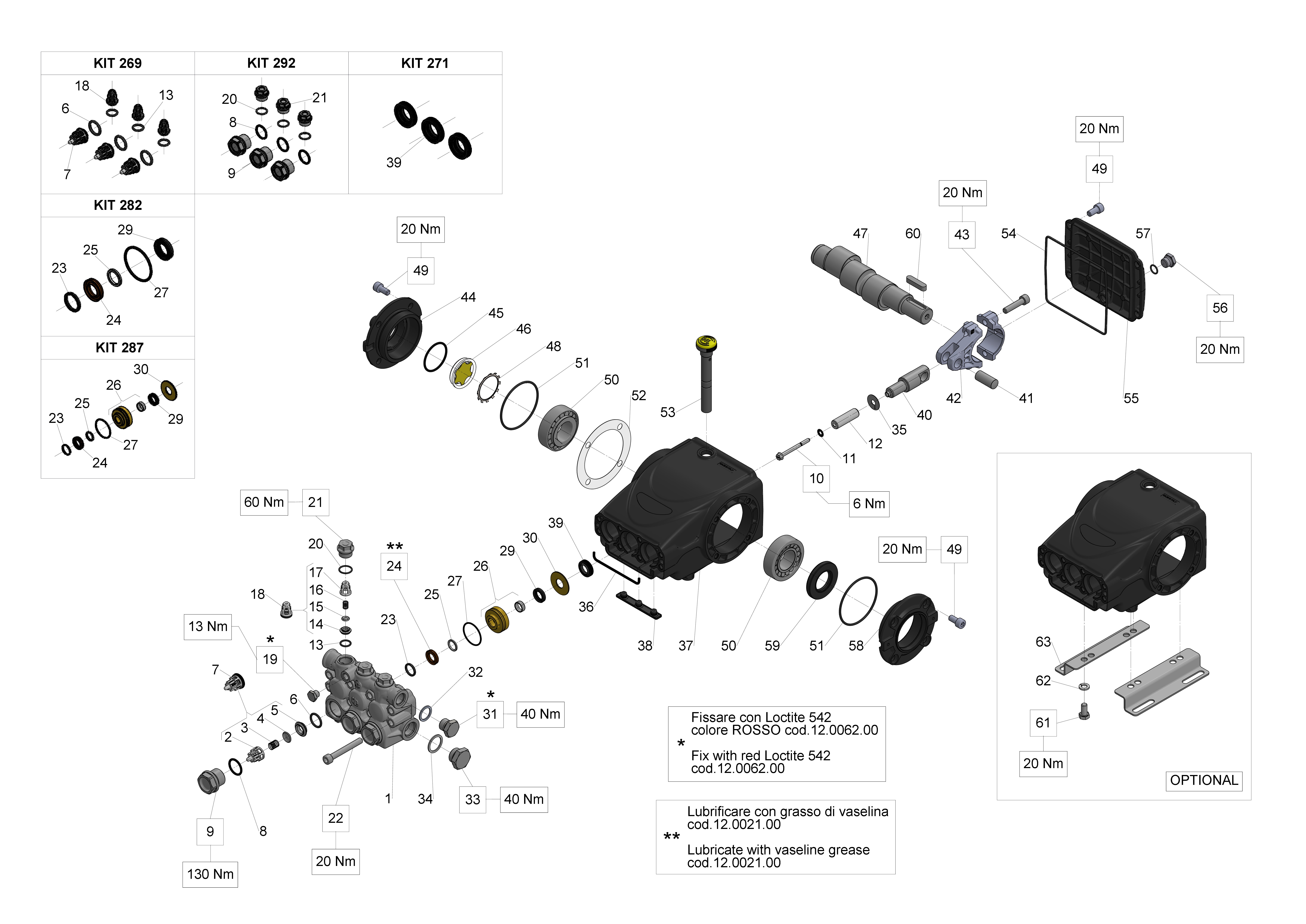

Exploded Diagram — Male shaft (key)View full size
E3E2815 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT269
KIT 269 INTAKE/DELIVERY VALVES
34026901×1Available
View
KIT271
View
KIT282
KIT 282 PACKING D.13 59 SERIES
34028201×1Available
View
KIT287
KIT 287 CPL.SEAL D.13 59 SER.
34028701×1Available
View
KIT292
View

Individual Components

PosCodeDescriptionQty
1
View
2
VALVE CAGE
36202551×3Available
View
3
SPRING D. 9,4X14,8
94737600×3Available
View
4
VALVE PLATE
36200176×3Available
View
5
VALVE SEAT
36200366×3Available
View
6
O-RING 17,12X2,62 (3068)
90384100×3Available
View
7
INTAKE/DELIVERY VALVE
36711501×3Available
View
8
O-RING 20,29X2,62(3081)
90384700×3Available
View
9
VALVE CAP M24X1,5X17 NICKEL
98222500×3Available
View
10
SCREW M05X55 SPEC. A2-70
99169000×3Available
View
12
PISTON D.13X42
58040009×3Available
View
13
O-RING D. 12X2 (120-20)
90367400×3Available
View
14
VALVE SEAT
36211366×3Available
View
15
SPHERICAL VALVE
36211276×3Available
View
16
SPRING D.6.2x10.5 S.S.
94733300×3Available
View
17
VALVE CAGE
36211151×3Available
View
18
OUTLET VALVE
36719301×3Available
View
19
PLUG G 1/8 X 8 NICKEL
98196700×1Available
View
20
O-RING 15,60X1,78 (2062)
90359300×3Available
View

Need multiple parts? Request a bundled quote

67 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official E3E2815 parts list — Industrial Pumps (Series 59 E3)

Recommended Spare Parts

Spare Parts

O-RING 8,73X1,78 - (108)

90358100

Spare Parts

PACKING D.13X20X5 LP

90260100

Accessories

CIRCLIP D. 62 UNI 7437

90085000

Valves

VALVE PLATE

36200176

Spare Parts

ANTI-EXTR.RING D.13X21X3

90507650

Spare Parts

HEAD RING D. 13

44100251

Spare Parts

CONNECTING ROD COMPLETE

59030001

Accessories

WASHER 21,5X27X1,5

96751400

Spare Parts

INLET NIPPLE G 3/4

36318251

Spare Parts

SPRING D.6.4X12.5

94733400

Spare Parts

NIPPLE D.3 G3/8F

36348970

Accessories

WASHER 10,5X16X1

96710400
