Interpump PUMP E3E2813 R

SKU 3G-ITP-00729

Brand
Interpump
Item
PUMP E3E2813 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
13 L/min
Pressure
275 bar
Power
6.84 kW
Speed
3400 RPM
Weight
9.5 kg
Dimensions
265 mm
Power
9.3 HP
Flow (US)
3.43 GPM
Pressure
27.5 MPa
Pressure
4000 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump PUMP E3E2813 R delivers robust performance for demanding industrial applications requiring high-pressure fluid transfer. Operating at 3400 RPM, this Italian-engineered pump generates 6.84 kW of power while maintaining consistent 13 L/min flow capacity at 275 bar pressure rating. Weighing just 9.5 kg with compact 265mm dimensions, it suits confined installation spaces in manufacturing, construction, and hydraulic systems. The unit's 4000 PSI pressure specification ensures reliable operation in heavy-duty environments. Available from 3G Electric Singapore, an Interpump distributor, this industrial pump provides dependable solutions for businesses throughout Southeast Asia.

Spare Parts & Repair Kits

Official E3E2813 parts list — 181 parts, 67 available in catalog

Official Parts List

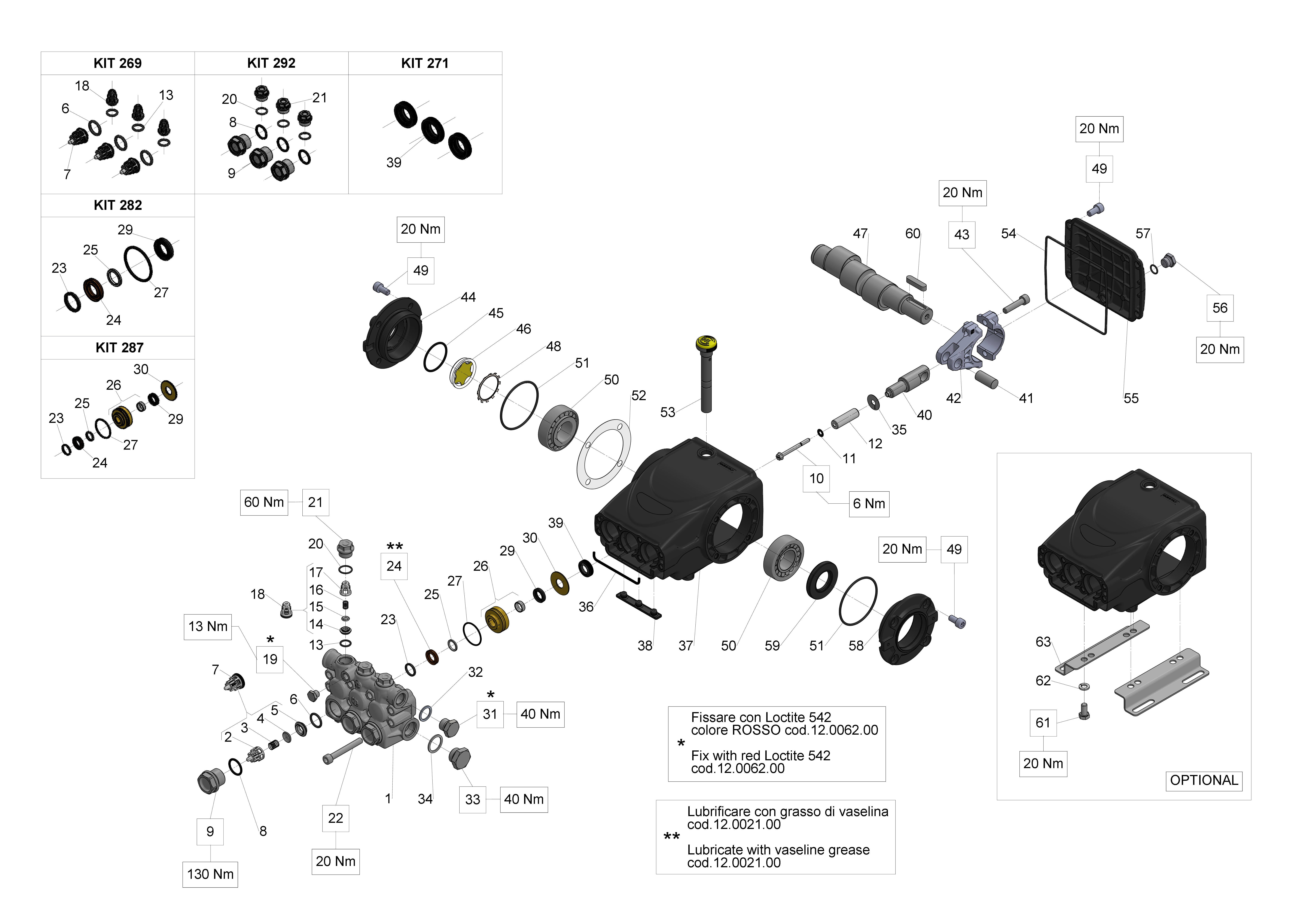

Exploded Diagram — Male shaft (key)View full size
E3E2813 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT269
KIT 269 INTAKE/DELIVERY VALVES
34026901×1Available
View
KIT271
View
KIT282
KIT 282 PACKING D.13 59 SERIES
34028201×1Available
View
KIT287
KIT 287 CPL.SEAL D.13 59 SER.
34028701×1Available
View
KIT292
View

Individual Components

PosCodeDescriptionQty
1
View
2
VALVE CAGE
36202551×3Available
View
3
SPRING D. 9,4X14,8
94737600×3Available
View
4
VALVE PLATE
36200176×3Available
View
5
VALVE SEAT
36200366×3Available
View
6
O-RING 17,12X2,62 (3068)
90384100×3Available
View
7
INTAKE/DELIVERY VALVE
36711501×3Available
View
8
O-RING 20,29X2,62(3081)
90384700×3Available
View
9
VALVE CAP M24X1,5X17 NICKEL
98222500×3Available
View
10
SCREW M05X55 SPEC. A2-70
99169000×3Available
View
12
PISTON D.13X42
58040009×3Available
View
13
O-RING D. 12X2 (120-20)
90367400×3Available
View
14
VALVE SEAT
36211366×3Available
View
15
SPHERICAL VALVE
36211276×3Available
View
16
SPRING D.6.2x10.5 S.S.
94733300×3Available
View
17
VALVE CAGE
36211151×3Available
View
18
OUTLET VALVE
36719301×3Available
View
19
PLUG G 1/8 X 8 NICKEL
98196700×1Available
View
20
O-RING 15,60X1,78 (2062)
90359300×3Available
View

Need multiple parts? Request a bundled quote

67 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official E3E2813 parts list — Industrial Pumps (Series 59 E3)

Recommended Spare Parts

Spare Parts

O-RING 8,73X1,78 - (108)

90358100

Spare Parts

PACKING D.13X20X5 LP

90260100

Accessories

CIRCLIP D. 62 UNI 7437

90085000

Valves

VALVE PLATE

36200176

Spare Parts

ANTI-EXTR.RING D.13X21X3

90507650

Spare Parts

HEAD RING D. 13

44100251

Spare Parts

CONNECTING ROD COMPLETE

59030001

Accessories

WASHER 21,5X27X1,5

96751400

Spare Parts

INLET NIPPLE G 3/4

36318251

Spare Parts

SPRING D.6.4X12.5

94733400

Spare Parts

NIPPLE D.3 G3/8F

36348970

Accessories

WASHER 10,5X16X1

96710400
