Interpump PUMP E3A1713 R

Technical Documents

(1)
1 Technical Document Available
Sign in or create an account to download

Complete Solution

Need installation, maintenance, or a bundled quote?
Our engineers can help with product selection, system design, installation, and ongoing service — all from one partner.
InterpumpPumps & Compressors
Available

Interpump PUMP E3A1713 R

SKU 3G-ITP-00612

Brand
Interpump
Item
PUMP E3A1713 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
13 L/min
Pressure
170 bar
Power
4.19 kW
Speed
1000 RPM
Weight
9.5 kg
Dimensions
265 mm
Power
5.7 HP
Flow (US)
3.43 GPM
Pressure
17 MPa
Pressure
2465 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump PUMP E3A1713 R is a robust industrial pump engineered for demanding high-pressure applications. Delivering 4.19 kW at 1000 RPM, this Italian-manufactured unit generates 170 bar pressure and 13 L/min flow rate, making it ideal for hydraulic systems, cleaning equipment, and industrial machinery requiring reliable performance. The compact 265 mm design and 9.5 kg weight facilitate straightforward installation in space-constrained environments. Built to exacting standards, this Interpump industrial pump provides consistent operation across manufacturing, automotive, and construction sectors. Available from 3G Electric Singapore, your Interpump distributor offering technical support and genuine spare parts.

Spare Parts & Repair Kits

Official E3A1713 parts list — 112 parts, 67 available in catalog

Official Parts List

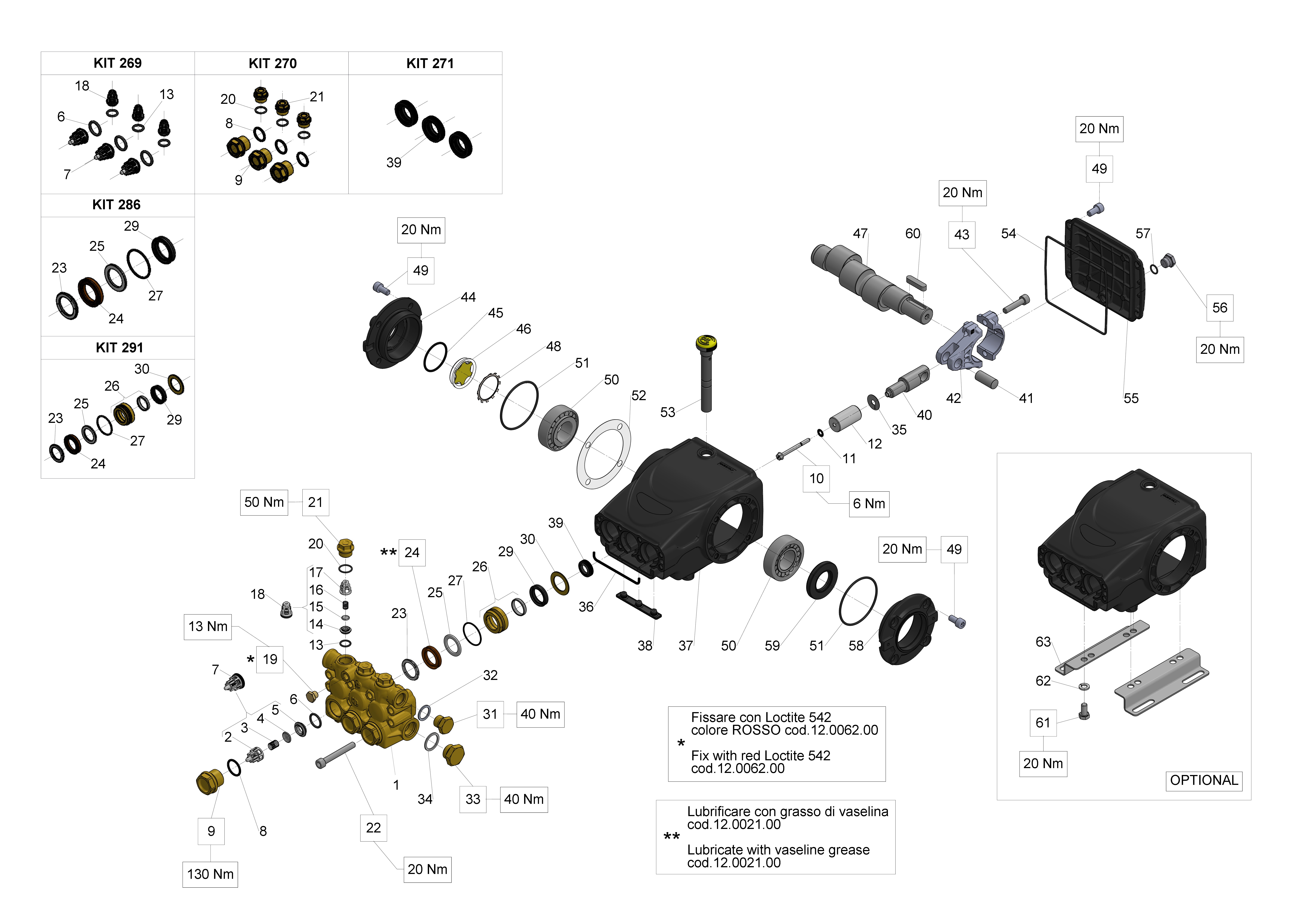

Exploded Diagram — Male shaft (key)View full size
E3A1713 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT269
KIT 269 INTAKE/DELIVERY VALVES
34026901×1Available
View
KIT270
KIT 270 VALVE PLUGS 58 SERIES
34027001×1Available
View
KIT271
View
KIT286
KIT 286 PACKING D.22 58 SERIES
34028601×1Available
View
KIT291
View

Individual Components

PosCodeDescriptionQty
1
View
2
VALVE CAGE
36202551×3Available
View
3
SPRING D. 9,4X14,8
94737600×3Available
View
4
VALVE PLATE
36200176×3Available
View
5
VALVE SEAT
36200366×3Available
View
6
O-RING 17,12X2,62 (3068)
90384100×3Available
View
7
INTAKE/DELIVERY VALVE
36711501×3Available
View
8
O-RING 20,29X2,62(3081)
90384700×3Available
View
9
VALVE CAP M24X1,5X17
98222600×3Available
View
10
SCREW M05X55 SPEC. A2-70
99169000×3Available
View
12
PISTON D.22X42
59040109×3Available
View
13
O-RING D. 12X2 (120-20)
90367400×3Available
View
14
VALVE SEAT
36211366×3Available
View
15
SPHERICAL VALVE
36211276×3Available
View
16
SPRING D.6.2x10.5 S.S.
94733300×3Available
View
17
VALVE CAGE
36211151×3Available
View
18
OUTLET VALVE
36719301×3Available
View
19
PLUG G1/8X8
98196600×1Available
View
20
O-RING 15,60X1,78 (2062)
90359300×3Available
View

Need multiple parts? Request a bundled quote

67 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official E3A1713 parts list — Industrial Pumps (Series 59 E3)

Recommended Spare Parts

Valves

VALVE PLATE

36200176

Accessories

PLUG G3/8X13

98210000

Spare Parts

CONNECTING ROD COMPLETE

59030001

Accessories

WASHER 21,5X27X1,5

96751400

Spare Parts

INLET NIPPLE G 3/4

36318251

Spare Parts

SPRING D.6.4X12.5

94733400

Valves

VALVE CAP M18X1,5X10

98213700

Spare Parts

NIPPLE D.3 G3/8F

36348970

Accessories

KEY 8(h9)X7X35 UNI 6604/A

91489200

Spare Parts

SHUTTER WITH HOSE FITTING

36334270

Accessories

SLIDE WASHER

36348651

Spare Parts

O-RING 8,73X1,78 - (108)

90358100
