Interpump PUMP E2B1618 R

Technical Documents

(1)
1 Technical Document Available
Sign in or create an account to download

Complete Solution

Need installation, maintenance, or a bundled quote?
Our engineers can help with product selection, system design, installation, and ongoing service — all from one partner.
InterpumpPumps & Compressors
Available

Interpump PUMP E2B1618 R

SKU 3G-ITP-00382

Brand
Interpump
Item
PUMP E2B1618 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
18 L/min
Pressure
160 bar
Power
5.5 kW
Speed
1450 RPM
Weight
7 kg
Dimensions
241.5 mm
Power
7.48 HP
Flow (US)
4.76 GPM
Pressure
16 MPa
Pressure
2320 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump PUMP E2B1618 R delivers reliable performance for demanding industrial applications. This Italian-engineered pump generates 5.5 kW of power with a maximum pressure of 160 bar, making it ideal for high-pressure cleaning, hydraulic systems, and water jet applications. Operating at 1450 RPM, it provides consistent 18 L/min flow rate while maintaining a compact footprint at just 7 kg. The robust construction ensures durability in manufacturing, automotive, and food processing environments. Available from 3G Electric Singapore, the E2B1618-000 offers proven Interpump quality for businesses requiring dependable industrial pump solutions.

Spare Parts & Repair Kits

Official E2B1618 parts list — 117 parts, 65 available in catalog

Official Parts List

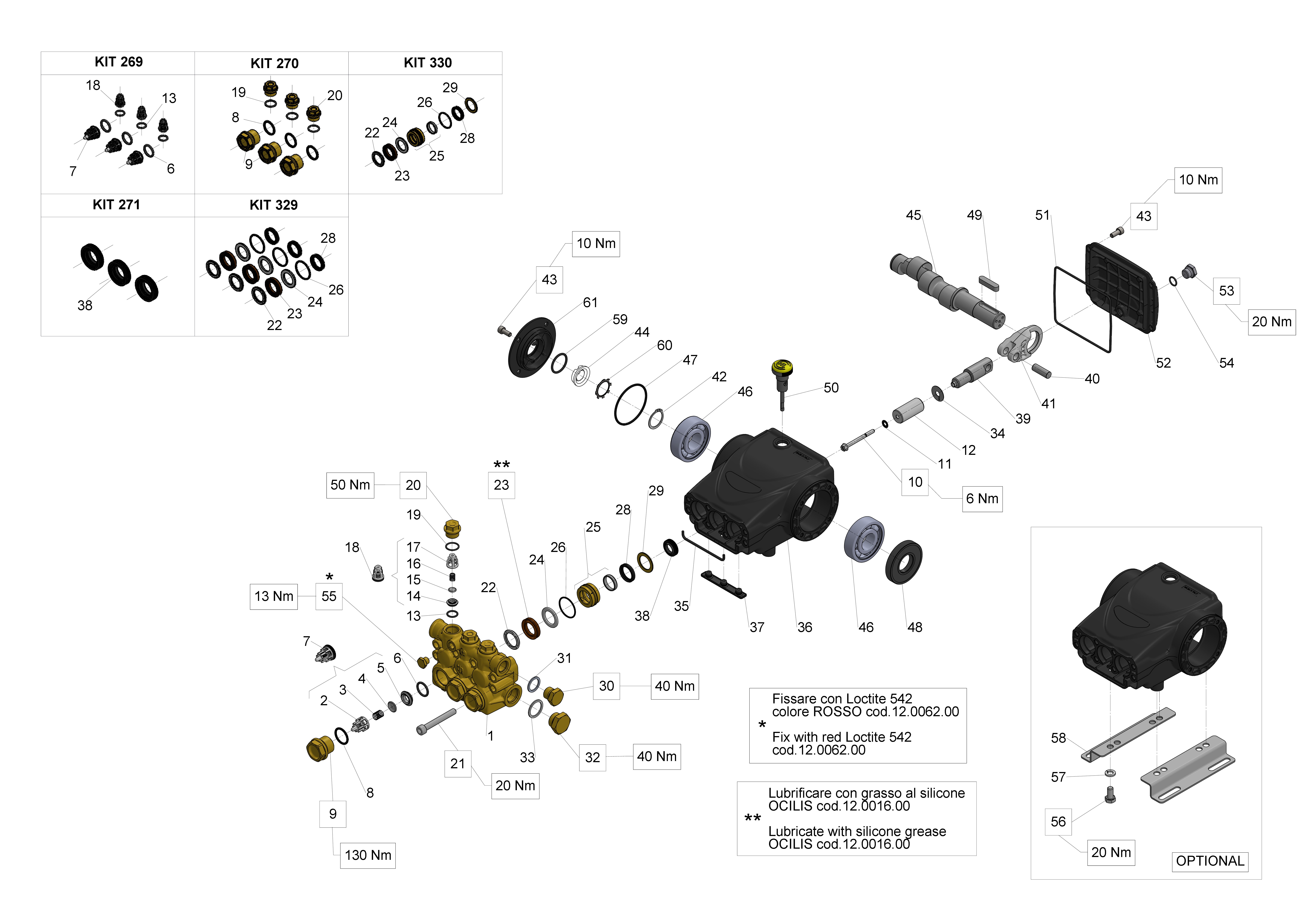

Exploded Diagram — Male shaft (key)View full size
E2B1618 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT269
KIT 269 INTAKE/DELIVERY VALVES
34026901×1Available
View
KIT270
KIT 270 VALVE PLUGS 58 SERIES
34027001×1Available
View
KIT271
View
KIT329
View
KIT330
View

Individual Components

PosCodeDescriptionQty
1
View
2
VALVE CAGE
36202551×3Available
View
3
SPRING D. 9,4X14,8
94737600×3Available
View
4
VALVE PLATE
36200176×3Available
View
5
VALVE SEAT
36200366×3Available
View
6
O-RING 17,12X2,62 (3068)
90384100×3Available
View
7
INTAKE/DELIVERY VALVE
36711501×3Available
View
8
O-RING 20,29X2,62(3081)
90384700×3Available
View
9
VALVE CAP M24X1,5X17
98222600×3Available
View
10
SCREW M05X55 SPEC. A2-70
99169000×3Available
View
12
PISTON D. 20X42
59040009×3Available
View
13
O-RING D. 12X2 (120-20)
90367400×3Available
View
14
VALVE SEAT
36211366×3Available
View
15
SPHERICAL VALVE
36211276×3Available
View
16
SPRING D.6.2x10.5 S.S.
94733300×3Available
View
17
VALVE CAGE
36211151×3Available
View
18
OUTLET VALVE
36719301×3Available
View
19
O-RING 15,60X1,78 (2062)
90359300×3Available
View
20
VALVE CAP M18X1,5X10
98213700×3Available
View

Need multiple parts? Request a bundled quote

65 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official E2B1618 parts list — Industrial Pumps (Series 58 E2)

Recommended Spare Parts

Spare Parts

O-RING 8,73X1,78 - (108)

90358100

Spare Parts

PUMP CRANKCASE

58010022

Accessories

CIRCLIP D. 25 UNI 7435

90063500

Spare Parts

SPONGE GASKET D.3X94

58210582

Valves

VALVE PLATE

36200176

Accessories

PLUG G3/8X13

98210000

Accessories

WASHER 21,5X27X1,5

96751400

Spare Parts

INLET NIPPLE G 3/4

36318251

Spare Parts

SPRING D.6.4X12.5

94733400

Valves

VALVE CAP M18X1,5X10

98213700

Spare Parts

NIPPLE D.3 G3/8F

36348970

Spare Parts

RING FOR PACKING D. 20

58211070
