Interpump PUMP E1E1811 R FL.56C

SKU 3G-ITP-00331

Brand
Interpump
Item
PUMP E1E1811 R FL.56C
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
11 L/min
Pressure
180 bar
Power
3.75 kW
Speed
3400 RPM
Weight
5 kg
Dimensions
194.5 mm
Power
5.1 HP
Flow (US)
2.91 GPM
Pressure
18 MPa
Pressure
2610 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump PUMP E1E1811 R FL.56C delivers reliable performance for industrial applications requiring consistent high-pressure output. Engineered in Italy, this compact industrial pump operates at 3400 rpm, generating 3.75 kW of power with a maximum pressure rating of 180 bar. The unit produces 11 liters per minute at full capacity, making it suitable for hydraulic systems, manufacturing equipment, and pressure cleaning operations. Weighing just 5 kg with minimal footprint dimensions, installation flexibility is maximized. Available from 3G Electric Singapore, this Interpump pump offers industrial-grade durability and precision engineering for demanding operational environments.

Spare Parts & Repair Kits

Official E1E1811 parts list — 180 parts, 67 available in catalog

Official Parts List

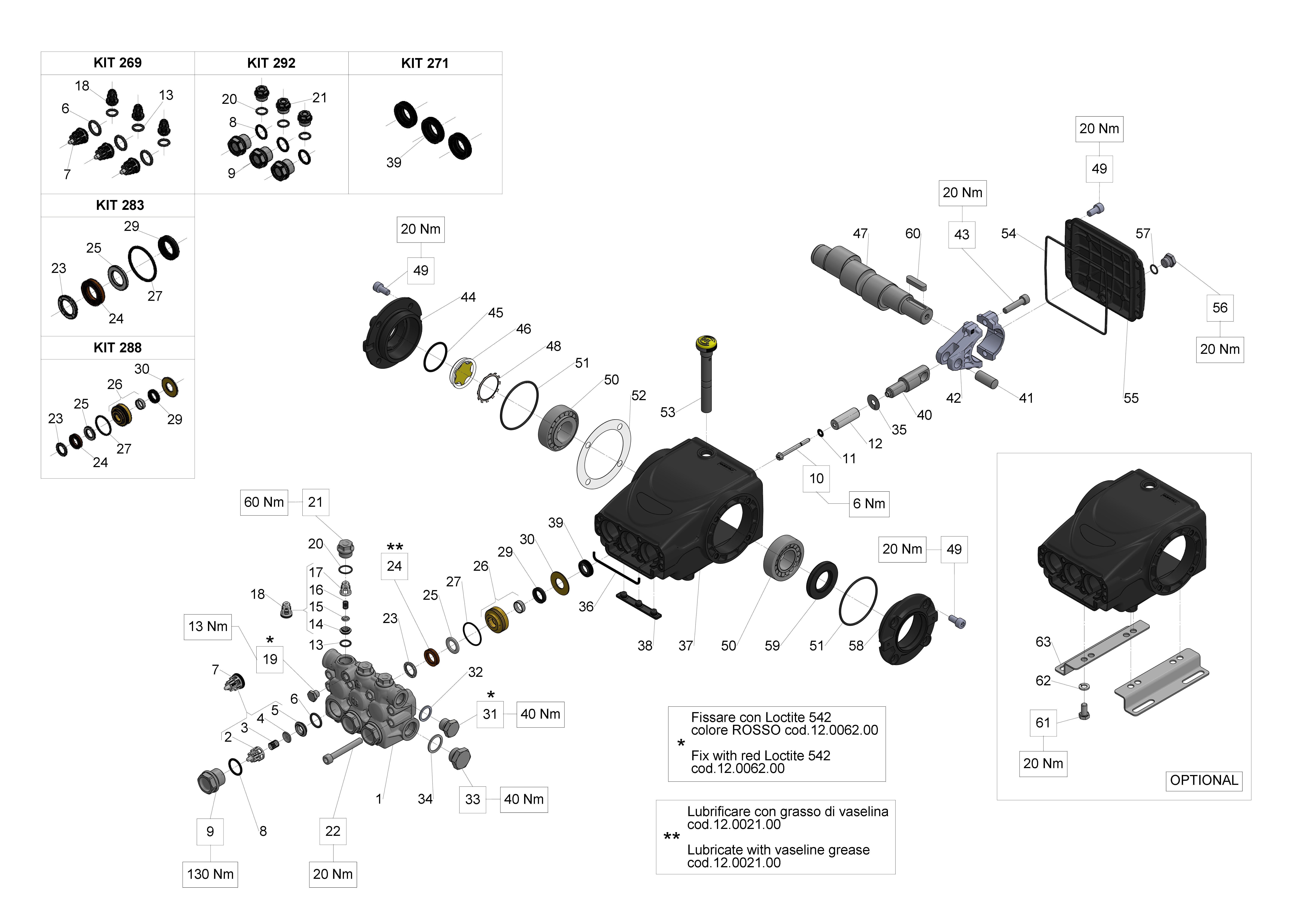

Exploded Diagram — Male shaft (key)View full size
E1E1811 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT269
KIT 269 INTAKE/DELIVERY VALVES
34026901×1Available
View
KIT271
View
KIT283
KIT 283 PACKING D.15 59 SERIES
34028301×1Available
View
KIT288
KIT 288 CPL.SEAL D.15 59 SER.
34028801×1Available
View
KIT292
View

Individual Components

PosCodeDescriptionQty
1
View
2
VALVE CAGE
36202551×3Available
View
3
SPRING D. 9,4X14,8
94737600×3Available
View
4
VALVE PLATE
36200176×3Available
View
5
VALVE SEAT
36200366×3Available
View
6
O-RING 17,12X2,62 (3068)
90384100×3Available
View
7
INTAKE/DELIVERY VALVE
36711501×3Available
View
8
O-RING 20,29X2,62(3081)
90384700×3Available
View
9
VALVE CAP M24X1,5X17 NICKEL
98222500×3Available
View
10
SCREW M05X55 SPEC. A2-70
99169000×3Available
View
12
PISTON D.15X42
58040109×3Available
View
13
O-RING D. 12X2 (120-20)
90367400×3Available
View
14
VALVE SEAT
36211366×3Available
View
15
SPHERICAL VALVE
36211276×3Available
View
16
SPRING D.6.2x10.5 S.S.
94733300×3Available
View
17
VALVE CAGE
36211151×3Available
View
18
OUTLET VALVE
36719301×3Available
View
19
PLUG G 1/8 X 8 NICKEL
98196700×1Available
View
20
O-RING 15,60X1,78 (2062)
90359300×3Available
View

Need multiple parts? Request a bundled quote

67 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official E1E1811 parts list — Industrial Pumps (Series 53 E1)

Recommended Spare Parts

Spare Parts

O-RING 8,73X1,78 - (108)

90358100

Accessories

CIRCLIP D. 62 UNI 7437

90085000

Valves

VALVE PLATE

36200176

Spare Parts

HEAD RING D.15 HP

63101051

Spare Parts

CONNECTING ROD COMPLETE

59030001

Accessories

WASHER 21,5X27X1,5

96751400

Spare Parts

INLET NIPPLE G 3/4

36318251

Spare Parts

SPRING D.6.4X12.5

94733400

Spare Parts

NIPPLE D.3 G3/8F

36348970

Accessories

KEY 8(h9)X7X35 UNI 6604/A

91489200

Spare Parts

SHUTTER WITH HOSE FITTING

36334270

Accessories

WASHER 10,5X16X1

96710400
