Interpump PUMP E1E1808 R

Technical Documents

(1)
1 Technical Document Available
Sign in or create an account to download

Complete Solution

Need installation, maintenance, or a bundled quote?
Our engineers can help with product selection, system design, installation, and ongoing service — all from one partner.
InterpumpPumps & Compressors
Available

Interpump PUMP E1E1808 R

SKU 3G-ITP-00318

Brand
Interpump
Item
PUMP E1E1808 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
8 L/min
Pressure
180 bar
Power
2.72 kW
Speed
3400 RPM
Weight
5 kg
Dimensions
194.5 mm
Power
3.7 HP
Flow (US)
2.11 GPM
Pressure
18 MPa
Pressure
2610 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump PUMP E1E1808 R is a compact industrial pump engineered for demanding high-pressure applications. Delivering 2.72 kW of power at 3400 RPM, this Italian-manufactured unit generates 180 bar pressure with a flow rate of 8 L/min, making it ideal for cleaning systems, pressure washing equipment, and industrial fluid transfer operations. Weighing just 5 kg with a footprint of 194.5 mm, the E1E1808 R offers excellent portability without compromising performance. Available from 3G Electric Singapore, this reliable pump meets stringent industrial standards and serves sectors including food processing, automotive, and manufacturing facilities requiring robust pressure solutions.

Spare Parts & Repair Kits

Official E1E1808 parts list — 245 parts, 64 available in catalog

Official Parts List

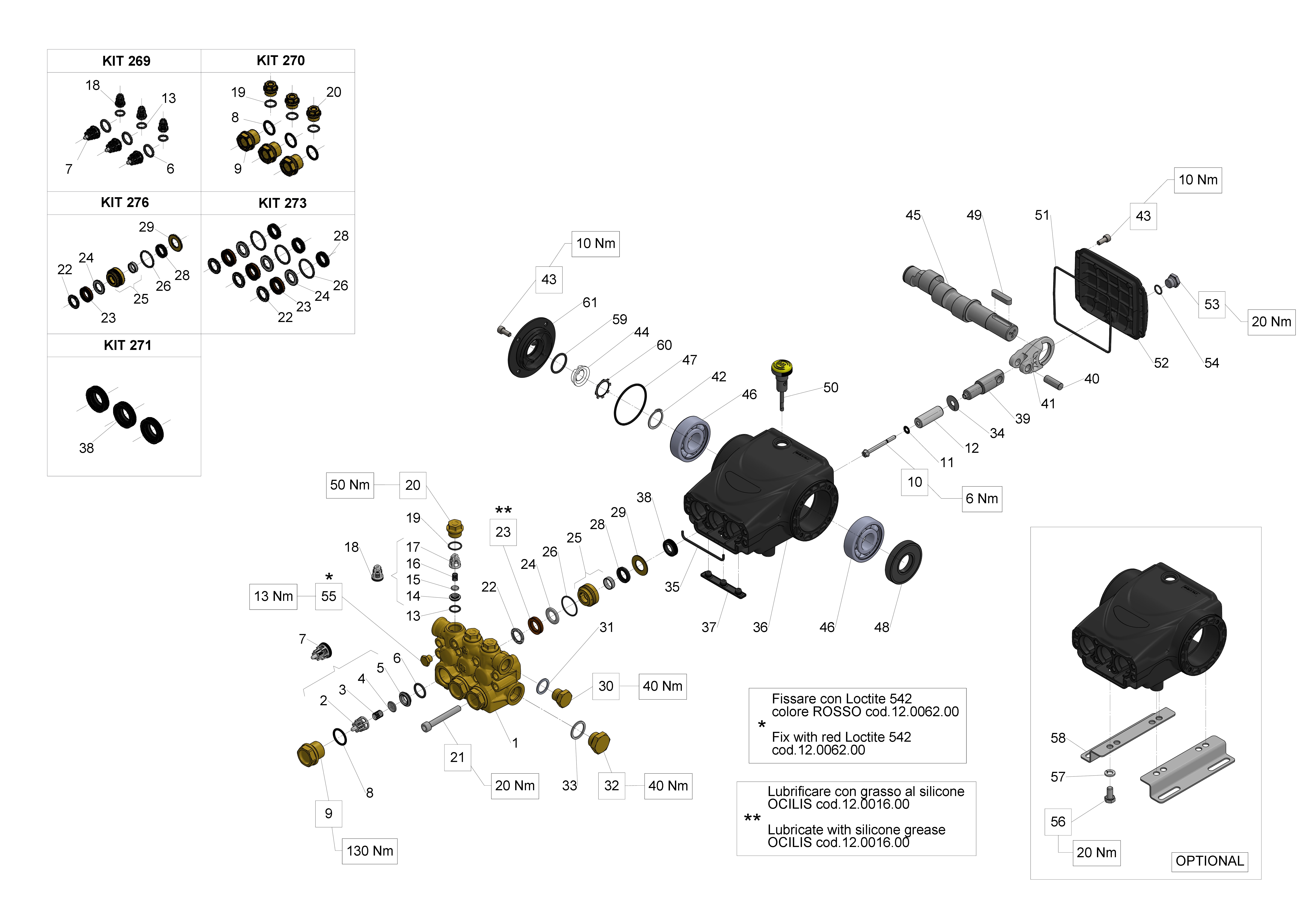

Exploded Diagram — Male shaft (key)View full size
E1E1808 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT269
KIT 269 INTAKE/DELIVERY VALVES
34026901×1Available
View
KIT270
KIT 270 VALVE PLUGS 58 SERIES
34027001×1Available
View
KIT271
View
KIT273
KIT 273 PACKING D.15 58 SERIES
34027301×1Available
View

Individual Components

PosCodeDescriptionQty
1
View
2
VALVE CAGE
36202551×3Available
View
3
SPRING D. 9,4X14,8
94737600×3Available
View
4
VALVE PLATE
36200176×3Available
View
5
VALVE SEAT
36200366×3Available
View
6
O-RING 17,12X2,62 (3068)
90384100×3Available
View
7
INTAKE/DELIVERY VALVE
36711501×3Available
View
8
O-RING 20,29X2,62(3081)
90384700×3Available
View
9
VALVE CAP M24X1,5X17
98222600×3Available
View
10
SCREW M05X55 SPEC. A2-70
99169000×3Available
View
12
PISTON D.15X42
58040109×3Available
View
13
O-RING D. 12X2 (120-20)
90367400×3Available
View
14
VALVE SEAT
36211366×3Available
View
15
SPHERICAL VALVE
36211276×3Available
View
16
SPRING D.6.2x10.5 S.S.
94733300×3Available
View
17
VALVE CAGE
36211151×3Available
View
18
OUTLET VALVE
36719301×3Available
View
19
O-RING 15,60X1,78 (2062)
90359300×3Available
View
20
VALVE CAP M18X1,5X10
98213700×3Available
View

Need multiple parts? Request a bundled quote

64 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official E1E1808 parts list — Industrial Pumps (Series 53 E1)

Recommended Spare Parts

Spare Parts

O-RING 8,73X1,78 - (108)

90358100

Spare Parts

PUMP CRANKCASE

58010022

Accessories

CIRCLIP D. 25 UNI 7435

90063500

Spare Parts

SPONGE GASKET D.3X94

58210582

Valves

VALVE PLATE

36200176

Accessories

PLUG G3/8X13

98210000

Spare Parts

HEAD RING D.15 HP

63101051

Accessories

WASHER 21,5X27X1,5

96751400

Spare Parts

INLET NIPPLE G 3/4

36318251

Spare Parts

O-RING 26,70X1,78 (2106)

90360600

Spare Parts

SPRING D.6.4X12.5

94733400

Accessories

WASHER 10,5X16X1

96710400
