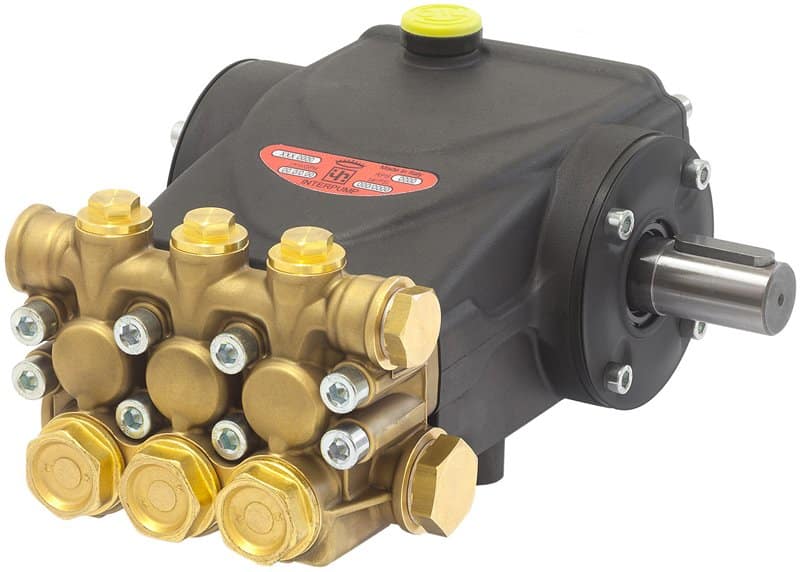

Interpump E1C1609 R Industrial Pump

Interpump E1C1609 R is an industrial gear pump delivering 9 L/min at 160 bar, rated for 1750 rpm operation. Weighing 5 kg with 2.72 kW power input, it suits compact hydraulic systems requiring reliable high-pressure…

SKU 3G-ITP-00237

Also listed as: E1C1609000 · E1C1609 000

Brand
Interpump
Item
E1C1609 R Industrial Pump
Category
Pumps & Compressors
UNSPSC
40151527 — Plunger pumps

Technical Specifications

Interpump
Flow Rate
9 L/min
Pressure
160 bar
Power
2.72 kW
Speed
1750 RPM
Weight
5 kg
Dimensions
194.5 mm
Power
3.7 HP
Flow (US)
2.38 GPM
Pressure
16 MPa
Pressure
2320 PSI
View Full Spec Sheet
Authorized Distributor
Direct from OEM
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
SG-based team
Sign in to view pricing
Qty
Create a free account to submit your RFQ and download technical documents.
Not sure this is the right part? Get a recommendation.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump E1C1609 R is an industrial gear pump delivering 9 L/min at 160 bar, rated for 1750 rpm operation. Weighing 5 kg with 2.72 kW power input, it suits compact hydraulic systems requiring reliable high-pressure performance.

Used in

Common applications for Interpump
Shipyard hull cleaning and surface prep — HT100 and W951 paired with dual-lance guns for dockyard service
Petrochemical heat-exchanger descaling — WS-series stainless pumps for neutral-pH cleaning chemistry
Outdoor HVAC condenser mist cooling — ZP180 pumps on rooftop chiller decks
Textile fibre-finishing — W170 and W270 for mist-jet application across drying lines
Municipal water treatment — W951 motor pumps for high-pressure disinfection chemical injection

Spare Parts & Repair Kits

Official E1C1609 parts list — 177 parts, 64 available in catalog

Official Parts List

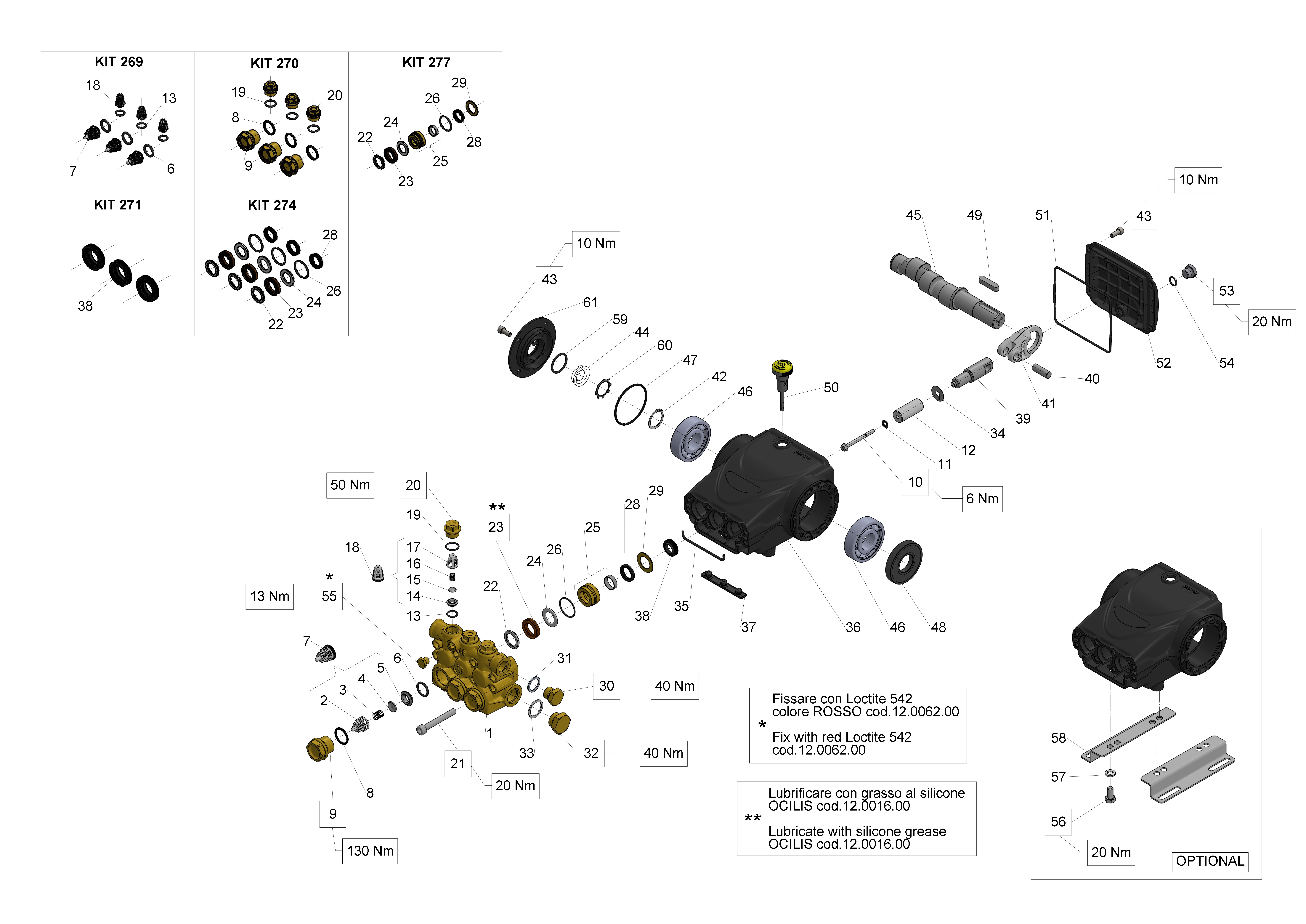

Exploded Diagram — Male shaft (key)View full size
E1C1609 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT269
KIT 269 INTAKE/DELIVERY VALVES
34026901×1Available
View
KIT270
KIT 270 VALVE PLUGS 58 SERIES
34027001×1Available
View
KIT271
View
KIT274
KIT 274 PACKING D.18 58 SERIES
34027401×1Available
View

Individual Components

PosCodeDescriptionQty
1
View
2
VALVE CAGE
36202551×3Available
View
3
SPRING D. 9,4X14,8
94737600×3Available
View
4
VALVE PLATE
36200176×3Available
View
5
VALVE SEAT
36200366×3Available
View
6
O-RING 17,12X2,62 (3068)
90384100×3Available
View
7
INTAKE/DELIVERY VALVE
36711501×3Available
View
8
O-RING 20,29X2,62(3081)
90384700×3Available
View
9
VALVE CAP M24X1,5X17
98222600×3Available
View
10
SCREW M05X55 SPEC. A2-70
99169000×3Available
View
11
View
12
PISTON D.18X42
58040209×3Available
View
13
O-RING D. 12X2 (120-20)
90367400×3Available
View
14
VALVE SEAT
36211366×3Available
View
15
SPHERICAL VALVE
36211276×3Available
View
16
SPRING D.6.2x10.5 S.S.
94733300×3Available
View
17
VALVE CAGE
36211151×3Available
View
18
OUTLET VALVE
36719301×3Available
View
19
O-RING 15,60X1,78 (2062)
90359300×3Available
View
20
VALVE CAP M18X1,5X10
98213700×3Available
View

Need multiple parts? Request a bundled quote

64 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
✓ Genuine manufacturer parts✓ Expert technical support✓ Worldwide shipping

Official E1C1609 parts list — Industrial Pumps (Series 53 E1)

Recommended Spare Parts

⚙

Spare Parts

PUMP CRANKCASE

58010022

CIRCLIP D. 25 UNI 7435

Accessories

CIRCLIP D. 25 UNI 7435

90063500

⚙

Spare Parts

SPONGE GASKET D.3X94

58210582

VALVE PLATE

Valves

VALVE PLATE

36200176

PLUG G3/8X13

Accessories

PLUG G3/8X13

98210000

⚙

Spare Parts

SEAL D. 18X24X5 L.P.

90265000

⚙

Spare Parts

RING FOR SEAL D.18

58210870

WASHER 21,5X27X1,5

Accessories

WASHER 21,5X27X1,5

96751400

INLET NIPPLE G 3/4

Spare Parts

INLET NIPPLE G 3/4

36318251

O-RING 26,70X1,78 (2106)

Spare Parts

O-RING 26,70X1,78 (2106)

90360600

SPRING D.6.4X12.5

Spare Parts

SPRING D.6.4X12.5

94733400

⚙

Spare Parts

O-RING 8,73X1,78 - (108)

90358100

View full cross-reference for Interpump 3G-ITP-00237→
