Interpump C3W2015 R Industrial Pump - Pumps & Compressors
Image not available

Technical Documents

(1)

Complete Solution

Need installation, maintenance, or a bundled quote?
Our engineers can help with product selection, system design, installation, and ongoing service — all from one partner.

Quick Inquiry

InterpumpPumps & Compressors
Available to Order

Interpump C3W2015 R Industrial Pump

Interpump C3W2015 R is an industrial positive displacement pump delivering 15 L/min at 200 bar, rated for 5.74 kW at 1450 rpm. Compact design weighing 9.5 kg suits mobile and stationary hydraulic systems requiring…

SKU 3G-ITP-00123

Also listed as: C3W2015000 · C3W2015 000

Brand
Interpump
Item
C3W2015 R Industrial Pump
Category
Pumps & Compressors
UNSPSC
40151527 — Plunger pumps

Technical Specifications

Interpump
Flow Rate
15 L/min
Pressure
200 bar
Power
5.74 kW
Speed
1450 RPM
Weight
9.5 kg
Dimensions
265 mm
Power
7.8 HP
Flow (US)
3.96 GPM
Pressure
20 MPa
Pressure
2900 PSI
View Full Spec Sheet
Authorized Distributor
Direct from OEM
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
SG-based team
Sign in to view pricing
Qty
Create a free account to submit your RFQ and download technical documents.
Not sure this is the right part? Get a recommendation.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump C3W2015 R is an industrial positive displacement pump delivering 15 L/min at 200 bar, rated for 5.74 kW at 1450 rpm. Compact design weighing 9.5 kg suits mobile and stationary hydraulic systems requiring high-pressure performance.

Used in

Common applications for Interpump
Shipyard hull cleaning and surface prep — HT100 and W951 paired with dual-lance guns for dockyard service
Petrochemical heat-exchanger descaling — WS-series stainless pumps for neutral-pH cleaning chemistry
Outdoor HVAC condenser mist cooling — ZP180 pumps on rooftop chiller decks
Textile fibre-finishing — W170 and W270 for mist-jet application across drying lines
Municipal water treatment — W951 motor pumps for high-pressure disinfection chemical injection

Spare Parts & Repair Kits

Official C3W2015 parts list — 135 parts, 68 available in catalog

Official Parts List

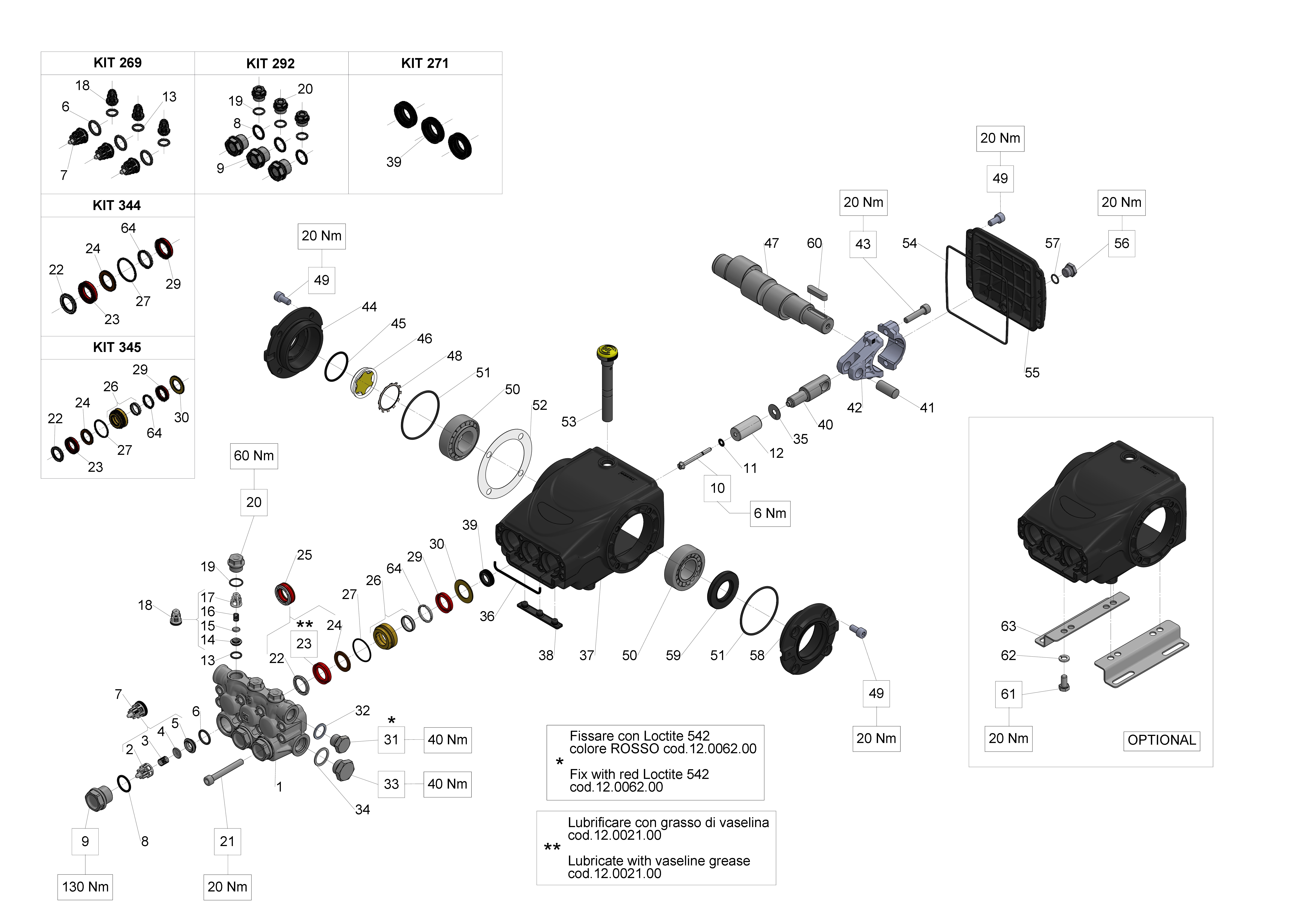

Exploded Diagram — Male shaft (key)View full size
C3W2015 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT269
KIT 269 INTAKE/DELIVERY VALVES
34026901×1Available
View
KIT271
View
KIT292
View
KIT344
KIT 344 PACKING D. 20 C3W
34034401×1Available
View
KIT345
KIT 345 CPL. SEAL D. 20 C3W
34034501×1Available
View

Individual Components

PosCodeDescriptionQty
1
View
2
VALVE CAGE
36202551×3Available
View
3
SPRING D. 9,4X14,8
94737600×3Available
View
4
VALVE PLATE
36200176×3Available
View
5
VALVE SEAT
36200366×3Available
View
6
O-RING 17,12X2,62 (3068)
90384100×3Available
View
7
INTAKE/DELIVERY VALVE
36711501×3Available
View
8
O-RING 20,29X2,62(3081)
90384700×3Available
View
9
VALVE CAP M24X1,5X17 NICKEL
98222500×3Available
View
10
SCREW M05X55 SPEC. A2-70
99169000×3Available
View
11
View
12
PISTON D. 20X42
59040009×3Available
View
13
O-RING D. 12X2 (120-20)
90367400×3Available
View
14
VALVE SEAT
36211366×3Available
View
15
SPHERICAL VALVE
36211276×3Available
View
16
SPRING D.6.2x10.5 S.S.
94733300×3Available
View
17
VALVE CAGE
36211151×3Available
View
18
OUTLET VALVE
36719301×3Available
View
19
O-RING 15,60X1,78 (2062)
90359300×3Available
View
20
PLUG M18X1,5X10 D.23 (NICK.)
98213750×3Available
View

Need multiple parts? Request a bundled quote

68 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
✓ Genuine manufacturer parts✓ Expert technical support✓ Worldwide shipping

Official C3W2015 parts list — Industrial Pumps (Car Wash Versions Series 59 C3W)

Recommended Spare Parts

⚙

Spare Parts

ANELLO DI TESTA D.20 LP (CW)

59100251

CONNECTING ROD COMPLETE

Spare Parts

CONNECTING ROD COMPLETE

59030001

WASHER 21,5X27X1,5

Accessories

WASHER 21,5X27X1,5

96751400

KEY 8(h9)X7X35 UNI 6604/A

Accessories

KEY 8(h9)X7X35 UNI 6604/A

91489200

VALVE CAP M24X1,5X17 NICKEL

Valves

VALVE CAP M24X1,5X17 NICKEL

98222500

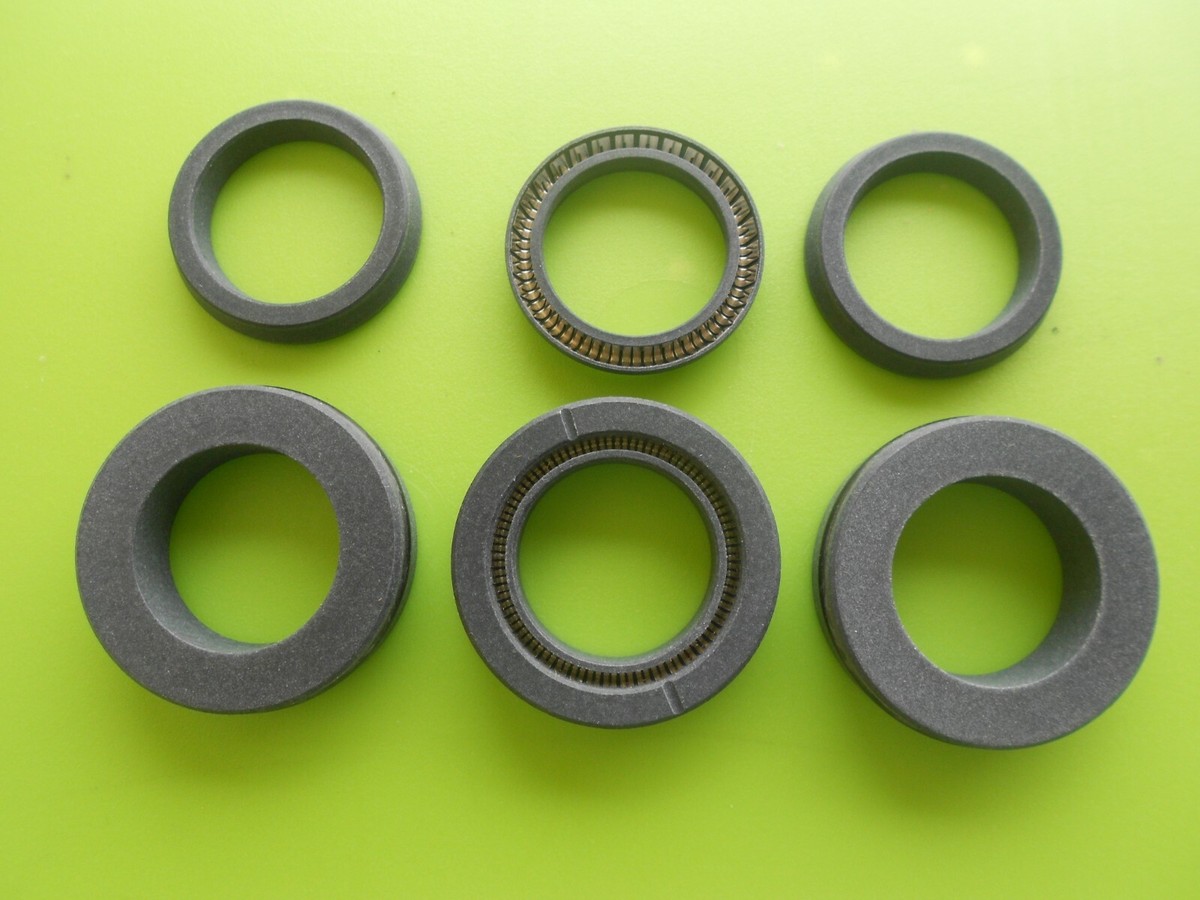

SPONGE GASKET D.3X103

Spare Parts

SPONGE GASKET D.3X103

59211082

KIT 269 INTAKE/DELIVERY VALVES

Spare Parts

KIT 269 INTAKE/DELIVERY VALVES

34026901

O-RING 10,82X1,78 (2043)

Spare Parts

O-RING 10,82X1,78 (2043)

90358500

⚙

Spare Parts

OIL SEAL D.15X24X5/7

90156550

KIT 271 OIL SEAL D.15 58/59 SERIES

Spare Parts

KIT 271 OIL SEAL D.15 58/59 SERIES

34027101

VITE M08x60 5931 12.9 G321A+M

Spare Parts

VITE M08x60 5931 12.9 G321A+M

99317700

VALVE PLATE

Valves

VALVE PLATE

36200176

View full cross-reference for Interpump 3G-ITP-00123→
