Interpump PUMP W1555Y DX + MOTORE INGR. 37R

SKU 3G-ITP-01658

Brand
Interpump
Item
PUMP W1555Y DX + MOTORE INGR. 37R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
55 L/min
Pressure
150 bar
Power
16.17 kW
Speed
1450 RPM
Weight
18.5 kg
Dimensions
340.5 mm
Power
22 HP
Flow (US)
14.5 GPM
Pressure
15 MPa
Pressure
2175 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump's W1555Y DX industrial pump delivers reliable performance for demanding high-pressure applications across manufacturing, cleaning, and processing industries. Engineered in Italy, this robust unit generates 16.17 kW of power while maintaining a consistent flow rate of 55 L/min at 150 bar pressure. Built to withstand 2175 psi operating conditions with a compact 340.5 mm footprint, the pump operates efficiently at 1450 RPM. Weighing just 18.5 kg, it integrates seamlessly into existing systems requiring precision fluid transfer. Available from 3G Electric Singapore, this Interpamp industrial pump represents proven engineering excellence for critical industrial operations.

Spare Parts & Repair Kits

Official W1555 parts list — 177 parts, 59 available in catalog

Official Parts List

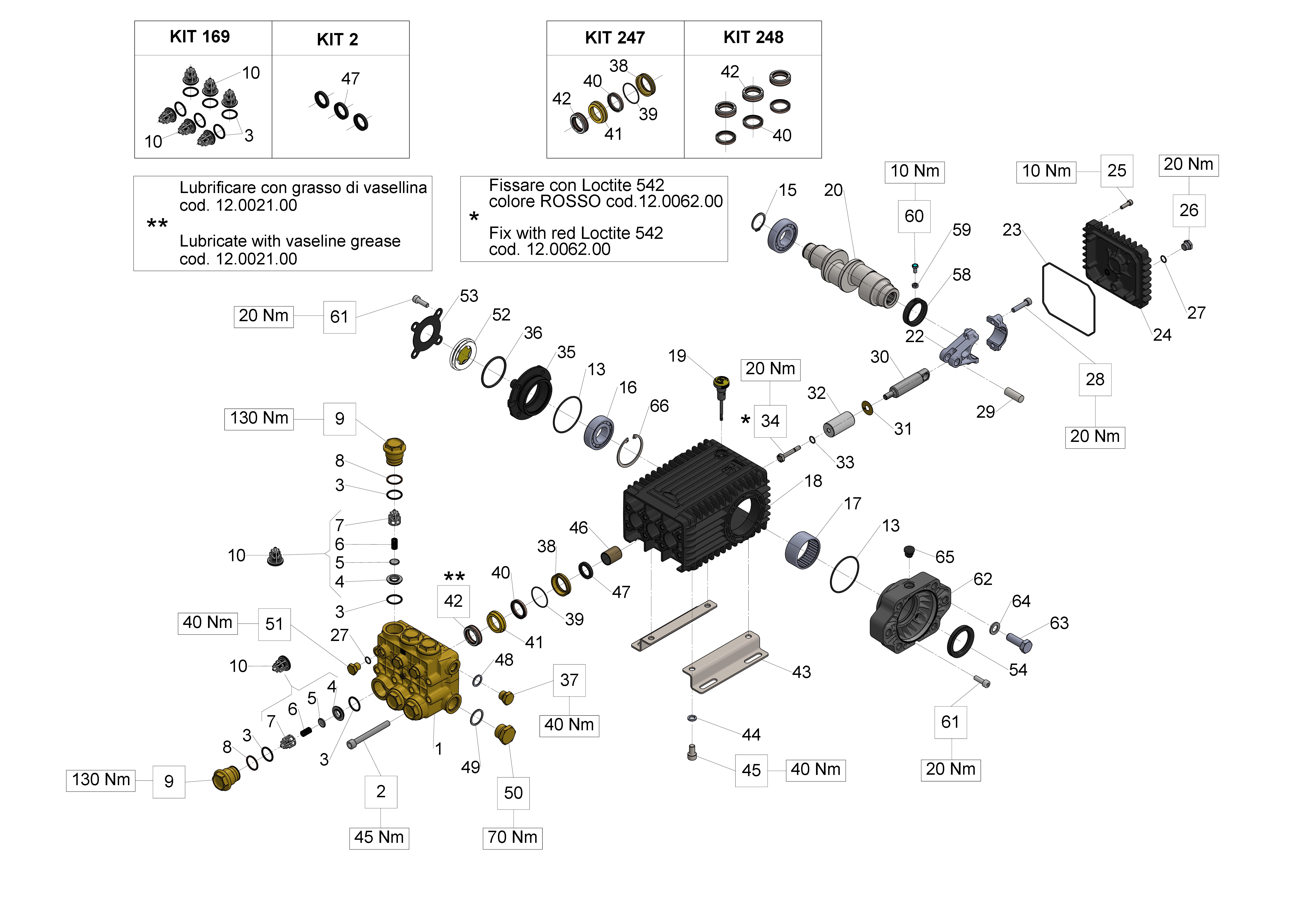

Exploded Diagram — Male shaft (spline) - vers. JView full size
W1555 — Male shaft (spline) - vers. J

Repair Kits — Order These for Routine Maintenance

KIT2
KIT 2 OIL SEAL D. 22X32X5,5
34000201×1Available
View
KIT169
KIT 169 INTAKE/DEL.VALVE (66)
34016901×1Available
View
KIT247
KIT 247 CPL. SEAL D.28
34024701×1Available
View
KIT248
KIT 248 PACKING D.28
34024801×1Available
View

Individual Components

PosCodeDescriptionQty
1
MANIFOLD FOR PISTON D.28 W1555
66124641×1Available
View
2
SCREW M10X90 UNI 5931 8.8
99380100×8Available
View
3
O-RING 23,81X2,62 (132)
90385700×12Available
View
4
VALVE SEAT
36203366×6Available
View
5
SPHERICAL VALVE
36203476×6Available
View
6
SPRING Dm. 10x18.5
94738800×6Available
View
7
VALVE CAGE
36203551×6Available
View
8
ANTI-EXTR.RING D.24.7x29x1.5
90516500×6Available
View
9
VALVE CAP M32x1.5x29.5
66130041×6Available
View
10
INTAKE/DEL.VALVE ASSY(66)
36712701×6Available
View
13
O-RING 67,95X2,62 (3268)
90391300×2Available
View
15
CIRCLIP D. 30 UNI 7435
90066700×1Available
View
16
ROLLER BEARING NUP206ECP
91837600×1Available
View
18
CRANKCASE
66010022×1Available
View
19
OIL DIP-STICK G3/8X80
98210600×1Available
View
22
CONNECTING ROD
66030001×3Available
View
23
O-RING D.133.02X 2,62(3525)
90392200×1Available
View
24
REAR COVER
66160022×1Available
View
25
SCREW M 6x20 UNI 5931
99188400×4Available
View
26
PLUG G1/4"x12
98204250×1Available
View

Need multiple parts? Request a bundled quote

59 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official W1555 parts list — Industrial Pumps (66 Series)

Recommended Spare Parts

Accessories

CIRCLIP D. 62 UNI 7437

90085000

Spare Parts

PACKING D.28X36X6.5 L.P.

90275300

Accessories

PLUG G3/8X13

98210000

Spare Parts

O-RING D.37.82X1.78 (2150)

90362000

Spare Parts

INTERMEDIATE RING D.28

66220070

Spare Parts

PISTON GUIDE - S.S.

66050066

Spare Parts

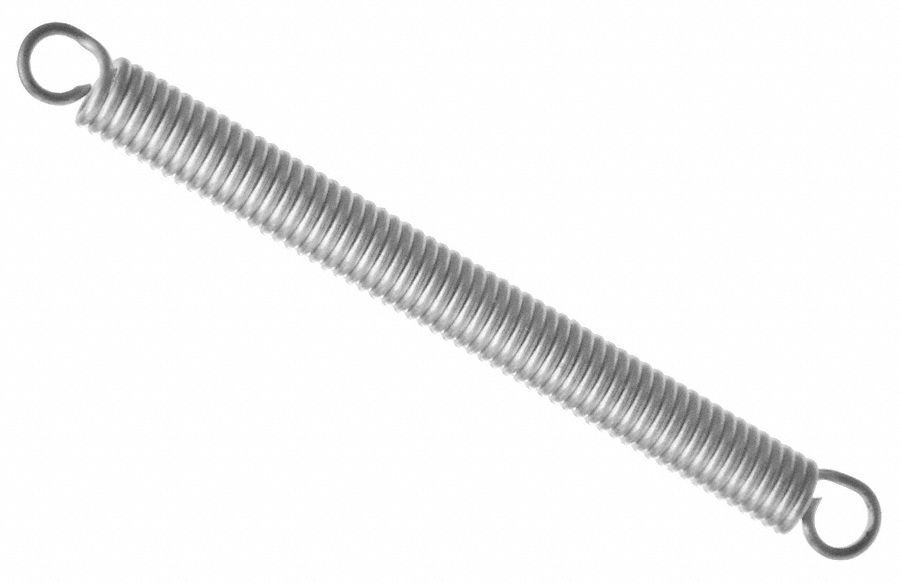

SPRING Dm. 10x18.5

94738800

Spare Parts

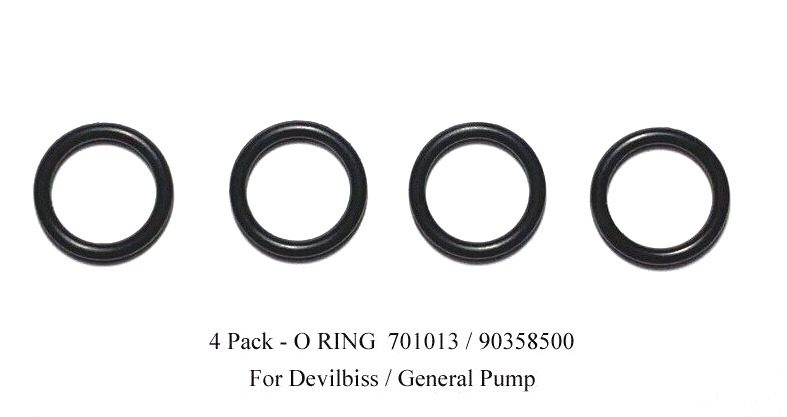

O-RING 10,82X1,78 (2043)

90358500

Spare Parts

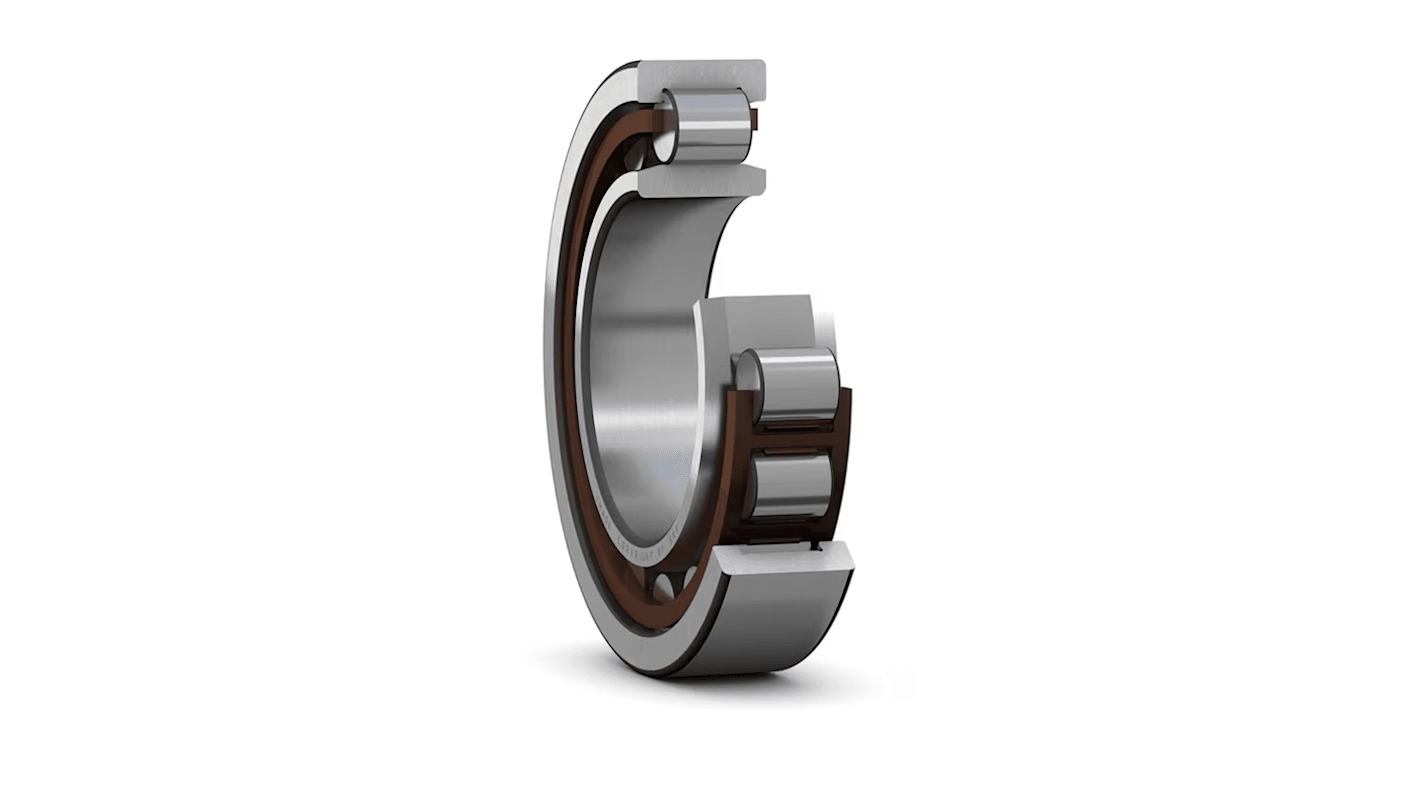

ROLLER BEARING NUP206ECP

91837600

Spare Parts

SIDE CRANKCASE COVER

59150022

Spare Parts

KIT 169 INTAKE/DEL.VALVE (66)

34016901

Accessories

PLUG G3/4X16

98226800
