Interpump PUMP W100140 DX

Technical Documents

(1)
1 Technical Document Available
Sign in or create an account to download

Complete Solution

Need installation, maintenance, or a bundled quote?
Our engineers can help with product selection, system design, installation, and ongoing service — all from one partner.
InterpumpPumps & Compressors
Available

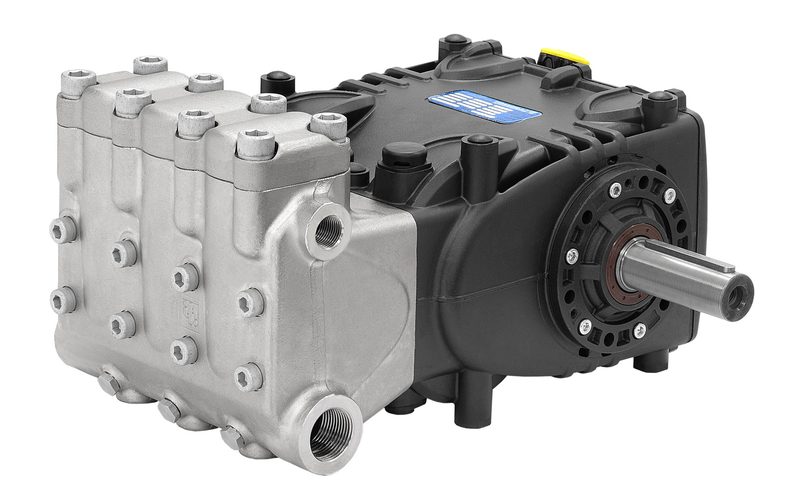

Interpump PUMP W100140 DX

SKU 3G-ITP-01778

Brand
Interpump
Item
PUMP W100140 DX
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
142 L/min
Pressure
100 bar
Power
27 kW
Speed
1450 RPM
Weight
42 kg
Dimensions
410.5 mm
Power
36.9 HP
Flow (US)
37.5 GPM
Pressure
10 MPa
Pressure
1450 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

POMPA W100140 DX by Interpump delivers reliable industrial pump performance for demanding applications. This Italian-engineered unit operates at 1450 rpm, generating 27 kW of power with a flow rate of 142 l/min at 100 bar pressure (1450 psi). Weighing 42 kg with compact dimensions of 410.5 mm, it suits high-pressure cleaning, hydraulic systems, and industrial processing equipment. Engineered for consistent operation in manufacturing, construction, and commercial sectors, the W100140 DX combines durability with efficient fluid transfer capabilities. Available from 3G Electric Singapore, an Interpump distributor offering genuine industrial pump solutions.

Spare Parts & Repair Kits

Official W100140 parts list — 70 parts, 70 available in catalog

Official Parts List

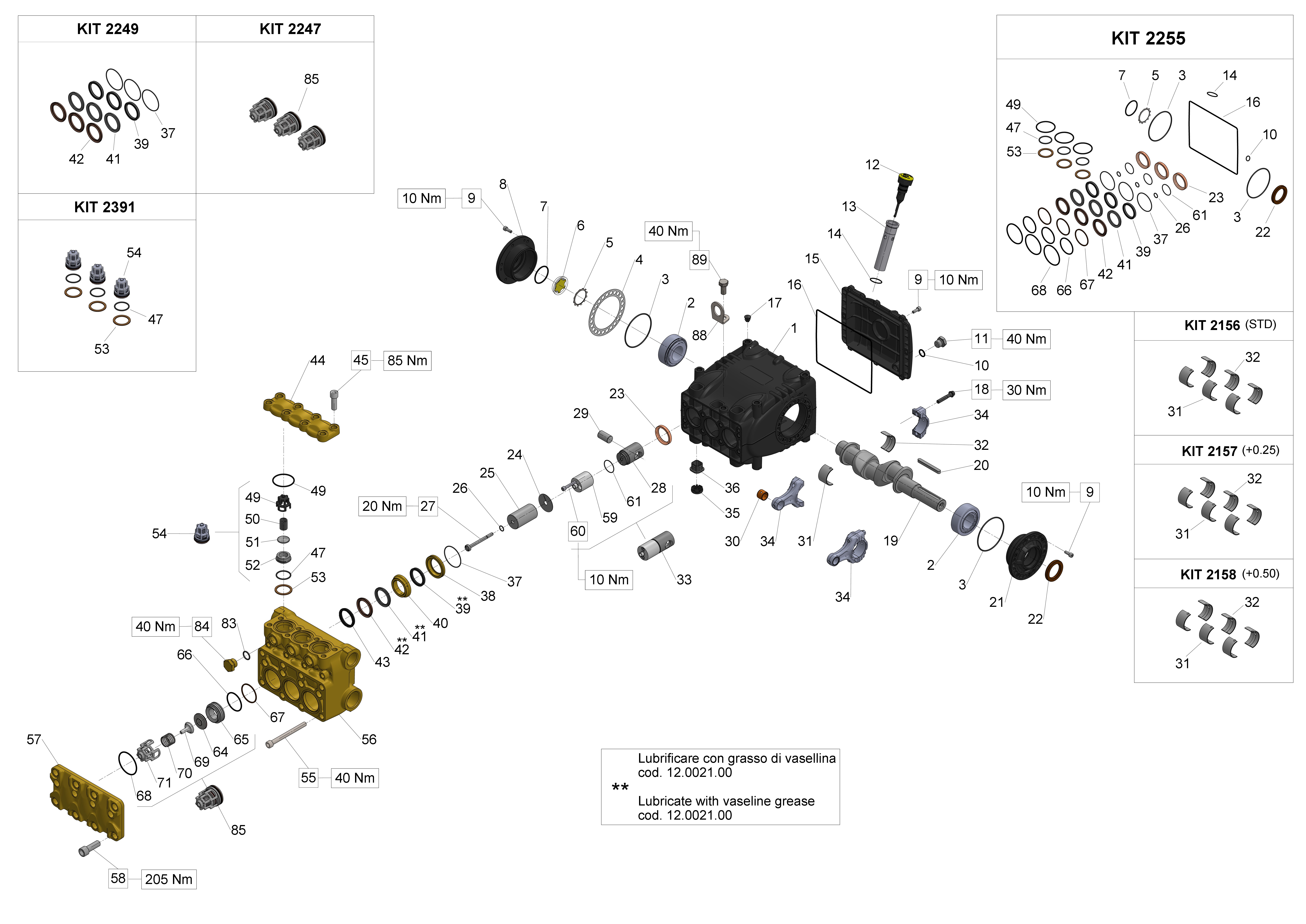

Exploded Diagram — Male shaft (key) - GASView full size
W100140 — Male shaft (key) - GAS

Repair Kits — Order These for Routine Maintenance

KIT2156
KIT 2156*CONROD BUSHING
34215601×1Available
View
KIT2157
KIT 2157*CONROD BUSHINGS +0,25
34215701×1Available
View
KIT2158
KIT 2158*CONROD BUSHINGS +0,50
34215801×1Available
View
KIT2247
KIT 2247 INLET VALVE
34224701×1Available
View
KIT2249
KIT 2249 PACKING D.40
34224901×1Available
View
KIT2255
KIT 2255 CPL.SEAL D.40
34225501×1Available
View

Individual Components

PosCodeDescriptionQty
1
CRANKCASE W100140
70010022×1Available
View
2
TAPER ROLLER BEARING 33207/Q
91847700×2Available
View
3
O-RING D. 80.6X2.62 (3318)
90391500×2Available
View
4
SHIM 0.25 MM.
70220381×1Available
View
4
SHIM 0.1 MM.
70220081×1Available
View
5
CIRCLIP D.45 (ZJ45)
90075600×1Available
View
6
OIL SIGHT GLASS
70211801×1Available
View
7
O-RING 39,34X2,62 (3156)
90387700×1Available
View
8
BEARING COVER (OIL GLASS SIDE)
70150122×1Available
View
9
SCREW M6X16 UNI 5931 8.8 Z.
99185400×20Available
View
10
O-RING 13,95X2,62 (3056)
90383300×1Available
View
11
PLUG G3/8x13 TE22
98210050×1Available
View
12
OIL DIPSTICK D.21,5X70
98211500×1Available
View
13
DIP STICK TUBE
72210695×1Available
View
14
O-RING 25,12X1,78 (2100)
90360400×1Available
View
15
CRANKCASE COVER KT
70160622×1Available
View
16
OR D.190.17X2.62 NBR 70SH
90394200×1Available
View
17
PLUG D. 15
98200500×5Available
View
18
CONN.ROD BOLT M8X1X42
99312300×6Available
View
19
CRANKSHAFT C.26
70020635×1Available
View

Need multiple parts? Request a bundled quote

70 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official W100140 parts list — Industrial Pumps (Series 70)

Recommended Spare Parts

Spare Parts

OIL SEAL D.35X52X7

90166800

SCREW M14X40 UNI5931 12.9 DACR. WK531

Accessories

SCREW M14X40 UNI5931 12.9 DACR. WK531

99485000

Spare Parts

KIT 2249 PACKING D.40

34224901

Spare Parts

O-RING 25,12X1,78 (2100)

90360400

Spare Parts

HEAD RING D.40

71100351

Valves

INNER VALVE GUIDE

36208651

Valves

SPHERICAL VALVE COMPLETE

36208502

Spare Parts

SPRING D.24.7X27

94754000

Accessories

PLUG D. 15

98200500

Spare Parts

BEARING COVER (OIL GLASS SIDE)

70150122

Spare Parts

BEARING COVER (PTO SIDE)

70150022

Spare Parts

PISTON GUIDE ROD

70050266
