Interpump PUMP VHT6650 DX

SKU 3G-ITP-01264

Brand
Interpump
Item
PUMP VHT6650 DX
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
50 L/min
Pressure
150 bar
Power
14.7 kW
Speed
1450 RPM
Weight
18.5 kg
Dimensions
340.5 mm
Power
20 HP
Flow (US)
13.2 GPM
Pressure
15 MPa
Pressure
2175 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

POMPA VHT6650 DX is an Italian-engineered industrial pump manufactured by Interpump, delivering reliable performance for demanding applications. Operating at 1450 rpm, this compact unit generates 14.7 kW of power with a flow capacity of 50 L/min and maximum pressure of 150 bar, making it suitable for cleaning systems, pressure washing equipment, and industrial hydraulic applications. Weighing just 18.5 kg with a footprint of 340.5 mm, the VHT6650 DX offers excellent portability without compromising durability. Available from 3G Electric Singapore, this industrial pump combines Italian craftsmanship with practical engineering for cost-effective operation in commercial and industrial settings.

Spare Parts & Repair Kits

Official VHT6650 parts list — 126 parts, 43 available in catalog

Official Parts List

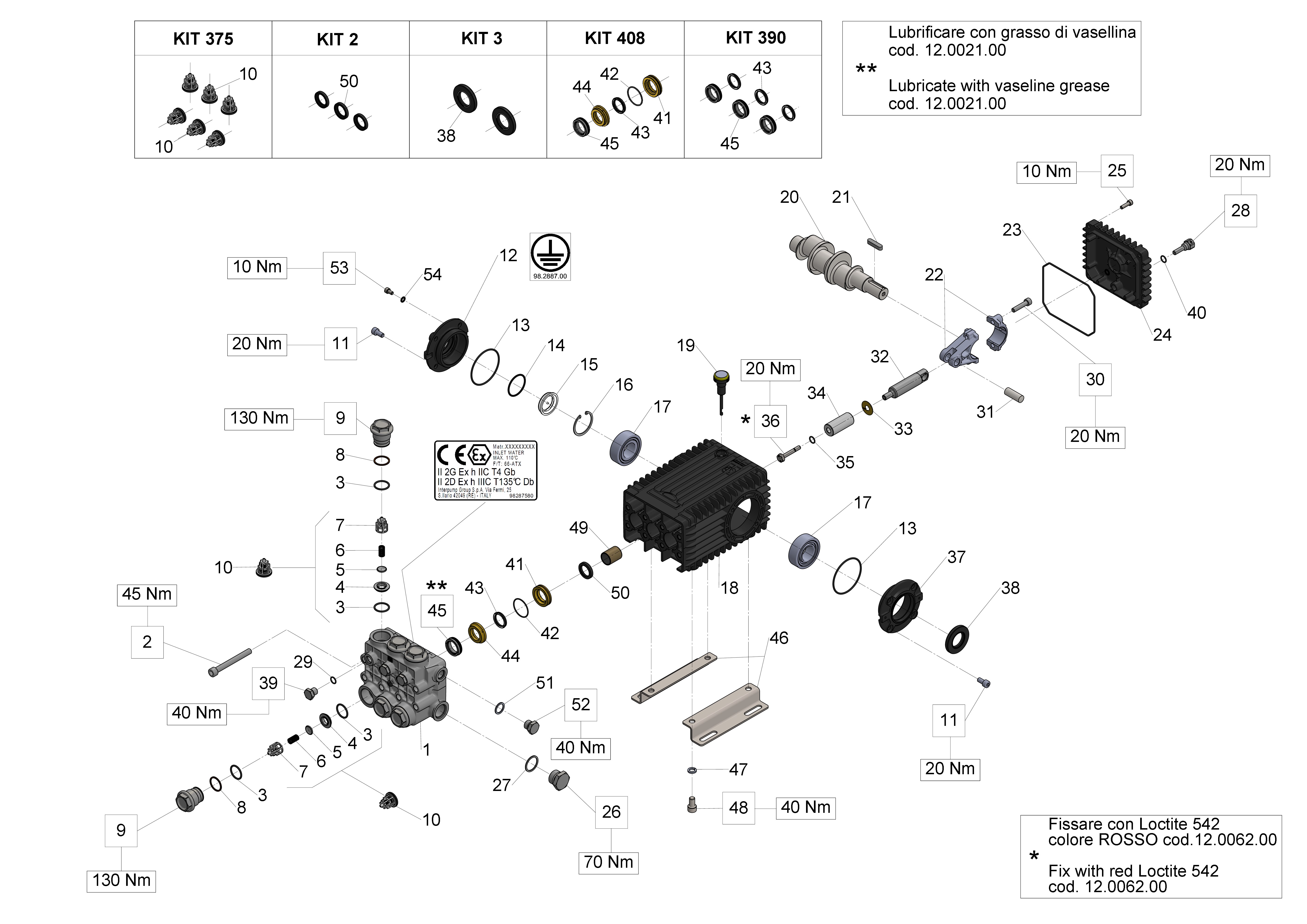

Exploded Diagram — Male shaft (key)View full size
VHT6650 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT2
KIT 2 OIL SEAL D. 22X32X5,5
34000201×1Available
View
KIT3
KIT 3 OIL SEAL D.30X55X7
34000301×1Available
View

Individual Components

PosCodeDescriptionQty
2
SCREW M10X90 UNI 5931 8.8
99380100×8Available
View
4
VALVE SEAT
36203366×6Available
View
5
SPHERICAL VALVE
36203476×6Available
View
6
SPRING Dm. 10x18.5
94738800×6Available
View
7
VALVE CAGE
36203551×6Available
View
8
ANTI-EXTR.RING D.24.7x29x1.5
90516500×6Available
View
11
SCREW M 8x16 UNI 5931
99303900×8Available
View
12
View
13
O-RING 67,95X2,62 (3268)
90391300×2Available
View
14
O-RING 39,34X2,62 (3156)
90387700×1Available
View
15
OIL SIGHT GLASS
70211801×1Available
View
16
CIRCLIP D.45 (ZJ45)
90075600×1Available
View
17
ROLLER BEARING NJ2206EC
91838000×2Available
View
18
CRANKCASE
66010022×1Available
View
19
OIL DIP-STICK G3/8X80
98210600×1Available
View
20
View
21
KEY 8(h9)X7X35 UNI 6604/A
91489200×1Available
View
22
CONNECTING ROD
66030001×3Available
View
23
O-RING D.133.02X 2,62(3525)
90392200×1Available
View
24
REAR COVER
66160022×1Available
View

Need multiple parts? Request a bundled quote

43 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official VHT6650 parts list — Industrial Pumps (High Temperature Versions Series 66 VHT)

Recommended Spare Parts

Accessories

KEY 8(h9)X7X35 UNI 6604/A

91489200

Spare Parts

PISTON GUIDE - S.S.

66050066

Spare Parts

SPRING Dm. 10x18.5

94738800

Spare Parts

O-RING 10,82X1,78 (2043)

90358500

Spare Parts

CRANKSHAFT C.19 - D. 24

66020035

Spare Parts

CONNECTING ROD-PIN D.14X39

97740500

Spare Parts

OIL DIP-STICK G3/8X80

98210600

Spare Parts

KIT 3 OIL SEAL D.30X55X7

34000301

Spare Parts

CRANKSHAFT C.19 - DUAL PTO

66021035

Accessories

WASHER D. 10X28X0.5

96710100

Spare Parts

ROLLER BEARING NJ2206EC

91838000

Spare Parts

INTERMEDIATE RING D.28

66220070
