Interpump PUMP TS1050 DX

SKU 3G-ITP-01067

Brand
Interpump
Item
PUMP TS1050 DX
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
50 L/min
Pressure
100 bar
Power
9.56 kW
Speed
1750 RPM
Weight
15 kg
Dimensions
317.5 mm
Power
13 HP
Flow (US)
13.21 GPM
Pressure
10 MPa
Pressure
1450 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

POMPA TS1050 DX by Interpump represents a reliable industrial pump solution engineered in Italy for demanding applications. This pump delivers 50 liters per minute at 100 bar pressure, powered by a 9.56 kW motor operating at 1750 RPM. Weighing just 15 kg with compact dimensions of 317.5 mm, it suits manufacturing, cleaning systems, and pressure applications requiring consistent performance. The robust construction handles continuous operation in industrial environments. Available from 3G Electric Singapore, the POMPA TS1050 DX (SKU: TS1050-000) provides cost-effective pumping solutions for businesses seeking quality European engineering with local support.

Spare Parts & Repair Kits

Official TS1050 parts list — 123 parts, 60 available in catalog

Official Parts List

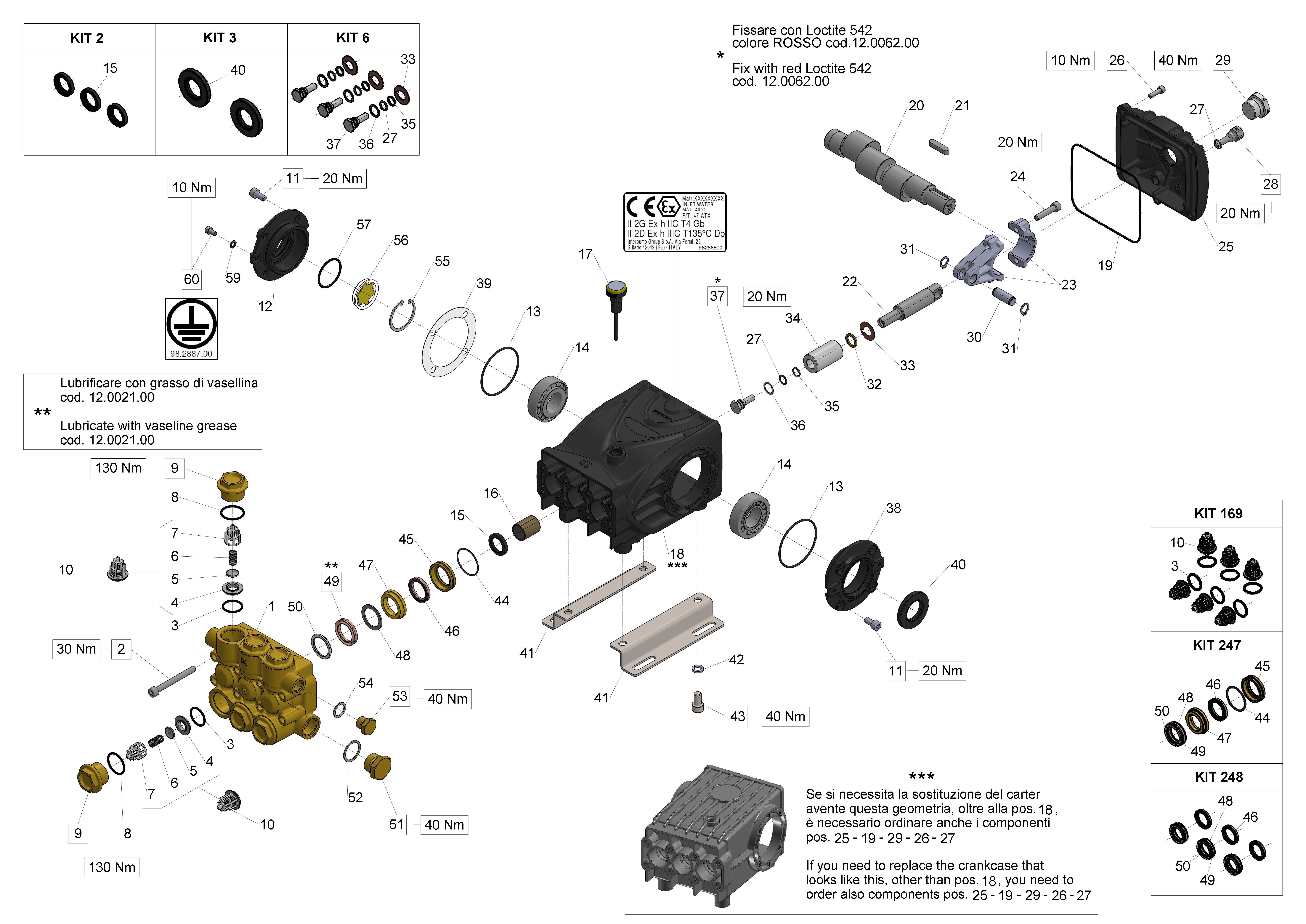

Exploded Diagram — Male shaft (key)View full size
TS1050 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT2
KIT 2 OIL SEAL D. 22X32X5,5
34000201×1Available
View
KIT3
KIT 3 OIL SEAL D.30X55X7
34000301×1Available
View
KIT6
KIT 6 PISTON BOLT
34000601×1Available
View
KIT169
KIT 169 INTAKE/DEL.VALVE (66)
34016901×1Available
View
KIT247
KIT 247 CPL. SEAL D.28
34024701×1Available
View
KIT248
KIT 248 PACKING D.28
34024801×1Available
View

Individual Components

PosCodeDescriptionQty
1
TESTATA POMPA D.28 TS1050
47123341×1Available
View
2
SCREW M8X75 UNI5931 12.9
99322000×8Available
View
3
O-RING 23,81X2,62 (132)
90385700×6Available
View
4
VALVE SEAT
36203366×6Available
View
5
SPHERICAL VALVE
36203476×6Available
View
6
SPRING Dm. 10x18.5
94738800×6Available
View
7
VALVE CAGE
36203551×6Available
View
9
PLUG M32X1,5X17,5
98230000×6Available
View
10
INTAKE/DEL.VALVE ASSY(66)
36712701×6Available
View
11
SCREW M 8x16 UNI 5931
99303900×8Available
View
12
CLOSED SIDE COVER (47-66)
47151122×1Available
View
13
O-RING 67,95X2,62 (3268)
90391300×2Available
View
14
TAPER BEARING
91837500×2Available
View
15
OIL SEAL 22x32x5
90162500×3Available
View
16
BUSHING 22X25X30
90912600×3Available
View
17
OIL DIP-STICK G3/8X80
98210600×1Available
View
18
CRANKCASE
47010822×1Available
View
19
O-RING D.133.02X 2,62(3525)
90392200×1Available
View
20
CRANKSHAFT C.16 S.p.f. U.S.
47021735×1Available
View
21
KEY 8(h9)X7X35 UNI 6604/A
91489200×1Available
View

Need multiple parts? Request a bundled quote

60 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official TS1050 parts list — Industrial Pumps (Series 47)

Recommended Spare Parts

Spare Parts

PISTON SCREW

47219566

Accessories

PLUG G3/4X16

98226800

Accessories

PLUG M32X1,5X17,5

98230000

Spare Parts

PACKING D.28X36X6.5 L.P.

90275300

Accessories

WASHER 14X28X0,5

96728600

Accessories

PLUG G3/8X13

98210000

Spare Parts

O-RING D.37.82X1.78 (2150)

90362000

Spare Parts

INTERMEDIATE RING D.28

66220070

Accessories

KEY 8(h9)X7X35 UNI 6604/A

91489200

Spare Parts

CRANKCASE

47010822

Spare Parts

SPRING Dm. 10x18.5

94738800

Accessories

CONNECTING-ROD PIN D.13X35,5

97738000
