Interpump PUMP TS1044 DX

Technical Documents

(1)
1 Technical Document Available
Sign in or create an account to download

Complete Solution

Need installation, maintenance, or a bundled quote?
Our engineers can help with product selection, system design, installation, and ongoing service — all from one partner.
InterpumpPumps & Compressors
Available

Interpump PUMP TS1044 DX

SKU 3G-ITP-01066

Brand
Interpump
Item
PUMP TS1044 DX
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
44 L/min
Pressure
100 bar
Power
8.38 kW
Speed
1750 RPM
Weight
15 kg
Dimensions
321 mm
Power
11.4 HP
Flow (US)
11.62 GPM
Pressure
10 MPa
Pressure
1450 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

POMPA TS1044 DX by Interpump represents a reliable industrial pump solution engineered in Italy for demanding applications. Delivering 44 liters per minute at 100 bar pressure, this unit combines 8.38 kW power with robust construction ideal for cleaning systems, pressure washers, and manufacturing processes. Operating at 1750 RPM with compact 321mm dimensions, the TS1044 DX accommodates space-constrained installations while maintaining consistent performance. Weighing 15 kg, this industrial pump integrates seamlessly into existing equipment setups. Available from 3G Electric Singapore, an Interpump distributor, the TS1044 DX provides proven durability and technical support for industrial operations across Singapore and the region.

Spare Parts & Repair Kits

Official TS1044 parts list — 123 parts, 60 available in catalog

Official Parts List

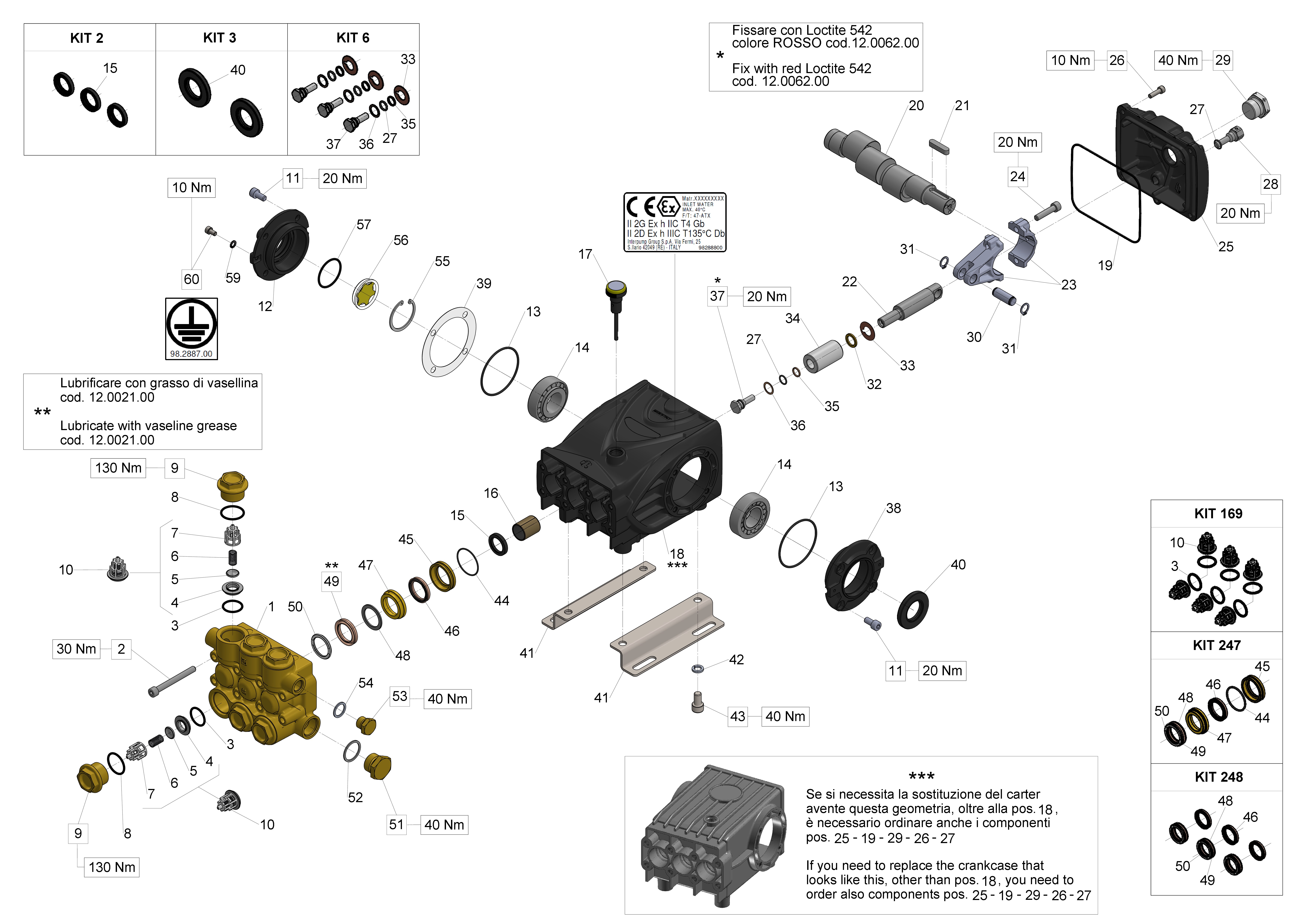

Exploded Diagram — Male shaft (key)View full size
TS1044 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT2
KIT 2 OIL SEAL D. 22X32X5,5
34000201×1Available
View
KIT3
KIT 3 OIL SEAL D.30X55X7
34000301×1Available
View
KIT6
KIT 6 PISTON BOLT
34000601×1Available
View
KIT169
KIT 169 INTAKE/DEL.VALVE (66)
34016901×1Available
View
KIT247
KIT 247 CPL. SEAL D.28
34024701×1Available
View
KIT248
KIT 248 PACKING D.28
34024801×1Available
View

Individual Components

PosCodeDescriptionQty
1
TESTATA POMPA D.28 TS1044
47123341×1Available
View
2
SCREW M8X75 UNI5931 12.9
99322000×8Available
View
3
O-RING 23,81X2,62 (132)
90385700×6Available
View
4
VALVE SEAT
36203366×6Available
View
5
SPHERICAL VALVE
36203476×6Available
View
6
SPRING Dm. 10x18.5
94738800×6Available
View
7
VALVE CAGE
36203551×6Available
View
9
PLUG M32X1,5X17,5
98230000×6Available
View
10
INTAKE/DEL.VALVE ASSY(66)
36712701×6Available
View
11
SCREW M 8x16 UNI 5931
99303900×8Available
View
12
CLOSED SIDE COVER (47-66)
47151122×1Available
View
13
O-RING 67,95X2,62 (3268)
90391300×2Available
View
14
TAPER BEARING
91837500×2Available
View
15
OIL SEAL 22x32x5
90162500×3Available
View
16
BUSHING 22X25X30
90912600×3Available
View
17
OIL DIP-STICK G3/8X80
98210600×1Available
View
18
CRANKCASE
47010822×1Available
View
19
O-RING D.133.02X 2,62(3525)
90392200×1Available
View
20
SHAFT C.14 SEMP. PdF USA
47022135×1Available
View
21
KEY 8(h9)X7X35 UNI 6604/A
91489200×1Available
View

Need multiple parts? Request a bundled quote

60 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official TS1044 parts list — Industrial Pumps (Series 47)

Recommended Spare Parts

Spare Parts

PISTON SCREW

47219566

Accessories

PLUG G3/4X16

98226800

Accessories

PLUG M32X1,5X17,5

98230000

Spare Parts

PACKING D.28X36X6.5 L.P.

90275300

Accessories

WASHER 14X28X0,5

96728600

Accessories

PLUG G3/8X13

98210000

Spare Parts

O-RING D.37.82X1.78 (2150)

90362000

Spare Parts

INTERMEDIATE RING D.28

66220070

Accessories

KEY 8(h9)X7X35 UNI 6604/A

91489200

Spare Parts

CRANKCASE

47010822

Spare Parts

SPRING Dm. 10x18.5

94738800

Accessories

CONNECTING-ROD PIN D.13X35,5

97738000
