Interpump PUMP SW7091H DX

Technical Documents

(1)
1 Technical Document Available
Sign in or create an account to download

Complete Solution

Need installation, maintenance, or a bundled quote?
Our engineers can help with product selection, system design, installation, and ongoing service — all from one partner.
InterpumpPumps & Compressors
Available

Interpump PUMP SW7091H DX

SKU 3G-ITP-00958

Brand
Interpump
Item
PUMP SW7091H DX
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
100 L/min
Pressure
100 bar
Power
29.1 kW
Speed
1450 RPM
Weight
43 kg
Dimensions
387 mm
Power
26 HP
Flow (US)
26.4 GPM
Pressure
10 MPa
Pressure
1450 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump's POMPA SW7091H DX is a robust industrial pump engineered for demanding high-pressure applications. Delivering 100 L/min flow at 100 bar pressure with 29.1 kW power output, this Italian-manufactured unit operates at 1450 RPM and weighs 43 kg, making it suitable for compact installations. The pump serves manufacturing, construction, and automotive sectors requiring reliable pressure systems. SKU SW7091H-000 is available from 3G Electric Singapore, your Interpump distributor providing quality industrial pump solutions.

Spare Parts & Repair Kits

Official SW7091H parts list — 85 parts, 42 available in catalog

Official Parts List

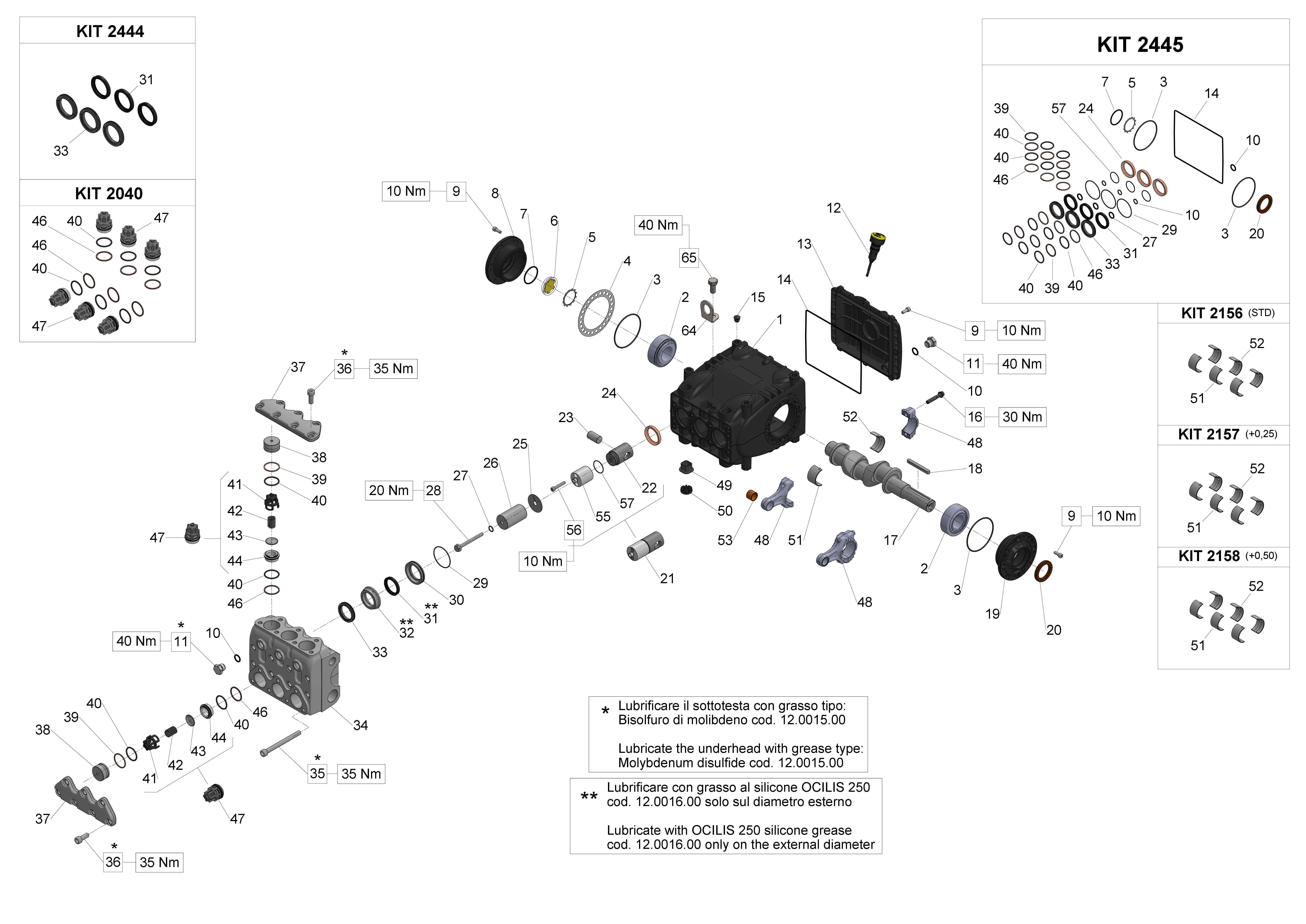

Exploded Diagram — Male shaft (key) - GASView full size
SW7091H — Male shaft (key) - GAS

Repair Kits — Order These for Routine Maintenance

KIT2156
KIT 2156*CONROD BUSHING
34215601×1Available
View
KIT2157
KIT 2157*CONROD BUSHINGS +0,25
34215701×1Available
View
KIT2158
KIT 2158*CONROD BUSHINGS +0,50
34215801×1Available
View

Individual Components

PosCodeDescriptionQty
1
CRANKCASE SW7091H
70010022×1Available
View
2
TAPER ROLLER BEARING 33207/Q
91847700×2Available
View
3
O-RING D. 80.6X2.62 (3318)
90391500×2Available
View
4
SHIM 0.25 MM.
70220381×1Available
View
4
SHIM 0.1 MM.
70220081×1Available
View
5
CIRCLIP D.45 (ZJ45)
90075600×1Available
View
6
OIL SIGHT GLASS
70211801×1Available
View
7
O-RING 39,34X2,62 (3156)
90387700×1Available
View
8
BEARING COVER (OIL GLASS SIDE)
70150122×1Available
View
10
O-RING 13,95X2,62 (3056)
90383300×4Available
View
11
PLUG G 3/8 X 13 STAINLESS
98210066×4Available
View
12
OIL DIPSTICK D.21,5X70
98211500×1Available
View
14
OR D.190.17X2.62 NBR 70SH
90394200×1Available
View
15
PLUG D. 15
98200500×1Available
View
16
CONN.ROD BOLT M8X1X42
99312300×6Available
View
18
KEY 8h9X7X70 UNI 6604/A
91490000×1Available
View
19
BEARING COVER (PTO SIDE)
70150022×1Available
View
20
OIL SEAL D.35X52X7
90166800×1Available
View
21
PISTON GUIDE ASSY
70606801×3Available
View
22
PISTON GUIDE T.N.
70050115×3Available
View

Need multiple parts? Request a bundled quote

42 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official SW7091H parts list — Industrial Pumps (Stainless Steel Versions Series 70 SW)

Recommended Spare Parts

Spare Parts

OIL SEAL D.35X52X7

90166800

Accessories

PLUG D. 15

98200500

Spare Parts

BEARING COVER (OIL GLASS SIDE)

70150122

Spare Parts

BEARING COVER (PTO SIDE)

70150022

Spare Parts

ANTI-EXTR.RING D.32.4X36.5X1.5

90518000

Spare Parts

OR D.190.17X2.62 NBR 70SH

90394200

Accessories

SCREW M 8x30 UNI 5931

99308400

Accessories

KEY 8h9X7X70 UNI 6604/A

91490000

Spare Parts

PISTON D.36X63

70040509

Accessories

GUDGEON PIN D.18X36

97742000

Spare Parts

CONN.ROD BOLT M8X1X42

99312300

Spare Parts

PISTON GUIDE ROD

70050266
