Interpump PUMP C3W2021 DX

Technical Documents

(1)
1 Technical Document Available
Sign in or create an account to download

Complete Solution

Need installation, maintenance, or a bundled quote?
Our engineers can help with product selection, system design, installation, and ongoing service — all from one partner.
InterpumpPumps & Compressors
Available

Interpump PUMP C3W2021 DX

SKU 3G-ITP-00129

Brand
Interpump
Item
PUMP C3W2021 DX
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
21 L/min
Pressure
200 bar
Power
8 kW
Speed
1450 RPM
Weight
9.5 kg
Dimensions
265 mm
Power
10.9 HP
Flow (US)
5.55 GPM
Pressure
20 MPa
Pressure
2900 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

POMPA C3W2021 DX by Interpump delivers reliable industrial pumping performance with 8 kW power and 21 L/min flow capacity. Operating at 1450 RPM, this Italian-engineered pump achieves 200 bar pressure rating, making it ideal for high-pressure cleaning, surface treatment, and hydraulic systems across manufacturing and construction sectors. Weighing just 9.5 kg with compact 265mm dimensions, it offers excellent portability without compromising durability. 3G Electric Singapore stocks this premium industrial pump, providing supply and technical support for businesses requiring dependable fluid transfer solutions.

Spare Parts & Repair Kits

Official C3W2021 parts list — 135 parts, 68 available in catalog

Official Parts List

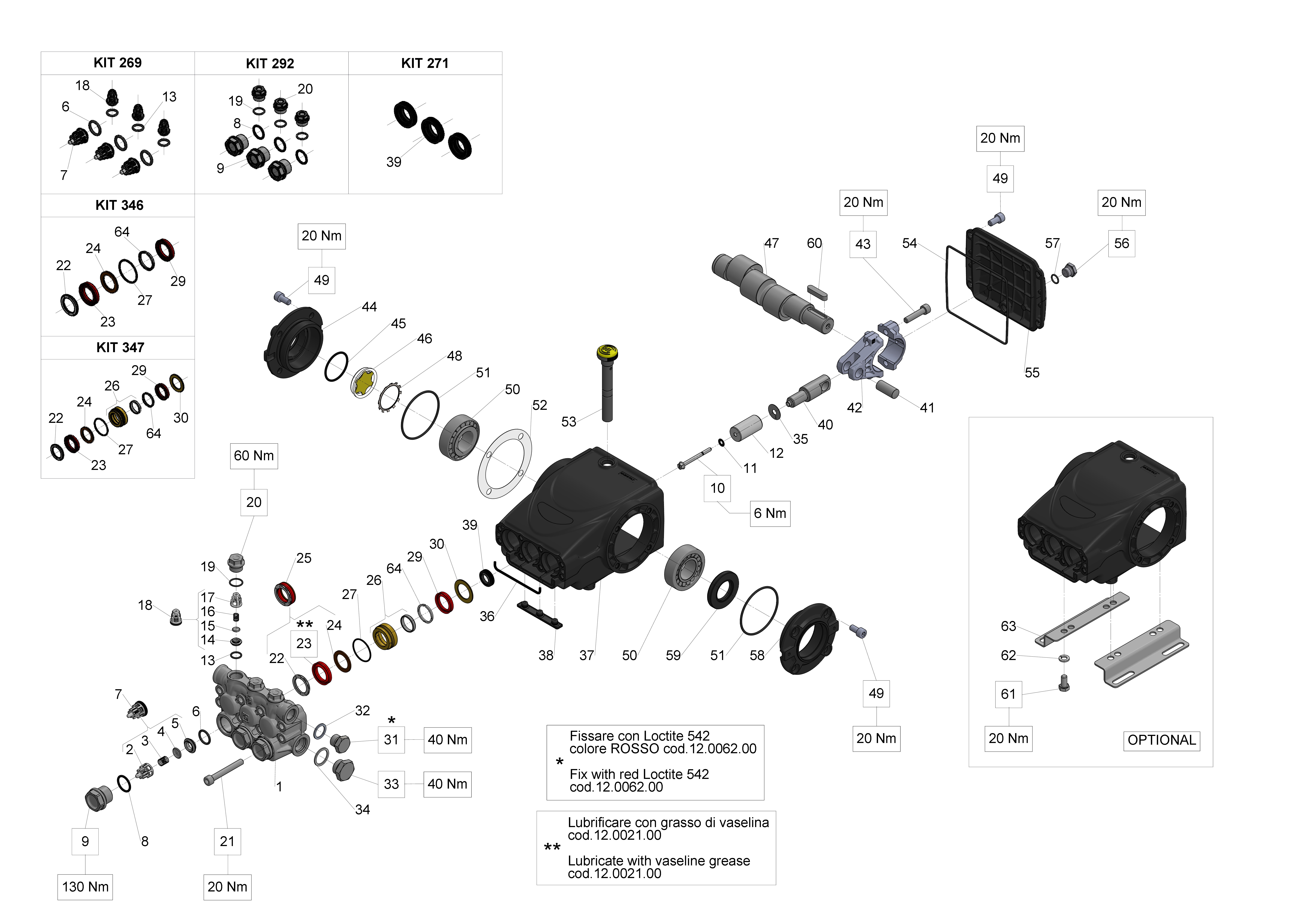

Exploded Diagram — Male shaft (key)View full size
C3W2021 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT269
KIT 269 INTAKE/DELIVERY VALVES
34026901×1Available
View
KIT271
View
KIT292
View
KIT346
KIT 346 PACKING D. 22 C3W
34034601×1Available
View
KIT347
KIT 347 CPL. SEAL D. 22 C3W
34034701×1Available
View

Individual Components

PosCodeDescriptionQty
2
VALVE CAGE
36202551×3Available
View
3
SPRING D. 9,4X14,8
94737600×3Available
View
4
VALVE PLATE
36200176×3Available
View
5
VALVE SEAT
36200366×3Available
View
6
O-RING 17,12X2,62 (3068)
90384100×3Available
View
7
INTAKE/DELIVERY VALVE
36711501×3Available
View
8
O-RING 20,29X2,62(3081)
90384700×3Available
View
9
VALVE CAP M24X1,5X17 NICKEL
98222500×3Available
View
10
SCREW M05X55 SPEC. A2-70
99169000×3Available
View
12
PISTON D.22X42
59040109×3Available
View
13
O-RING D. 12X2 (120-20)
90367400×3Available
View
14
VALVE SEAT
36211366×3Available
View
15
SPHERICAL VALVE
36211276×3Available
View
16
SPRING D.6.2x10.5 S.S.
94733300×3Available
View
17
VALVE CAGE
36211151×3Available
View
18
OUTLET VALVE
36719301×3Available
View
19
O-RING 15,60X1,78 (2062)
90359300×3Available
View
20
PLUG M18X1,5X10 D.23 (NICK.)
98213750×3Available
View

Need multiple parts? Request a bundled quote

68 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official C3W2021 parts list — Industrial Pumps (Car Wash Versions Series 59 C3W)

Recommended Spare Parts

Valves

VALVE PLATE

36200176

Spare Parts

CONNECTING ROD COMPLETE

59030001

Accessories

WASHER 21,5X27X1,5

96751400

Accessories

KEY 8(h9)X7X35 UNI 6604/A

91489200

Spare Parts

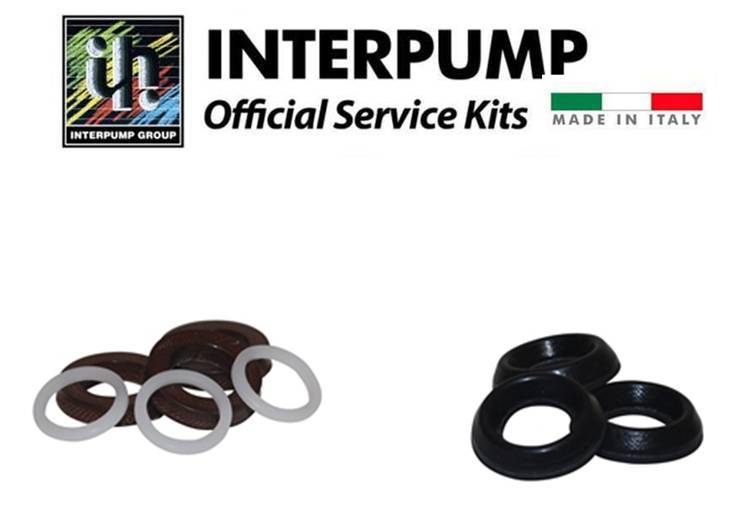

PACKING D. 22,0x30x6,5 LP CW

90271530

Valves

VALVE CAP M24X1,5X17 NICKEL

98222500

Spare Parts

SPONGE GASKET D.3X103

59211082

Spare Parts

KIT 269 INTAKE/DELIVERY VALVES

34026901

Spare Parts

O-RING 10,82X1,78 (2043)

90358500

Spare Parts

OIL SEAL D.15X24X5/7

90156550

Spare Parts

KIT 271 OIL SEAL D.15 58/59 SERIES

34027101

Spare Parts

ANTI-EXTR.RING D.22X32X2 66 SERIES

90514800
